RADIATOR

VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

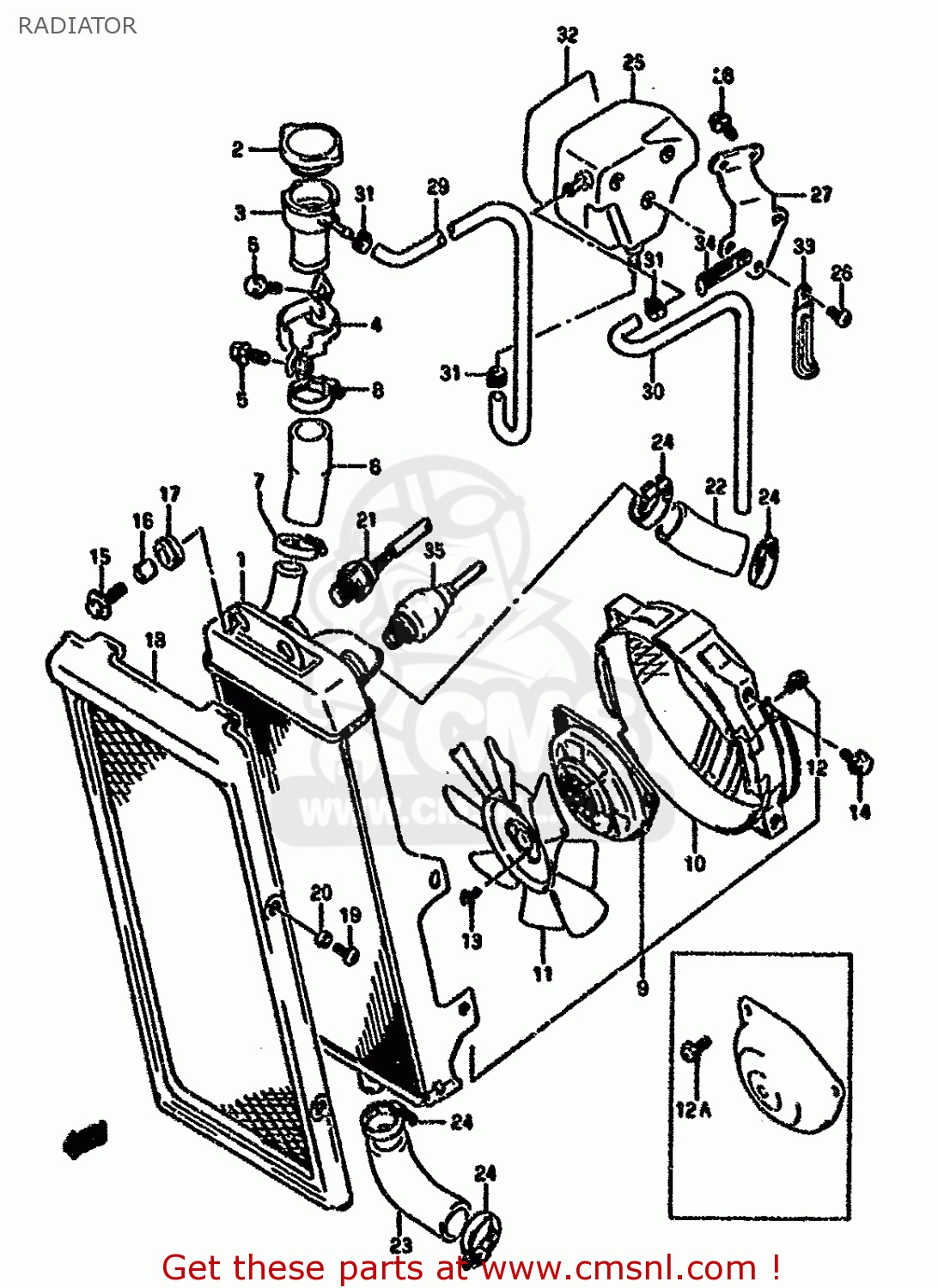

Radiator diagram VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

RADIATOR VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
RADIATOR VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
RADIATOR VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
1771045C00
ref: 1-1
MODEL L/M/N/P/R
RADIATOR ASSEMBLY,WATER
€ 761.00
1-2
1771045C10
ref: 1-2
MODEL T
RADIATOR ASSY,WATER
€ 761.00
2
1773012C01
ref: 2
-17730-20930
CAP,RADIATOR
1773012C01
€ 40.00
3
1779145C00
ref: 3
CONDUCTION,RADIATOR
1779145C00
€ 28.50
4
1779345C00
ref: 4
BRACKET,CONDUCTION
€ 8.50
5-1
0151706164
ref: 5-1
MODEL L/M/N/P
BOLT
€ 2.50
5-2
0155006163
ref: 5-2
MODEL R/T
BOLT
0155006163
€ 2.50
6
1785945C00
ref: 6
HOSE,CONDUCTION
€ 9.00
7-1
0940230502
ref: 7-1
MODEL L/M/N/P/R
CLAMP
€ 11.50
7-2
0940232511
ref: 7-2
MODEL T
CLAMP
0940232511
€ 11.50
8-1
0940232502
ref: 8-1
MODEL L/M/N/P/R
CLAMP
0940232502
€ 11.50
8-2
0940238511
ref: 8-2
MODEL T
CLAMP
0940238511
€ 10.50
9
1780045C01
ref: 9
FAN ASSEMBLY,RADIATOR
€ 474.50
10
1776045C01
ref: 10
SHROUD
€ 78.50
11
1782045C00
ref: 11
FAN
1782045C00
€ 51.50
12
0211275103
ref: 12
MODEL L/M
SCREW
€ 1.50
12A
0211215083
ref: 12A
MODEL N/P/R/T,-17801
SCREW
€ 2.00
13
0211204063
ref: 13
-17801-05A00
SCREW 4X6
0211204063
€ 2.00
14-1
0155006107
ref: 14-1
MODEL L/M/N/P
BOLT
0155006107
€ 2.50
14-2
0155006103
ref: 14-2
MODEL R/T
BOLT
0155006103
€ 2.50
15
0911606131
ref: 15
BOLT(6X25)
0911606131
€ 2.00
16
0918006030
ref: 16
SPACER (6.8X10X10)
0918006030
€ 2.00
17
0932010015
ref: 17
CUSHION
0932010015
€ 2.50
18
1776145C00
ref: 18
COVER COMP,RADIATOR
€ 73.50
19-1
0913906078
ref: 19-1
MODEL L
SCREW(6X10)
0913906078
€ 3.00
19-2
0913906055
ref: 19-2
MODEL M/N
SCREW(6X10)
0913906055
€ 2.50
19-3
0214206107
ref: 19-3
MODEL P
SCREW
0214206107
€ 2.00
19-4
0214206103
ref: 19-4
MODEL R/T
SCREW 6X10
0214206103
€ 2.00
20
0918006102
ref: 20
SPACER (6.4X9X3.5)
0918006102
€ 1.50
21
1768045C00
ref: 21
SWITCH,RADIATOR FAN
1768045C00
€ 80.00
22
1785145C00
ref: 22
HOSE,RADIATOR INLET
1785145C00
€ 9.50
23
1785245C00
ref: 23
HOSE,RADIATOR OUT
1785245C00
€ 11.50
24-1
0940230502
ref: 24-1
MODEL L/M/N/P/R
CLAMP
€ 11.50
24-2
0940232511
ref: 24-2
MODEL T
CLAMP
0940232511
€ 11.50
25-1
1791145C00
ref: 25-1
MODEL L/M/N/P
TANK,RESERVOIR
€ 88.50
25-2
1791145C10
ref: 25-2
MODEL R/T
TANK,RESERVOIR
1791145C10
€ 88.50
26
0214206083
ref: 26
SCREW
0214206083
€ 1.50
27
1792045C00
ref: 27
BRACKET,RESERVOIR TANK
1792045C00
€ 6.00
28-1
0151706204
ref: 28-1
MODEL L/M/N/P
BOLT 6X20
0151706204
€ 2.50
28-2
0155006203
ref: 28-2
MODEL R
BOLT
0155006203
€ 2.50
28-3
0155006163
ref: 28-3
MODEL T
BOLT
0155006163
€ 2.50
29
1798145C00
ref: 29
HOSE,RESERVOIR TANK INLET
€ 19.50
30-1
1798217E00
ref: 30-1
MODEL L/M/N/P-17982-
HOSE,RESERVOIR TANK OVERFLOW
€ 19.50
30-2
1798121E00
ref: 30-2
MODEL R/T
HOSE,RESERVOIR TANK INLET
€ 19.50
31-1
0940108407
ref: 31-1
MODEL L
CLIP
€ 3.00
31-2
0940108405
ref: 31-2
MODEL M/N/P/R
CLIP
€ 2.50
31-3
0940108411
ref: 31-3
MODEL T
CLIP
0940108411
€ 3.00
32
1793045C00
ref: 32
EMBLEM,RESERVOIR TANK
1793045C00
€ 27.50
33-1
0940406415
ref: 33-1
MODEL L/M/N/P/R-0940
CLAMP
€ 3.00
33-2
0940406431
ref: 33-2
MODEL T
CLAMP(L:65)
0940406431
€ 2.50
34-1
0940406402
ref: 34-1
MODEL L/M/N/P/R
CLAMP
€ 2.50
34-2
0940406429
ref: 34-2
MODEL T
CLAMP(L:45)
€ 2.50
35-1
3485003D00
ref: 35-1
MODEL L/M/N/P/R
SWITCH ASSY,WATER TEMP
3485003D00
€ 85.00
35-2
3485010D00
ref: 35-2
MODEL T
SWITCH ASSY,WATER TEMP
3485010D00
€ 103.00
