CRANKCASE COVER
VX800 1990 (L) USA (E03)

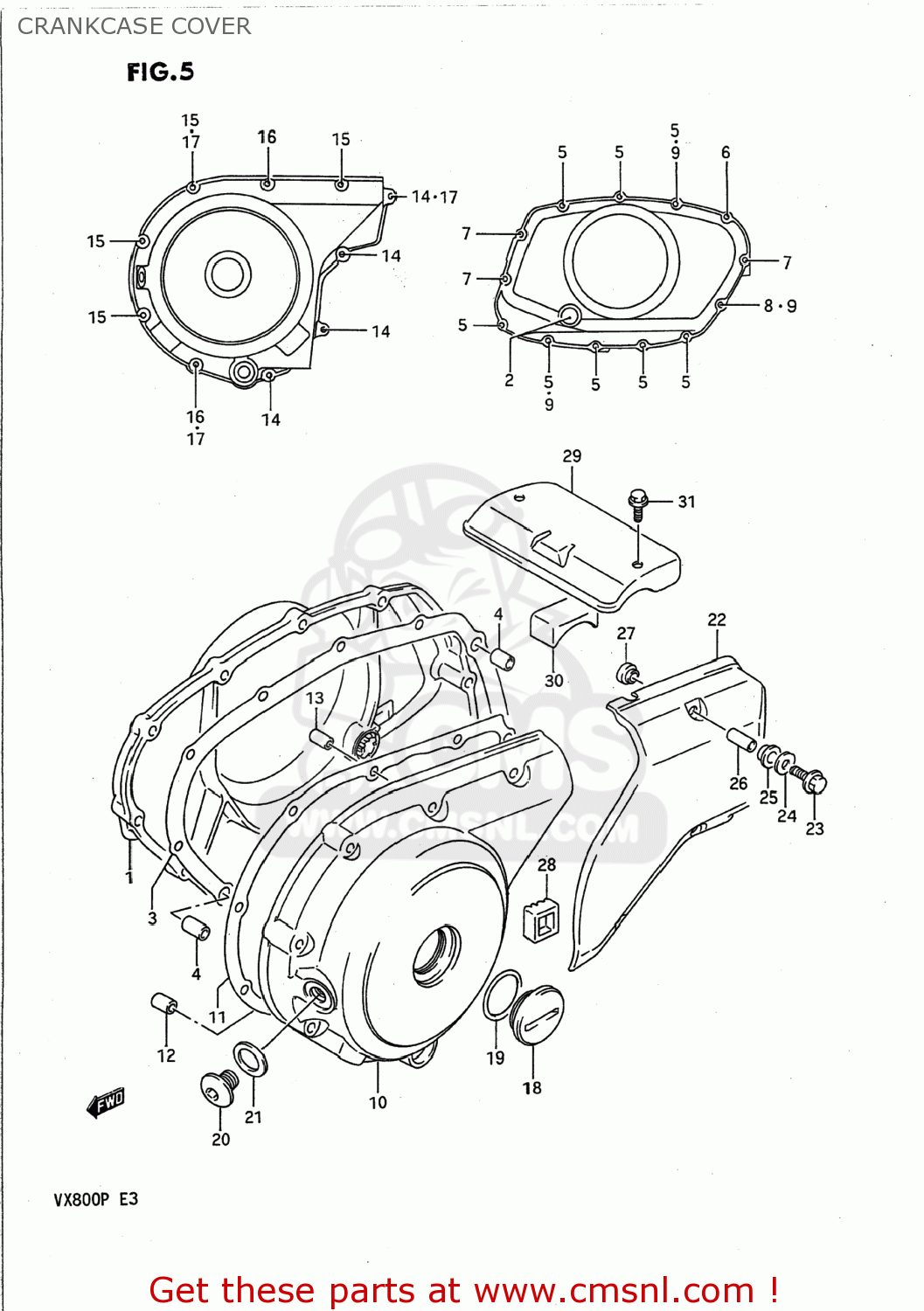

Crankcase cover diagram VX800 1990 (L) USA (E03)
CRANKCASE COVER VX800 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134045C01
ref: 1
11340-45C10
COVER,CLUTCH
€ 242.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3-1
1148238A00
ref: 3-1
11482-41F00
GASKET,CLUTCH COVER (NAS)
€ 15.50
3-2
1148238A00H17
ref: 3-2
11482-41F00
GASKET,CLUTCH COVER (NAS)
€ 15.50
4
0421109189
ref: 4
PIN
€ 2.00
5
0154706307
ref: 5
BOLT
€ 2.50
6
0154706357
ref: 6
BOLT
€ 2.50
7
0154706457
ref: 7
BOLT
€ 2.50
8
0154706607
ref: 8
BOLT
€ 2.50
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
€ 2.00
10
1135138A10
ref: 10
11351-38A11
COVER
€ 140.50
11-1
1148338A00
ref: 11-1
11483-41F00
GASKET,MAGNETO COVER (NAS)
€ 11.50
11-2
1148338A00H17
ref: 11-2
11483-41F00
GASKET,GENERATOR COVER (NAS)
€ 11.50
12
0920611005
ref: 12
09206-11017
PIN (11X20)(SUS)
€ 6.50
13
0421109189
ref: 13
PIN
€ 2.00
14
0154706307
ref: 14
BOLT
€ 2.50
15
0154706407
ref: 15
BOLT
€ 2.50
16
0154706507
ref: 16
BOLT
€ 2.50
17
0916806023
ref: 17
GASKET(5.8X13X1.2) (NAS)
€ 2.00
18
0925936014
ref: 18
09259-36016-20H
PLUG
€ 10.50
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
€ 2.50
20
0924814005
ref: 20
PLUG,14X12
€ 5.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22
1136145C00
ref: 22
11361-38A50
COVER,SPROCKET
€ 134.00
23
0154706457
ref: 23
BOLT
€ 2.50
24
0916006097
ref: 24
09160-06125
WASHER
€ 2.00
25
0916109006
ref: 25
WASHER(8.7X15X2.1)
€ 2.50
26
0918006160
ref: 26
09180-06278
SPACER
€ 3.50
27
0916109005
ref: 27
WASHER(8.7X16X5)
€ 2.50
28
1136938A00
ref: 28
DAMPER,SECONDARY COVER
€ 7.50
29
3121038A00
ref: 29
31210-38A01
COVER,STARTER MOTOR
€ 22.00
30
3121238A00
ref: 30
DAMPER,MOTOR COVER
€ 4.50
31
0154705087
ref: 31
BOLT
€ 2.00
up
