OIL PUMP - FUEL PUMP
VX800 1990 (L) USA (E03)

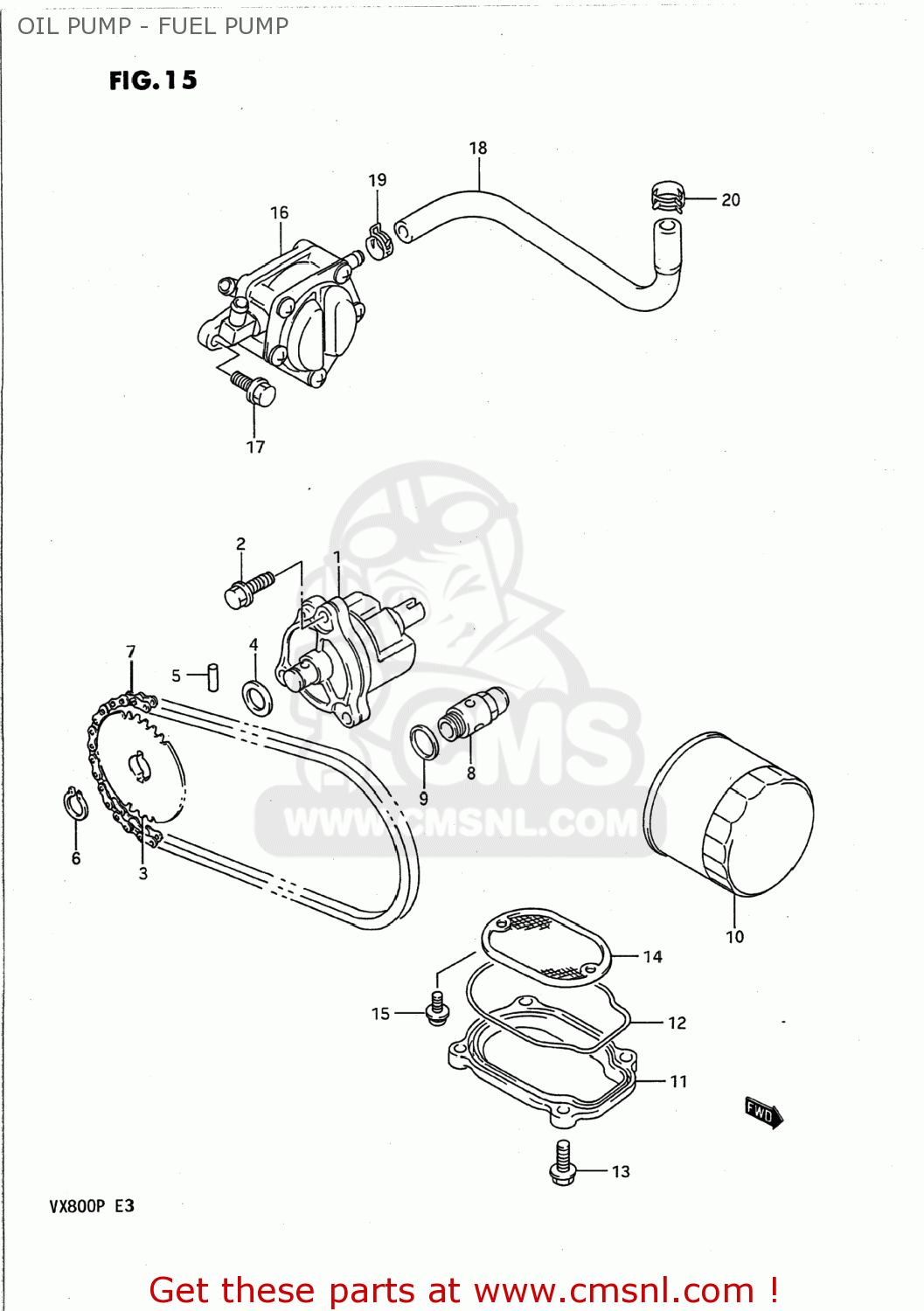

Oil pump - fuel pump diagram VX800 1990 (L) USA (E03)
OIL PUMP - FUEL PUMP VX800 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640038A01
ref: 1
PUMP ASSY,ENGINE OIL
€ 148.00
2
0151706257
ref: 2
01550-06257
BOLT 6X25
€ 2.50
3
1633138A00
ref: 3
SPROCKET,OIL PUMP DRIVEN
€ 21.00
4
0822112205
ref: 4
SHIM
€ 1.50
5
0926105006
ref: 5
PIN(5X18)
€ 1.50
6
0833131126
ref: 6
08331-3112A
CIRCLIP,12 MM
€ 2.00
7
1631038A00
ref: 7
CHAIN,OIL PUMP DRIVE
€ 19.50
8
1644024A01
ref: 8
VALVE ASSY,OIL RELIEF
€ 52.00
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
€ 2.00
10-1
1651006B00
ref: 10-1
16510-07J00
FILTER,OIL
€ 12.50
10-2
1651006B01
ref: 10-2
16510-07J00
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
11
1652338A00
ref: 11
CAP,OIL STRAINER
€ 19.50
12
1652838A00
ref: 12
O RING,OIL STRAINER CAP
€ 8.00
13
0151706207
ref: 13
01550-06207
BOLT 6X20
€ 2.50
14
1652038A00
ref: 14
STRAINER,ENGINE OIL
€ 7.50
15
0211275126
ref: 15
02112-7512A
SCREW
€ 2.50
16-1
1510045C00
ref: 16-1
15100-45C10
PUMP ASSEMBLY,FUEL
€ 142.50
16-2
1510045C10
ref: 16-2
PUMP ASSY,FUEL
€ 142.50
17
0151706164
ref: 17
01550-0616A
BOLT
€ 2.50
18
0935954111600
ref: 18
HOSE(5.4X11.4X600)
€ 22.00
18
0935954111600
ref: 18
HOSE(5.4X11.4X600)
€ 22.00
19
0940110409
ref: 19
CLIP
€ 2.50
20
0940112406
ref: 20
09401-11415
CLAMP
€ 2.50
