CYLINDER HEAD (REAR)
VX800 1990 (L) USA (E03)

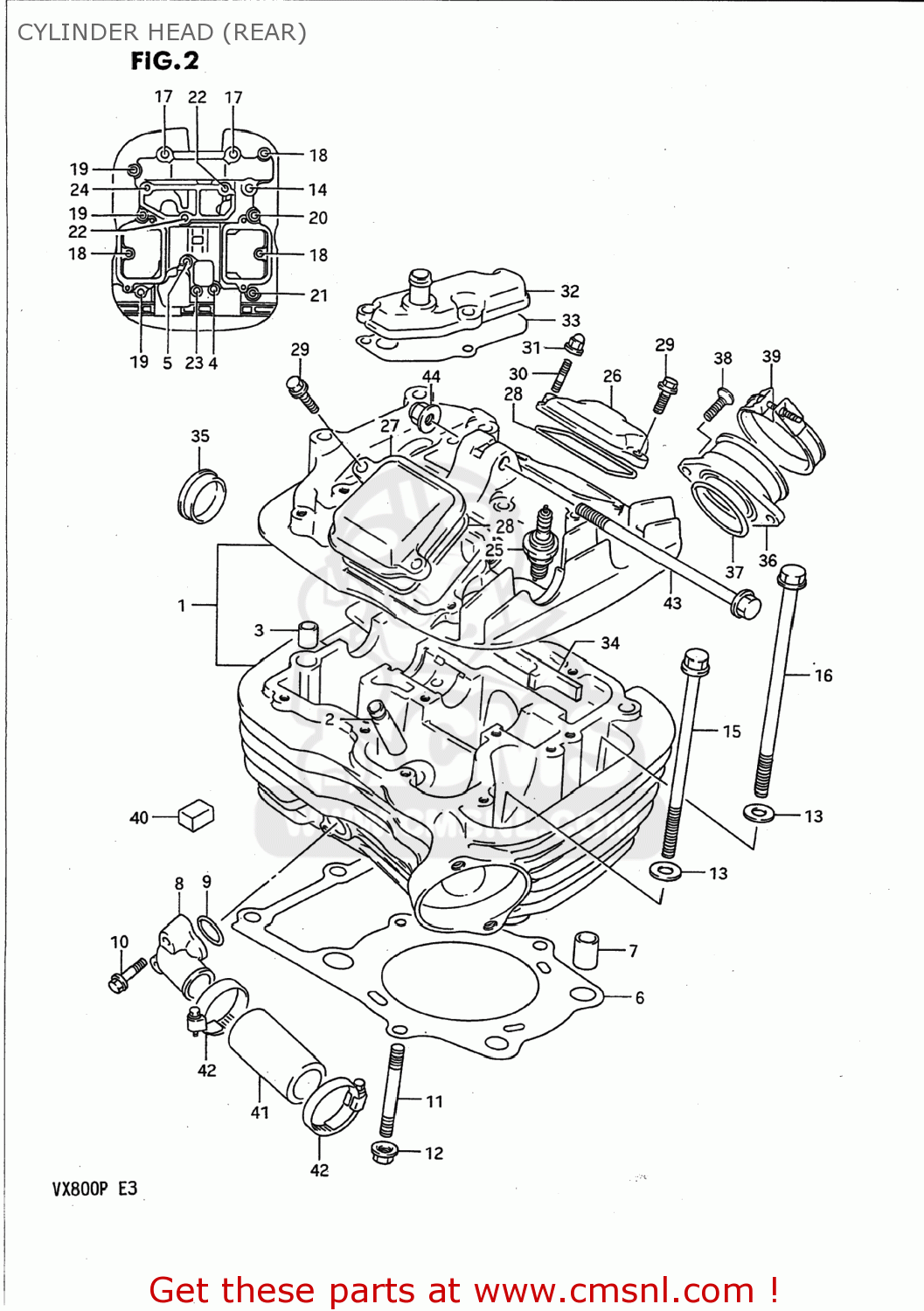

Cylinder head (rear) diagram VX800 1990 (L) USA (E03)
CYLINDER HEAD (REAR) VX800 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110345C00
ref: 1
HEAD ASSEMBLY,CYLINDER,REAR
€ 712.00
2
1111538A71
ref: 2
11115-41F70
GUIDE,VALVE
€ 18.50
3
0920611011
ref: 3
09206-11004
PIN(11X14)
€ 6.00
4
0910306101
ref: 4
BOLT(6X50)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
€ 2.50
6
1114245C00
ref: 6
GASKET,CYLINDER HEAD RR (NAS)
€ 54.00
7
0920613001
ref: 7
04211-13189
PIN
€ 2.50
8-1
1116945C00
ref: 8-1
11169-45C10
UNION,CYLINDER HEAD WATER
€ 28.50
8-2
1116945C10
ref: 8-2
UNION,CYLINDER HEAD WATER
€ 28.50
9
0928018004
ref: 9
O RING(D:2.4,ID:17.8)
€ 5.50
10
0154706257
ref: 10
BOLT
€ 2.50
11
0910808144
ref: 11
BOLT,STUD
€ 4.50
12
0831616088
ref: 12
08316-10087
NUT
€ 2.50
13
0916010039
ref: 13
WASHER(10.5X22X2.3)
€ 2.50
14
0910308040
ref: 14
BOLT(8X140)
€ 4.00
15
0910310133
ref: 15
BOLT(10X155)
€ 7.50
16
0910310134
ref: 16
BOLT(10X165)
€ 7.50
17
0910308246
ref: 17
09103-08501
BOLT
€ 9.00
18
0151706257
ref: 18
01550-06257
BOLT 6X25
€ 2.50
19
0151706307
ref: 19
01550-06307
BOLT
€ 2.00
20
0712006308
ref: 20
07120-06307
BOLT
€ 2.50
21
0151706408
ref: 21
01550-06407
BOLT
€ 2.50
22
0910306102
ref: 22
BOLT(6X55)
€ 2.50
23
0910306101
ref: 23
BOLT(6X50)
€ 2.00
24
0151706207
ref: 24
01550-06207
BOLT 6X20
€ 2.50
25-1
0948200334
ref: 25-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
25-2
0948200335111
ref: 25-2
09482-00335
SPARK PLUG X24EPR-U9
€ 4.00
25-3
0948200354
ref: 25-3
PLUG,SPARK(DPR7EA-9)
€ 4.00
25-4
0948200355111
ref: 25-4
09482-00354
SPARK PLUG X22EPR-U9
€ 4.00
25-5
0948200330
ref: 25-5
PLUG,SPARK(DPR9EA-9)
€ 4.00
25-6
0948200331111
ref: 25-6
09482-00331
SPARK PLUG X27EPR-U9
€ 4.00
26-1
1117545C00
ref: 26-1
11175-45C01
CAP,INSPECTION,INTAKE
€ 10.00
26-2
1117538A10
ref: 26-2
11175-38A11
CAP,INSP.INT
€ 14.50
27-1
1117645C00
ref: 27-1
11176-45C01
CAP,INSPECTION,EXHAUST
€ 14.50
27-2
1117638A10
ref: 27-2
11176-38A11
CAP,INSPECTION,EXHAUST
€ 14.50
28
1117738A00
ref: 28
GASKET,INSPECTION CAP (NAS)
€ 5.00
29
0154706207
ref: 29
BOLT
€ 2.50
30
0142106168
ref: 30
01421-0616A
STUD 6X16
€ 2.00
31
0831321067
ref: 31
08313-20067
NUT
€ 2.00
32-1
1118045C00
ref: 32-1
11180-45C10
COVER,BREATHER
€ 22.50
32-2
1118045C10
ref: 32-2
COVER,BREATHER
€ 22.50
33-1
1118738A02
ref: 33-1
11187-38A02-H17
GASKET,BREATHER COVER (NAS)
€ 12.00
33-2
1118738A02H17
ref: 33-2
GASKET,BREATHER COVER (NAS)
€ 12.00
34
1117938A00
ref: 34
PLATE,HEAD COVER RR
€ 7.50
35
0924130004
ref: 35
PLUG(OD:30)
€ 6.50
36
1312045C00
ref: 36
13102-45C00
PIPE COMP,INTAKE,REAR
€ 40.50
37
0928040003
ref: 37
09280-40010
O-RING (D:2.4 ID:39.7)
€ 3.50
38
0212206205
ref: 38
02122-0620A
SCREW
€ 2.00
39
1317005A00
ref: 39
09402-52501
CLAMP,PIPE
€ 9.00
40
1115238A00
ref: 40
PAD
€ 3.50
41
1785438A00
ref: 41
HOSE,CYLINDER HEAD JOINT
€ 8.50
42
0940225502
ref: 42
09402-28511
CLAMP
€ 8.50
43
0910308212
ref: 43
BOLT(8X135)
€ 7.00
44
0915908064
ref: 44
09159-08049
NUT (8MM)
€ 7.00
