OIL COOLER

VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

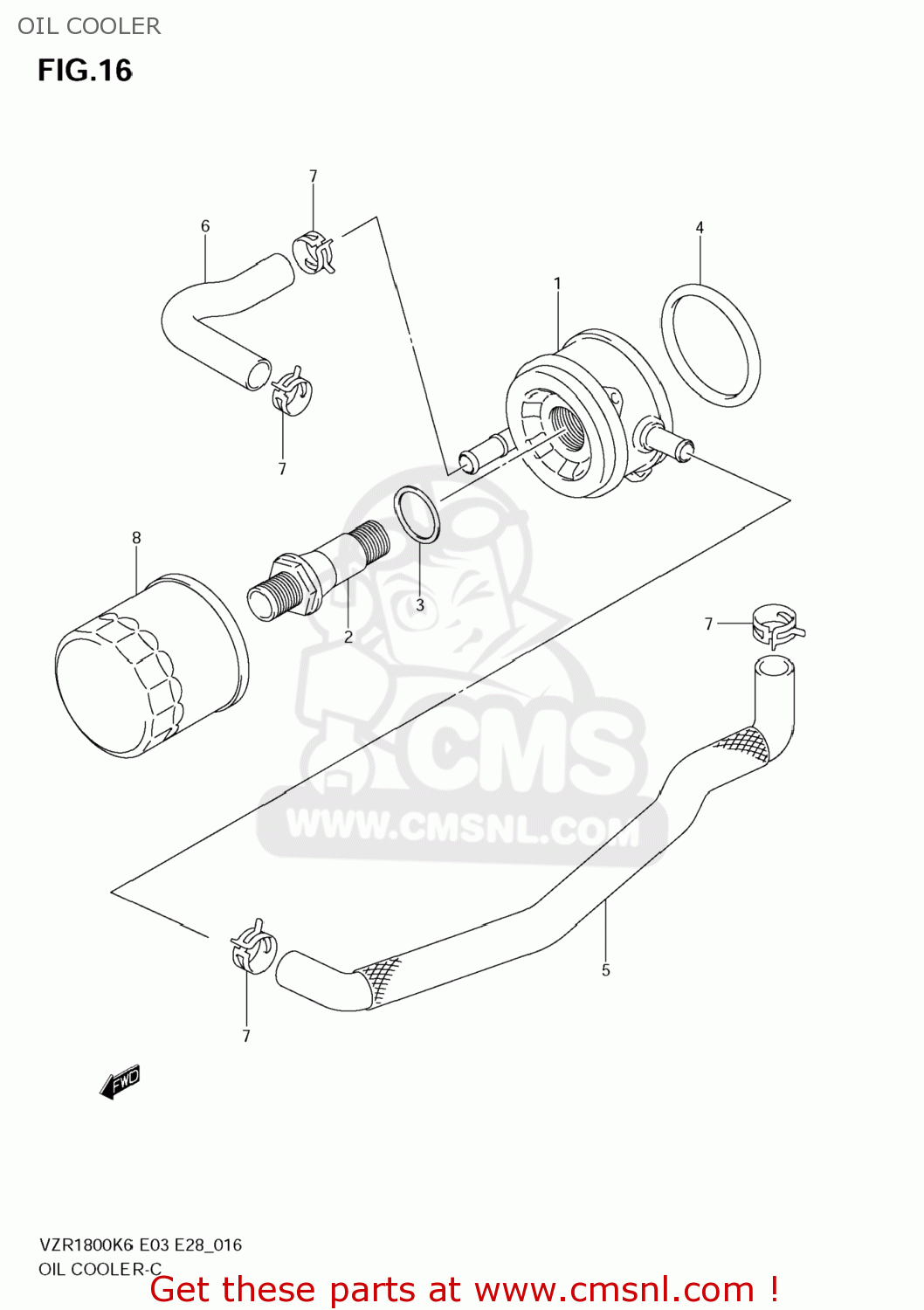

Oil cooler diagram VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1660048G00
ref: 1

COOLER ASSY,OIL

€ 541.50

1659149X00
ref: 2

BOLT,OIL COOLER UNION

€ 31.50

0918125160
ref: 3

SHIM(25X34X0.7)

€ 3.00

0928064003
ref: 4

O RING(D:3.1,ID:63.9)

€ 5.00

1646148G00
ref: 5

HOSE,OIL COOLER WATER INLET

€ 25.00

1647148G00
ref: 6

HOSE,OIL COOLER WATER OUTLET

€ 10.50

0940116407
ref: 7

CLIP

€ 2.50

8-1

1651003G00X07
ref: 8-1
16510-07J00

FILTER ASSY,EN

€ 12.50

8-2

1651022H00
ref: 8-2

FILTER ASSY,EN

€ 33.50
