SEAT TAIL BOX

VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

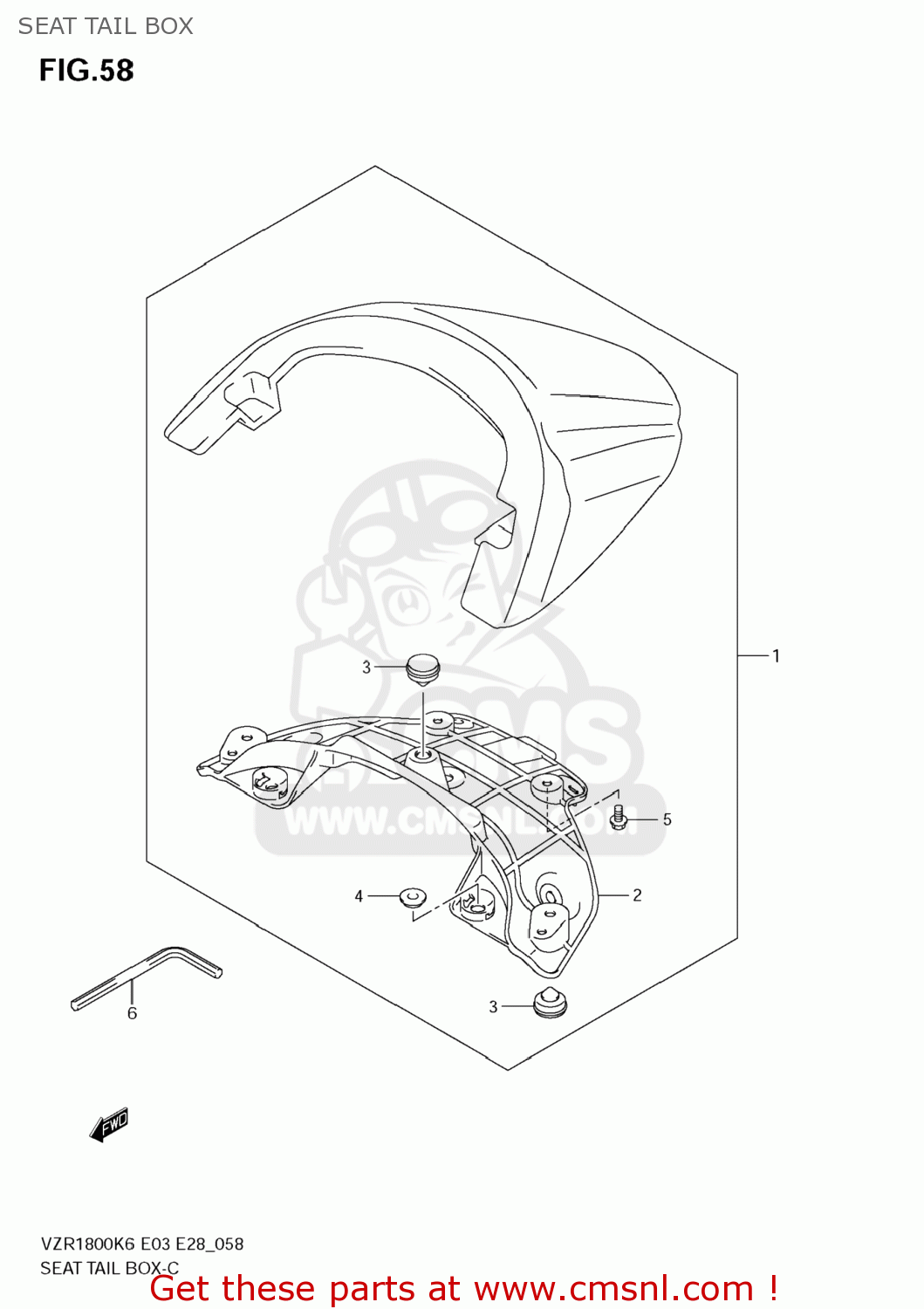

Seat tail box diagram VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

SEAT TAIL BOX VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

SEAT TAIL BOX VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4555048G00YAY
ref: 1-1

BOX,SEAT TAIL

€ 177.50

1-10

4555048G00YMD
ref: 1-10

BOX,SEAT TAIL(SILVER)

€ 171.00

1-11

4555048G00YMK
ref: 1-11

BOX,SEAT TAIL(RED)

€ 173.00

1-12

4550048G50LR5
ref: 1-12

BOX ASSY,SEAT TAIL

€ 321.50

1-2

4555048G00YD8
ref: 1-2

BOX,SEAT TAIL

€ 165.50

1-3

4555048G00YLD
ref: 1-3

BOX,SEAT TAIL(BLUE)

€ 172.00

1-4

4555048G00YC3
ref: 1-4

BOX,SEAT TAIL

€ 165.50

1-5

4555048G00YHL
ref: 1-5

BOX,SEAT TAIL

€ 165.50

1-6

4550048G50CWH
ref: 1-6

BOX ASSY,SEAT TAIL

€ 482.50

1-7

4555048G00YHG
ref: 1-7

BOX,SEAT TAIL(GRAY)

€ 173.00

1-8

4555048G00YME
ref: 1-8

BOX,SEAT TAIL(ORANGE)

€ 171.00

1-9

4550048G50FGM
ref: 1-9

BOX ASSY,SEAT TAIL

€ 296.50

2

4555248G00
ref: 2

BOTTOM,SEAT TAIL BOX

€ 12.50

3

4514816700
ref: 3
09321-10002

CUSHION,FR

€ 2.00

4

4555348G00
ref: 4

COLLAR

€ 4.00

5

015500612B
ref: 5

BOLT

€ 2.50

6

0981600059
ref: 6

HEXAGON SPANNER,5

€ 5.50
