THROTTLE BODY

VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

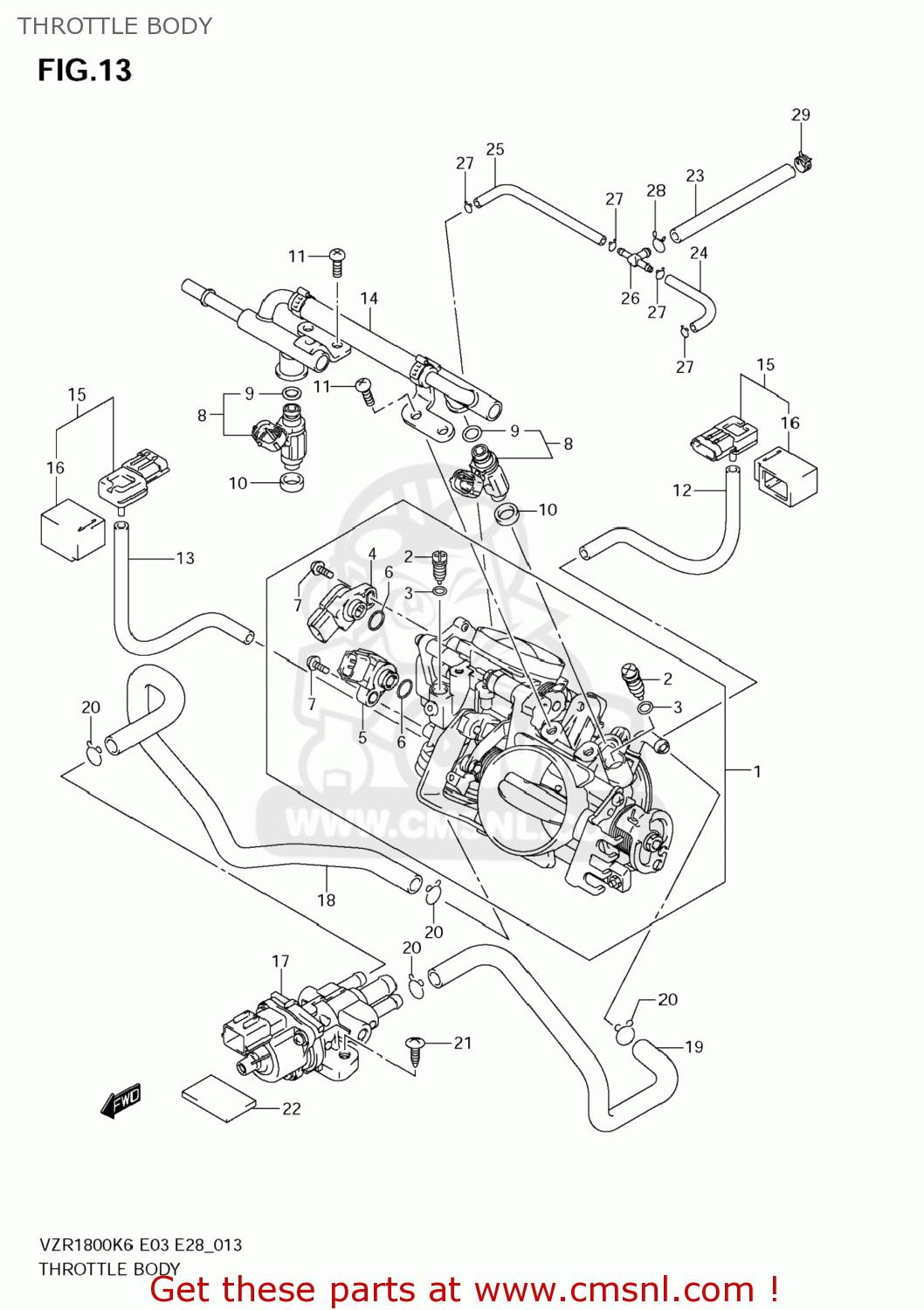

Throttle body diagram VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

THROTTLE BODY VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

THROTTLE BODY VZR1800 BOULEVARD M109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

1340548G00
ref: 1-1

BODY ASSY,THROTTLE

€ 1,510.50

1-2

1340548G10
ref: 1-2

BODY, THROTTLE

€ 0.00

1-3

1340548G20
ref: 1-3

BODY ASSY,THROTTLE

€ 1,110.00

1-4

1340548G30
ref: 1-4

BODY ASSY,THROTTLE

€ 947.50

2

1326948G00
ref: 2

ADJUSTER

€ 6.00

3

1352129FA0
ref: 3

O RING

€ 2.50

4

1358029G00
ref: 4

SENSOR ASSY

€ 101.50

5

1358048G00
ref: 5

SENSOR ASSY

€ 131.00

6

1357529G00
ref: 6

O RING

€ 3.00

7

1360502F00
ref: 7

SCREW

€ 3.00

8

1571048G00
ref: 8

INJECTOR ASSY

€ 210.50

9

1571716G00
ref: 9

O RING

€ 9.50

10

1572229G00
ref: 10

SEAL

€ 9.50

11

1360206148
ref: 11

SCREW

€ 2.50

12

1368348G00
ref: 12

HOSE

€ 17.00

13

1368348G10
ref: 13

HOSE

€ 20.50

14

1573048G01
ref: 14

PIPE ASSY,DELIVERY

€ 190.50

15

1563029G10
ref: 15

SENSOR,AIR PRESSURE

€ 180.50

16

1562529G00
ref: 16

COVER

€ 7.50

17

1811748G00
ref: 17

VALVE,ISC

€ 260.50

18

1369748G00
ref: 18

HOSE,ISC VALVE,R

€ 10.50

19

1369848G00
ref: 19

HOSE,ISC VALVE,L

€ 9.00

20

0940113102A05
ref: 20

CLIP

€ 2.00

21

031110625A
ref: 21

SCREW

€ 2.00

22

4483117B00
ref: 22

CUSHION,OIL TANK UPR

€ 4.50

23

1368048G01
ref: 23

HOSE

€ 24.50

24

1368348G21
ref: 24

HOSE

€ 34.50

25

1368348G31
ref: 25

HOSE

€ 46.00

26

1368504F10
ref: 26

NIPPLE

€ 6.50

27

0940106101
ref: 27

CLIP

€ 2.50

28

0940110410
ref: 28
09401-10401

CLIP

€ 1.50

29

0940109403
ref: 29

CLIP

€ 2.50
