OIL PAN - OIL PUMP

VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

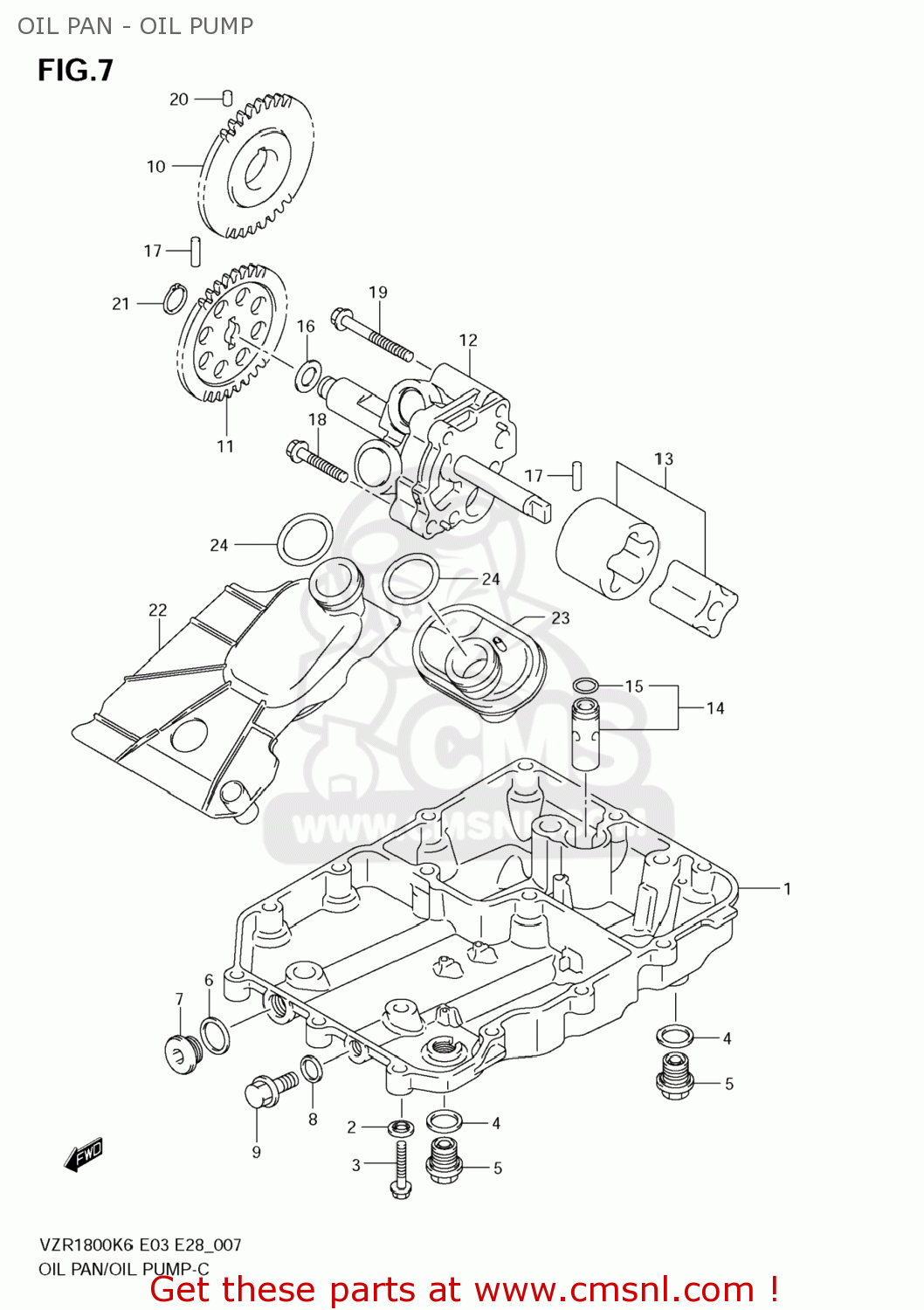

Oil pan - oil pump diagram VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

OIL PAN - OIL PUMP VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

OIL PAN - OIL PUMP VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1151148G00
ref: 1
11511-48G01

PAN,OIL

€ 214.00

2

0916806023
ref: 2

GASKET(5.8X13X1.2) (NAS)

€ 2.00

3

015470630A
ref: 3

BOLT

€ 2.50

4

0916814002
ref: 4
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

5

0924714036A05
ref: 5
09247-14036

PLUG(14X20)

€ 5.50

6

0916816002
ref: 6

GASKET(16X22X2) (NAS)

€ 2.00

7

0924816012A05
ref: 7

PLUG. OIL GALLE

€ 4.50

8

0916810002
ref: 8

GASKET(10X14X3.6) (NAS)

€ 2.00

9

0924710008
ref: 9

PLUG(10X12)

€ 3.00

10

1632148G00
ref: 10

GEAR,OIL PUMP DRIVE

€ 49.00

11

1633148G00
ref: 11

GEAR,OIL PUMP DRIVEN

€ 45.00

12

1640048G00
ref: 12

PUMP ASSY,ENGINE OIL

€ 140.50

13

1641048G00
ref: 13

ROTOR SET,OIL PUMP

€ 41.00

14

1644024F00
ref: 14

VALVE ASSY,OIL RELIEF(7K)

€ 41.50

15

0928013004
ref: 15

O RING(D:1.9,ID:13)

€ 2.50

16

0918110158
ref: 16

SHIM(10X18X0.5)

€ 2.50

17

0926104009
ref: 17

PIN(4X15.8)

€ 1.50

18

015470635A
ref: 18

BOLT

€ 3.00

19

015470655A
ref: 19

BOLT

€ 2.50

20

0422104069
ref: 20

PIN

€ 2.00

21

0833131106
ref: 21
08331-3110A

CIRCLIP,10MM

€ 2.00

22

1653048G00
ref: 22

STRAINER,ENGINE OIL FR

€ 26.00

23

1652048G00
ref: 23

STRAINER,ENGINE OIL RR

€ 20.00

24

0928022016
ref: 24

O RING(D:3.7,ID:21.7)

€ 5.50
