SIDE REAR COVER

VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

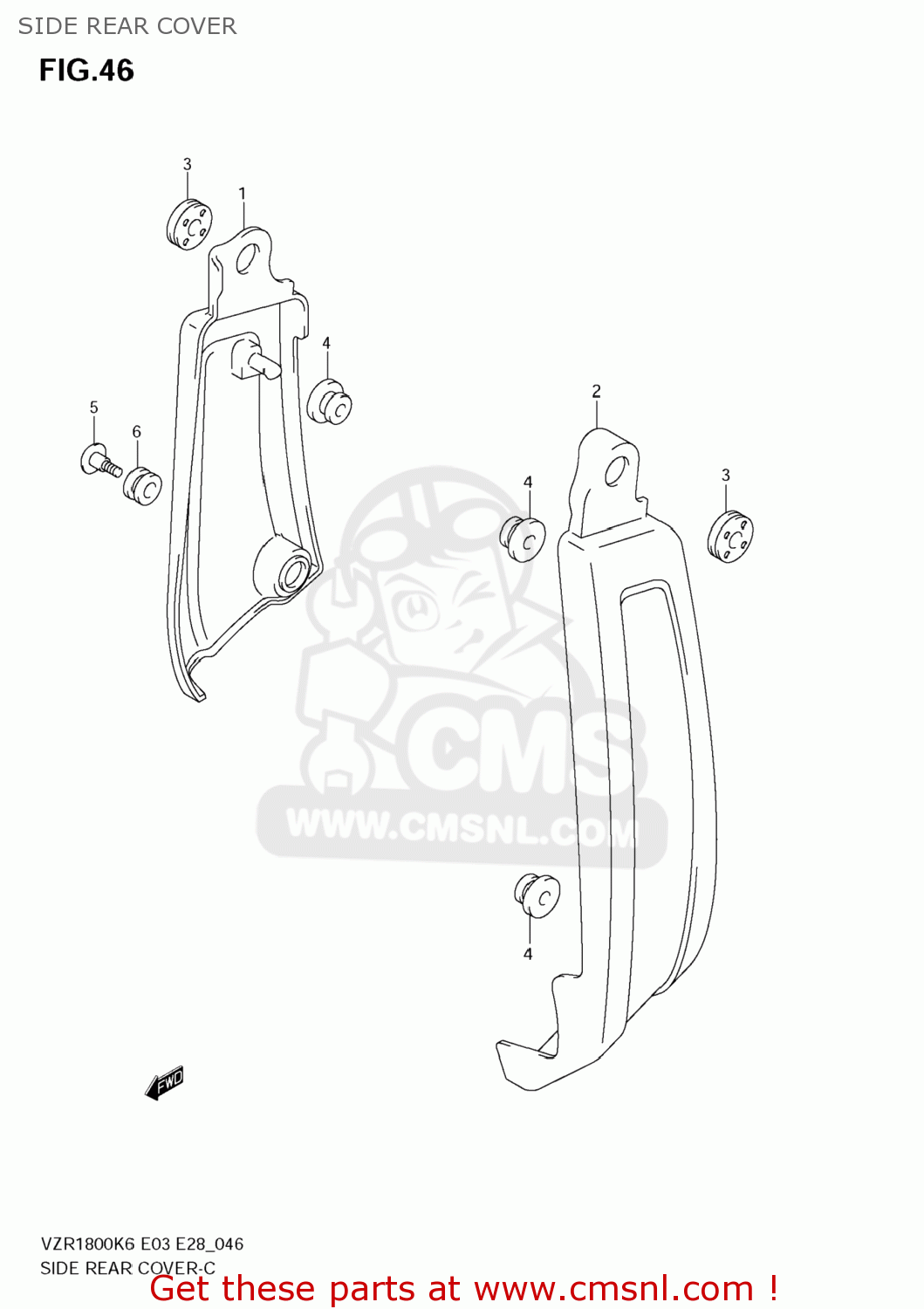

Side rear cover diagram VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

SIDE REAR COVER VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

SIDE REAR COVER VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

4714048G00019
ref: 1

COVER,SIDE RR,R

€ 51.50

2

4724048G00019
ref: 2

COVER,SIDE RR,L

€ 55.50

3

0932008028
ref: 3

CUSHION

€ 2.50

4

0932007017
ref: 4

CUSHION

€ 2.00

5

0913906126
ref: 5

SCREW(6X20)

€ 4.00

6

0932009501
ref: 6

CUSHION

€ 2.00
