Buy Suzuki VZR Parts Online


REAR WHEEL (MODEL K8/K9)

VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

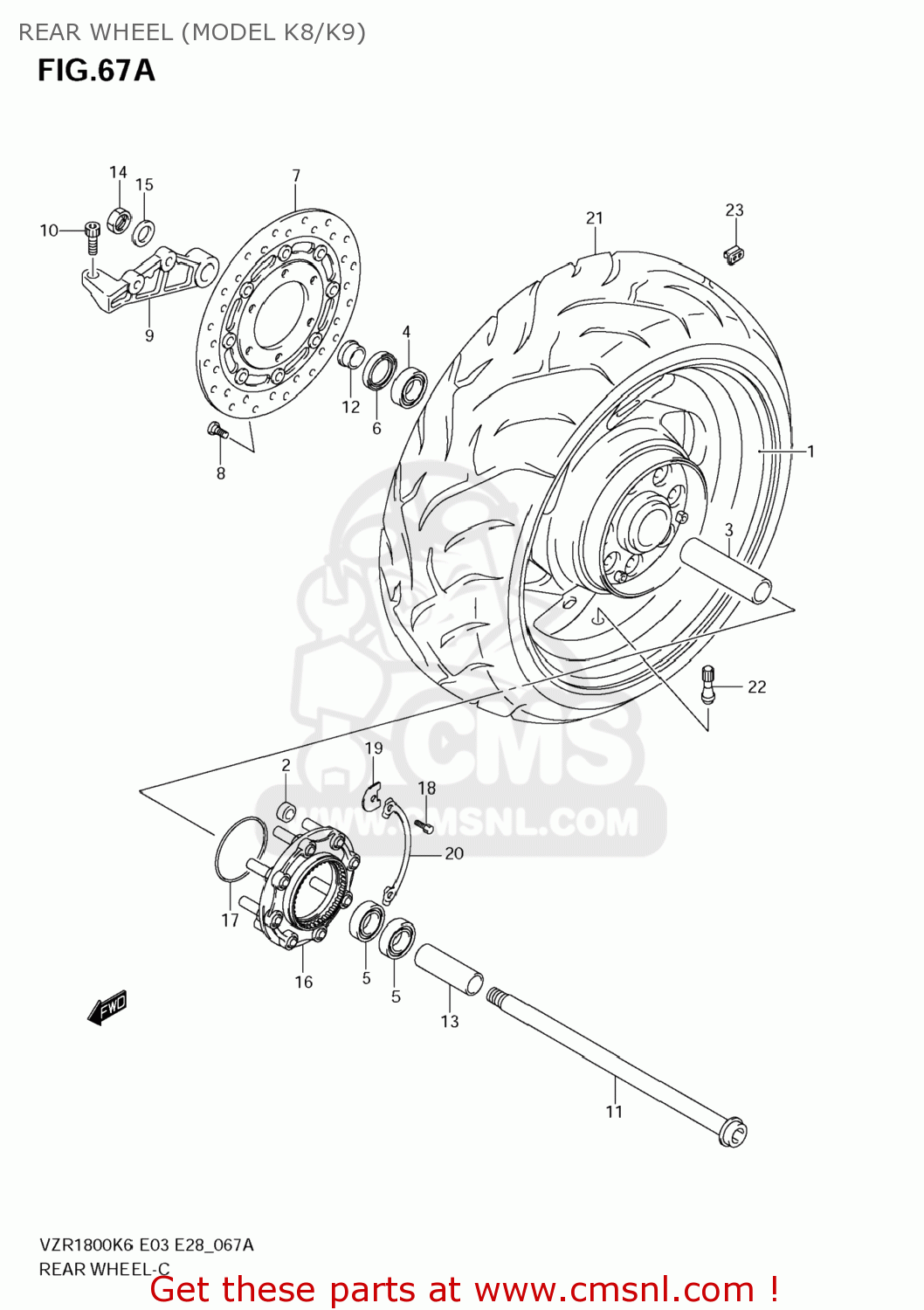

Rear wheel (model k8/k9) diagram VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)

REAR WHEEL (MODEL K8/K9) VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
REAR WHEEL (MODEL K8/K9) VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
REAR WHEEL (MODEL K8/K9) VZR1800Z BOULEVARD M109R 2006 (K6) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
641004881012Z
ref: 1
WHEEL SET,RR(18M/CXMT8.50)
€ 2,281.00
1
641004881012Z
ref: 1
WHEEL SET,RR(18M/CXMT8.50)
€ 2,281.00
2
0931912019
ref: 2
BUSH
0931912019
€ 10.50
3
6473148G00
ref: 3
SPACER,RR WHEEL BEARING
€ 45.50
4
0926225061
ref: 4
BEARING(25X52X15)
0926225061
€ 27.50
5
0814362057
ref: 5
BEARING
0814362057
€ 24.50
6
0928532004
ref: 6
SEAL,OIL(32X52X7)
0928532004
€ 8.00
7-1
6921010F30
ref: 7-1
69210-10F50
DISC,REAR BRAK
€ 445.00
7-2
6921010F50
ref: 7-2
DISC,RR BRAKE
6921010F50
€ 445.00
8
0910608160
ref: 8
BOLT(8X21)
0910608160
€ 3.50
9
6972148G00
ref: 9
BRACKET,RR CALIPER
€ 156.50
10
0910612003
ref: 10
BOLT(12X35)
0910612003
€ 3.50
11
6471148G00
ref: 11
AXLE,RR
6471148G00
€ 114.00
12
6474148G00
ref: 12
SPACER,RR AXLE,R
6474148G00
€ 10.50
13
6477248G00
ref: 13
SPACER,RR AXLE,L
€ 25.50
14
0915922007
ref: 14
NUT
0915922007
€ 20.00
15
0916022081
ref: 15
WASHER(22X35X2)
0916022081
€ 2.00
16
6468048G00
ref: 16
JOINT ASSY,RR HUB DRIVEN
€ 283.50
17
0928080001
ref: 17
O RING(D:2.4,ID:79.8)
0928080001
€ 3.50
18
0911906049
ref: 18
BOLT(6X16)
0911906049
€ 1.50
19
6467948G00
ref: 19
WASHER,RR HUB DRIVEN JOINT
6467948G00
€ 4.00
20-1
6467748G00
ref: 20-1
WASHER,THRUST
6467748G00
€ 9.50
20-2
6467748G10
ref: 20-2
WASHER,THRUST
6467748G10
€ 4.50
21
6511048G00
ref: 21
65110-48G01
TIRE,RR,240/40
6511048G00
€ 350.50
21
6511048G00
ref: 21
65110-48G01
TIRE,RR,240/40
6511048G00
€ 350.50
22
4313024A00
ref: 22
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
23-1
4322273H10
ref: 23-1
WEIGHT,WHEEL BALANCE 10G
4322273H10
€ 4.00
23-2
4322473H10
ref: 23-2
WEIGHT,WHEEL BALANCE 20G
4322473H10
€ 5.00
23-3
4322673H10
ref: 23-3
WEIGHT,WHEEL BALANCE 30G
€ 6.00
