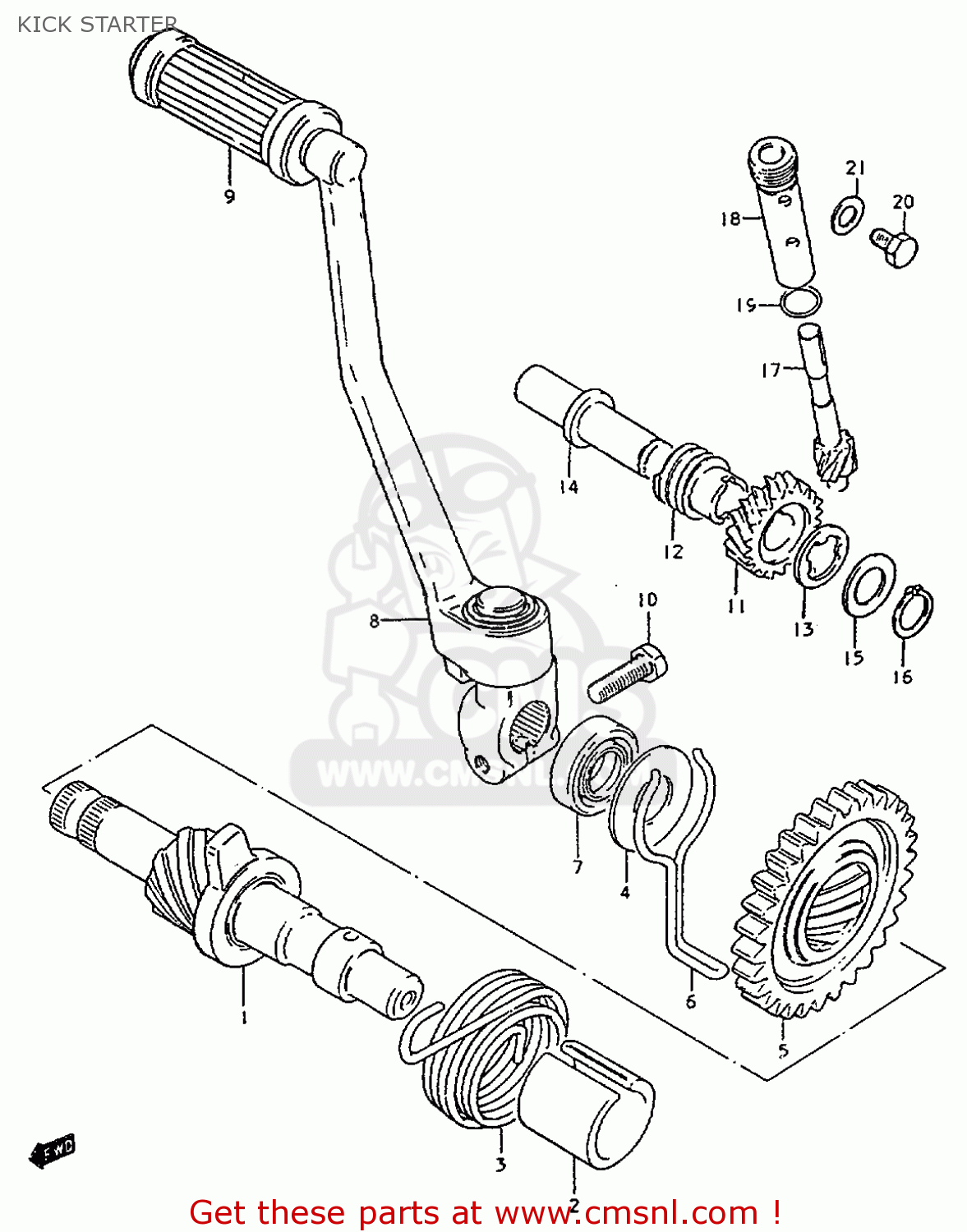

KICK STARTER

ref

part #

description

quantity

1

2621046001
ref: 1

SHAFT,KICK STARTER

€ 48.00

2

2622146000
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 5.00

3

0944840001
ref: 3

SPRING

€ 5.00

4

0916014005
ref: 4

WASHER

€ 4.00

5

2624146000
ref: 5

GEAR,KICK STARTER DRIVE(NT:30)

€ 39.00

6

0938428001
ref: 6

RETAINER,SNAP

€ 2.00

7

0928514001
ref: 7

SEAL,OIL(14X24X6)

€ 9.00

8

2630026400
ref: 8

LEVER ASSY, KICK STARTER

€ 64.00

9

2635201000
ref: 9

RUBBER,KICK STARTER PEDAL

€ 3.50

10

0110706208
ref: 10

BOLT

€ 2.00

11

2642146100
ref: 11

GEAR, TACHOMETER DRIVE NO.2

€ 28.00

12

2642346100
ref: 12

GEAR,TACH DRIVE NO.2(NT:3)

€ 19.50

13

2642446100
ref: 13

RETAINER,TACH DRIVEN GEAR NO1

€ 3.00

14

2642222701
ref: 14

SHAFT,TACHOMETER DRIVEN GEAR

€ 14.00

15

0821110201
ref: 15

WASHER,THRUST

€ 2.00

16

0833131109
ref: 16

CIRCLIP

€ 2.00

17

2643146100
ref: 17

GEAR,TACHOMETER DRIVEN(NT:12)

€ 16.50

18

2644146100
ref: 18

SLEEVE

€ 19.00

19

0928010001
ref: 19

O RING(D:1.3,ID:9.6)

€ 2.00

20

0913506002
ref: 20

BOLT

€ 2.50

21

0916806004
ref: 21

GASKET(6.2X11X1).2 (NAS)

€ 1.50
