REAR FENDER
ZR50KE 1981 (X) (E02 E16 E22 E41)

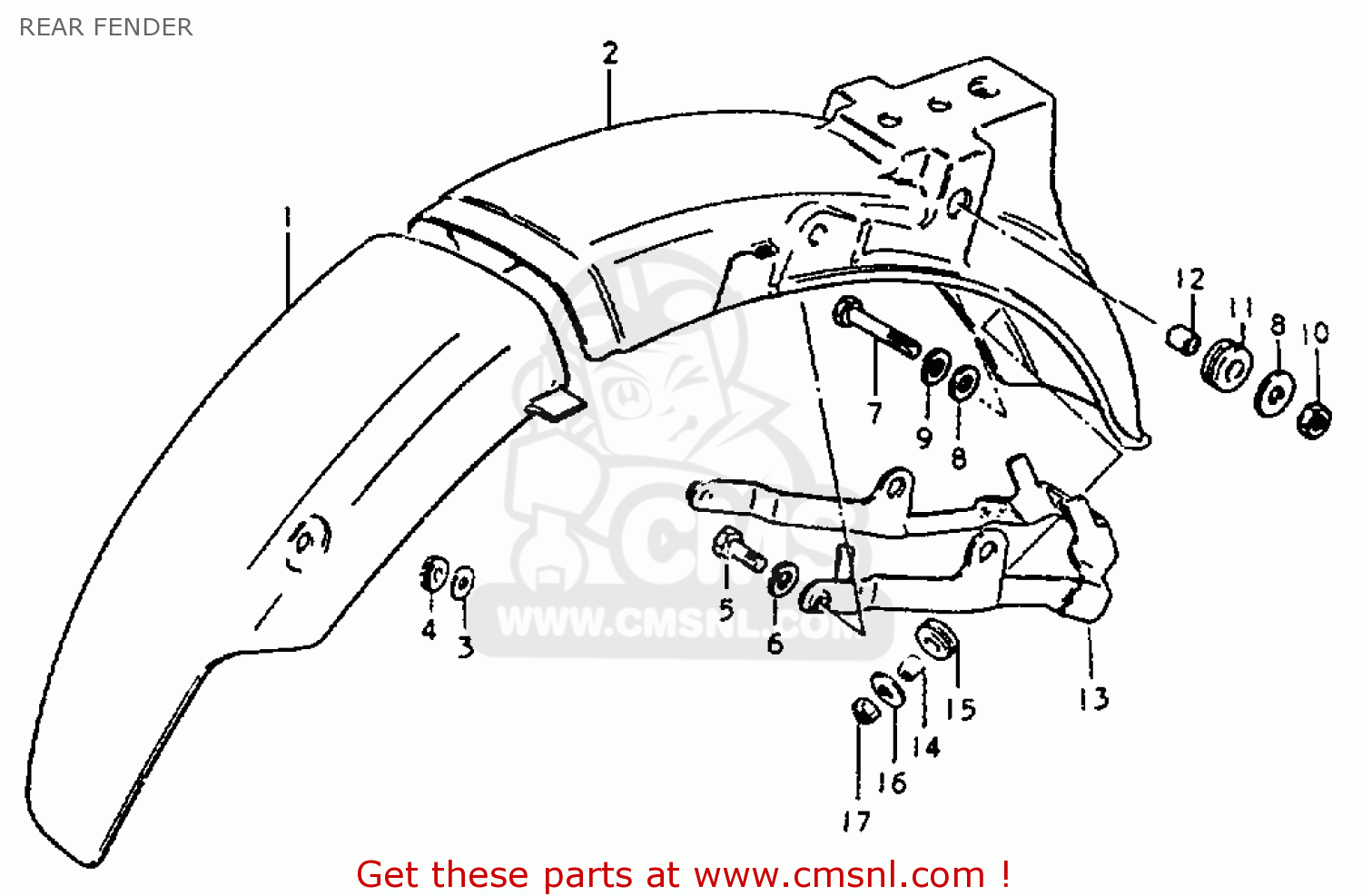

Rear fender diagram ZR50KE 1981 (X) (E02 E16 E22 E41)
REAR FENDER ZR50KE 1981 (X) (E02 E16 E22 E41)
×
prices are in EUR
ref
part #
description
quantity
1
6311239103
ref: 1
BODY, REAR FENDER FRONT
€ 37.00
2
6311346101
ref: 2
FENDER, REAR
€ 0.00
3
0916006007
ref: 3
WASHER
€ 2.00
4
0932005006
ref: 4
CUSHION
€ 4.00
5
0110706168
ref: 5
BOLT, UPPER
€ 3.00
6
0832121068
ref: 6
LOCK WASHER
€ 2.50
7
0110708258
ref: 7
BOLT
€ 2.50
8
0832211088
ref: 8
WASHER
€ 2.00
9
0832121088
ref: 9
LOCK WASHER
€ 2.00
10
0831012088
ref: 10
NUT
€ 2.00
11
0932012011
ref: 11
CUSHION
€ 3.00
12
0918008021
ref: 12
SPACER (8.2X12X7.5)
€ 3.00
13
6312036400
ref: 13
REINFORCEMENT
€ 0.00
14
0918006011
ref: 14
SPACER (6.1X9X9)
€ 2.00
15
0932008013
ref: 15
CUSHION
€ 4.00
16
0916006012
ref: 16
WASHER(6,5X22X1.6)
€ 2.00
17
0831011068
ref: 17
NUT
€ 2.50
