REAR COMBINATION LAMP
ZR50KE 1981 (X) (E02 E16 E22 E41)

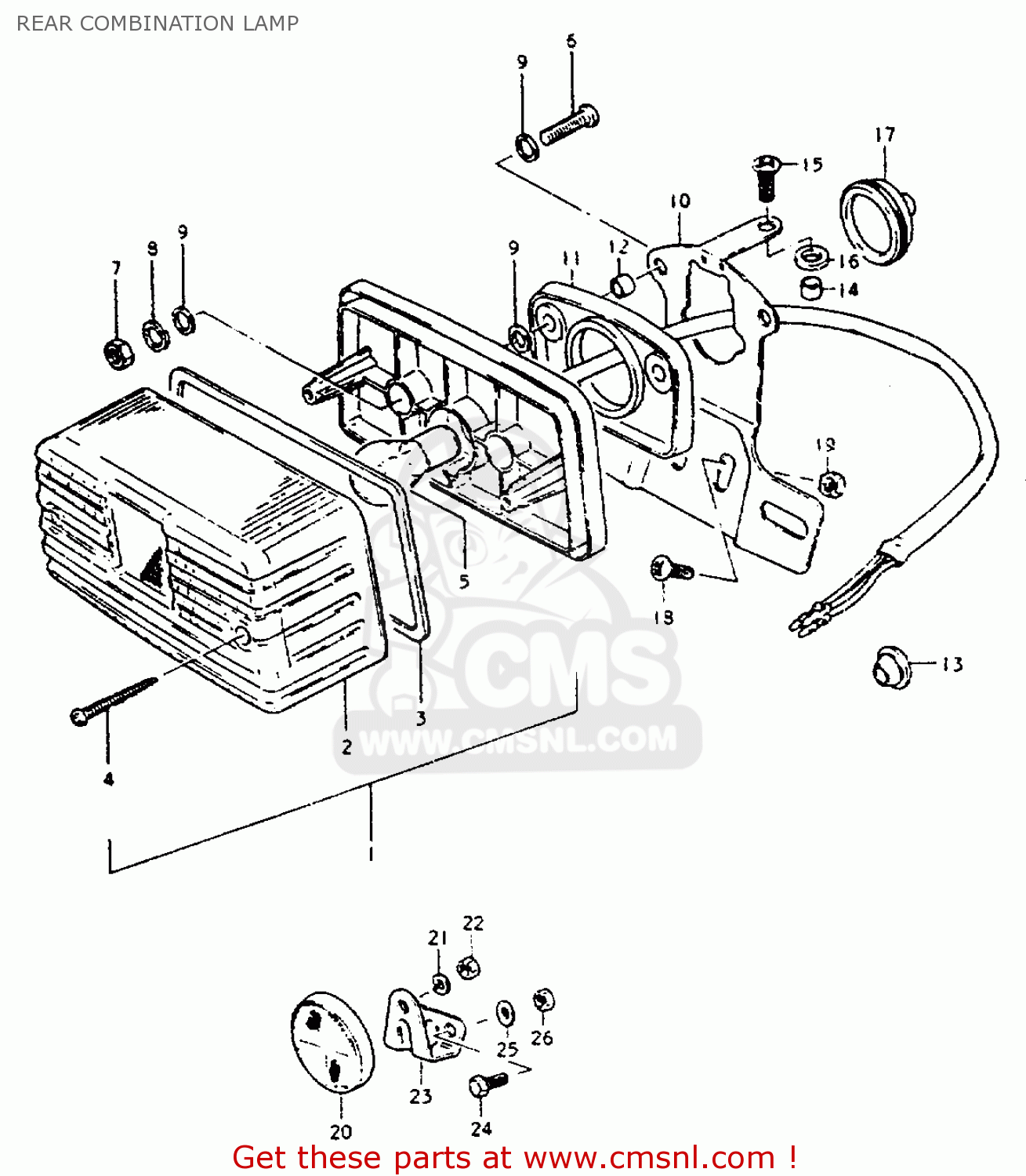

Rear combination lamp diagram ZR50KE 1981 (X) (E02 E16 E22 E41)
REAR COMBINATION LAMP ZR50KE 1981 (X) (E02 E16 E22 E41)
×
prices are in EUR
ref
part #
description
quantity
1
3572046121
ref: 1
FROM 35720-46120
LAMP UNIT, TAIL
€ 90.50
2
3571246121
ref: 2
FROM 35712-46120
LENS
€ 35.50
3
3571335300
ref: 3
GASKET (NAS)
€ 0.00
4
0321104358
ref: 4
SCREW
€ 0.50
5
0947106042
ref: 5
BULB (6V,21/5W)
€ 12.50
6
0211205255
ref: 6
SCREW
€ 2.00
7
0831011058
ref: 7
NUT
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
€ 2.00
9
0832221058
ref: 9
WASHER
€ 2.50
10
3573036400
ref: 10
BRACKET ASSY
€ 0.00
11
3576536400
ref: 11
CUSHION
€ 0.00
12
3576636400
ref: 12
SPACER
€ 0.00
13
0930807004
ref: 13
GROMMET
€ 2.50
14
0918006032
ref: 14
SPACER (6.1X8X5.2)
€ 2.50
15
0912506009
ref: 15
SCREW (6X15)
€ 3.00
16
0932007005
ref: 16
CUSHION
€ 3.00
17
0930807008
ref: 17
GROMMET
€ 0.00
18
0214206207
ref: 18
SCREW
€ 2.00
19
0831011068
ref: 19
NUT
€ 2.50
20
3597045611
ref: 20
REFLECTOR,REFLEX
€ 47.50
21
0832121058
ref: 21
LOCK WASHER
€ 2.00
22
0831011058
ref: 22
NUT
€ 2.50
23
3597446342
ref: 23
BRACKET
€ 0.00
24
0110405128
ref: 24
BOLT
€ 2.00
25
0832221058
ref: 25
WASHER
€ 2.50
26
0831011058
ref: 26
NUT
€ 2.50
