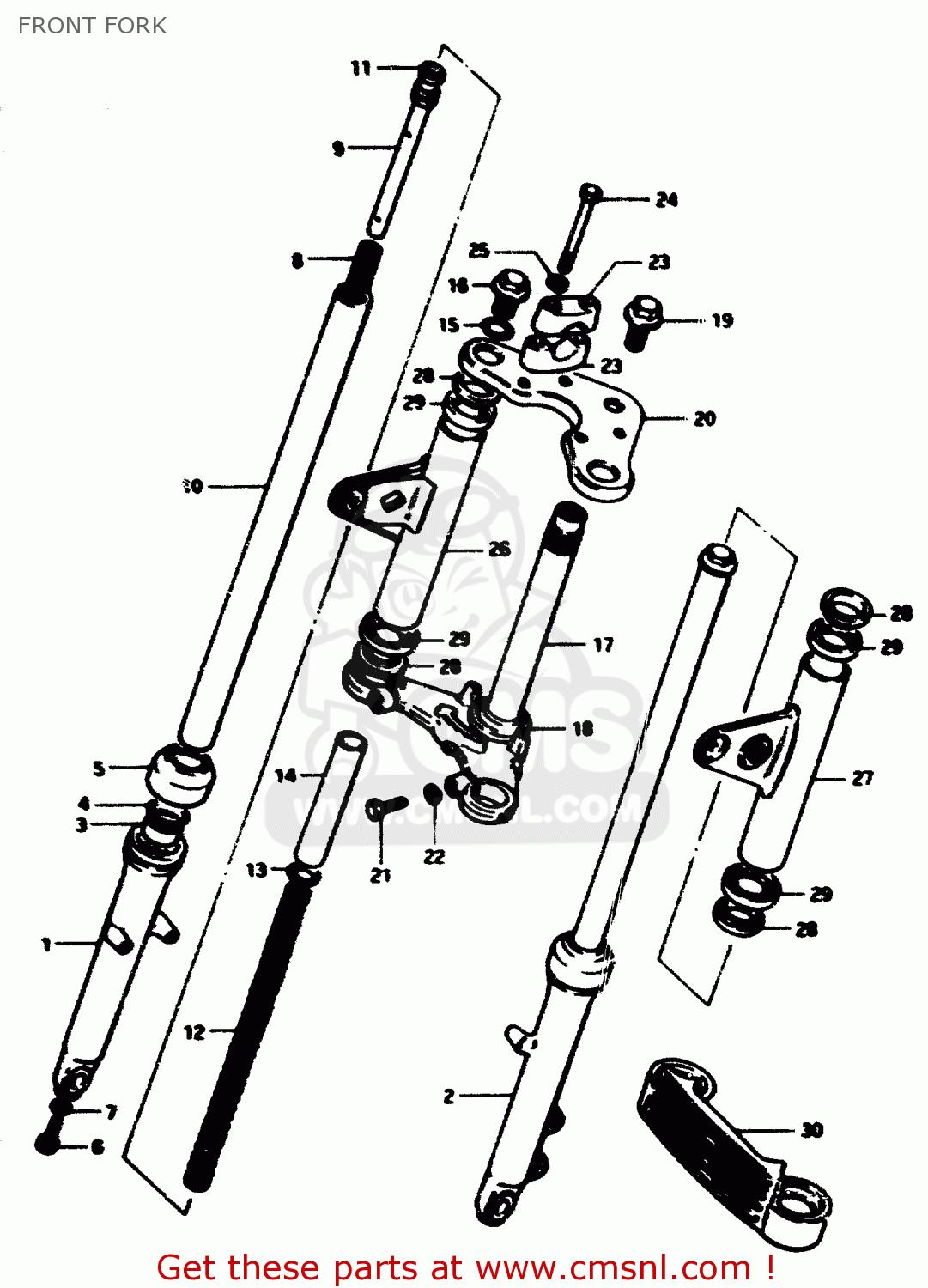

FRONT FORK

ref

part #

description

quantity

0

5110646190
ref: 0

FRONT FORK SUB ASSY

€ 552.00

1

5113126700
ref: 1

OUTER TUBE, RH

€ 151.00

2

5114126700
ref: 2

OUTER TUBE, LH

€ 134.50

3

5115313200
ref: 3

SEAL,OIL

€ 14.50

4

5115648130
ref: 4

RING,OIL SEAL STOPPER

€ 3.50

5

5157113200
ref: 5

DUST SEAL

€ 9.00

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5114831030
ref: 7

GASKET (NAS)

€ 4.00

8

5117746100
ref: 8

SPRING,REBOUND

€ 3.50

9

5114626700
ref: 9

CYLINDER

€ 29.50

10

5111026710
ref: 10

INNER TUBE

€ 123.00

11

5119646100
ref: 11

RING,PISTON

€ 6.00

12

5117126700
ref: 12

SPRING

€ 9.00

13

5119246100
ref: 13

JOINT,SPRING

€ 2.50

14

5117646100
ref: 14

SPACER,SPRING

€ 6.50

15

5118146190
ref: 15

O-RING,FORK INNER TUBE

€ 5.50

16

5135146190
ref: 16

CAP

€ 15.00

17

5141026700
ref: 17

STEERING STEM

€ 142.00

18

5162133001
ref: 18

RACE,STEERING OUTER LWR

€ 10.00

19

5135246101
ref: 19

BOLT

€ 5.50

20

5131039130291
ref: 20

STEM HEAD, STEERING

€ 106.00

21

0110710308
ref: 21

BOLT 10X30

€ 3.00

22

0832121108
ref: 22

LOCK WASHER

€ 2.00

23

5621127130291
ref: 23

HOLDER,HANDLEBAR

€ 13.50

24

0110708558
ref: 24

BOLT 8X55

€ 3.00

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

5153046190291
ref: 26

BRACKET,HEADLAMP,RIGHT

€ 41.50

27

5154046190291
ref: 27

BRACKET,HEADLAMP,LEFT

€ 41.50

28

5155346100
ref: 28

CUSHION

€ 7.50

29

5155126700
ref: 29

GUIDE, COVER

€ 8.50

30

5187126410
ref: 30

COVER

€ 25.00

all assemblies
