MAGNETO

ZR50SLK 1981 (X) (E02 E21)

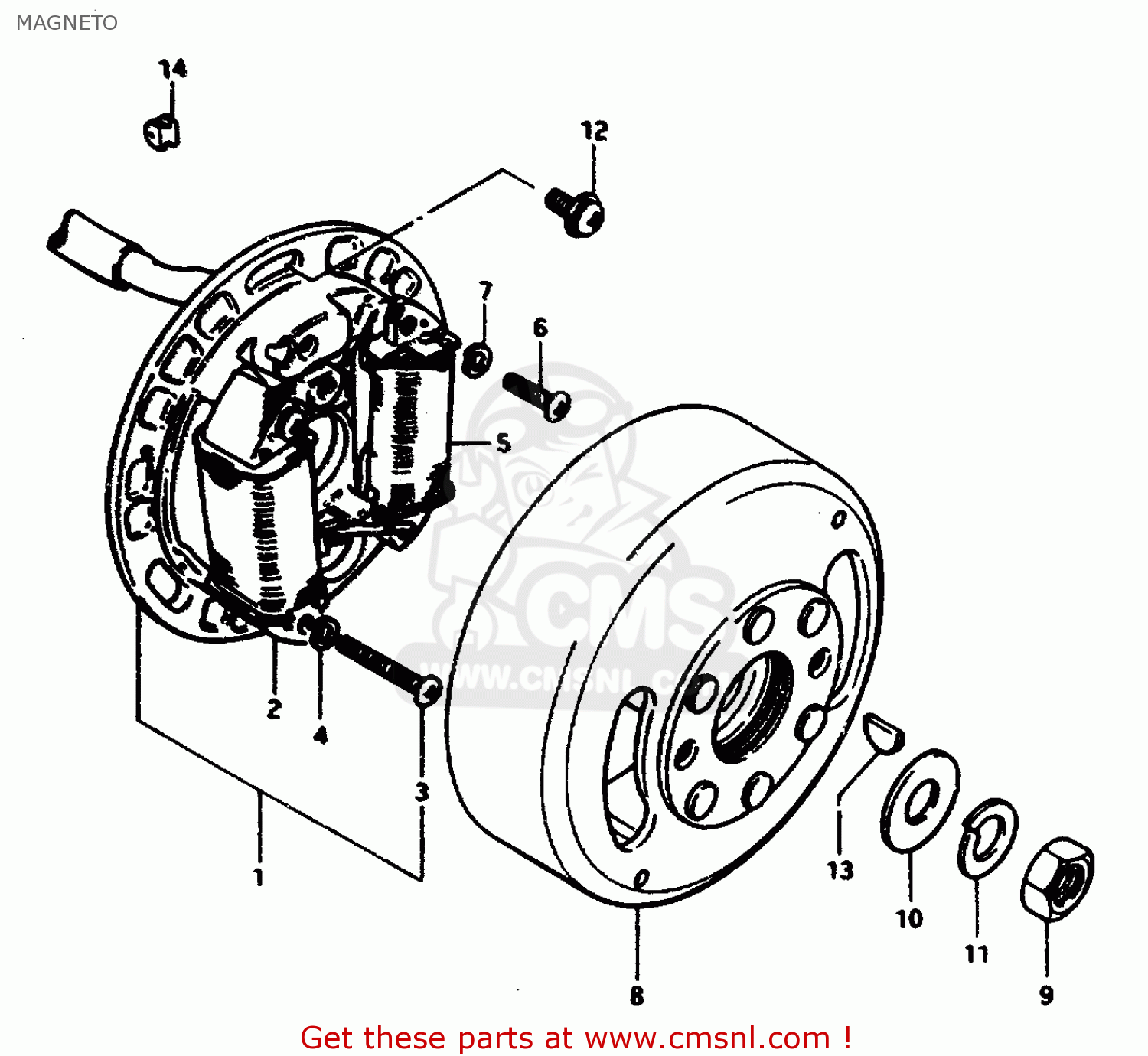

Magneto diagram ZR50SLK 1981 (X) (E02 E21)

prices are in EUR

ref

part #

description

quantity

3210146320
ref: 1

STATOR ASSY

€ 293.50

3212023012
ref: 2

COIL,LIGHTING

€ 49.00

0211204308
ref: 3

SCREW (4X30)

€ 1.50

0832121048
ref: 4

LOCK WASHER

€ 2.00

3214004510
ref: 5

COIL,PRIMARY

€ 41.00

0211204208
ref: 6

SCREW

€ 1.00

0832121048
ref: 7

LOCK WASHER

€ 2.00

3210246320
ref: 8

ROTOR ASSY

€ 144.50

0914010003
ref: 9

NUT (10MM)

€ 3.50

0832221108
ref: 10

WASHER

€ 2.50

0832121108
ref: 11

LOCK WASHER

€ 2.00

0913905011
ref: 12

SCREW(5X14)

€ 3.00

0834131039
ref: 13

KEY

€ 2.00

3274232021
ref: 14

GROMMET,NEUTRAL LEAD WIRE

€ 2.50
