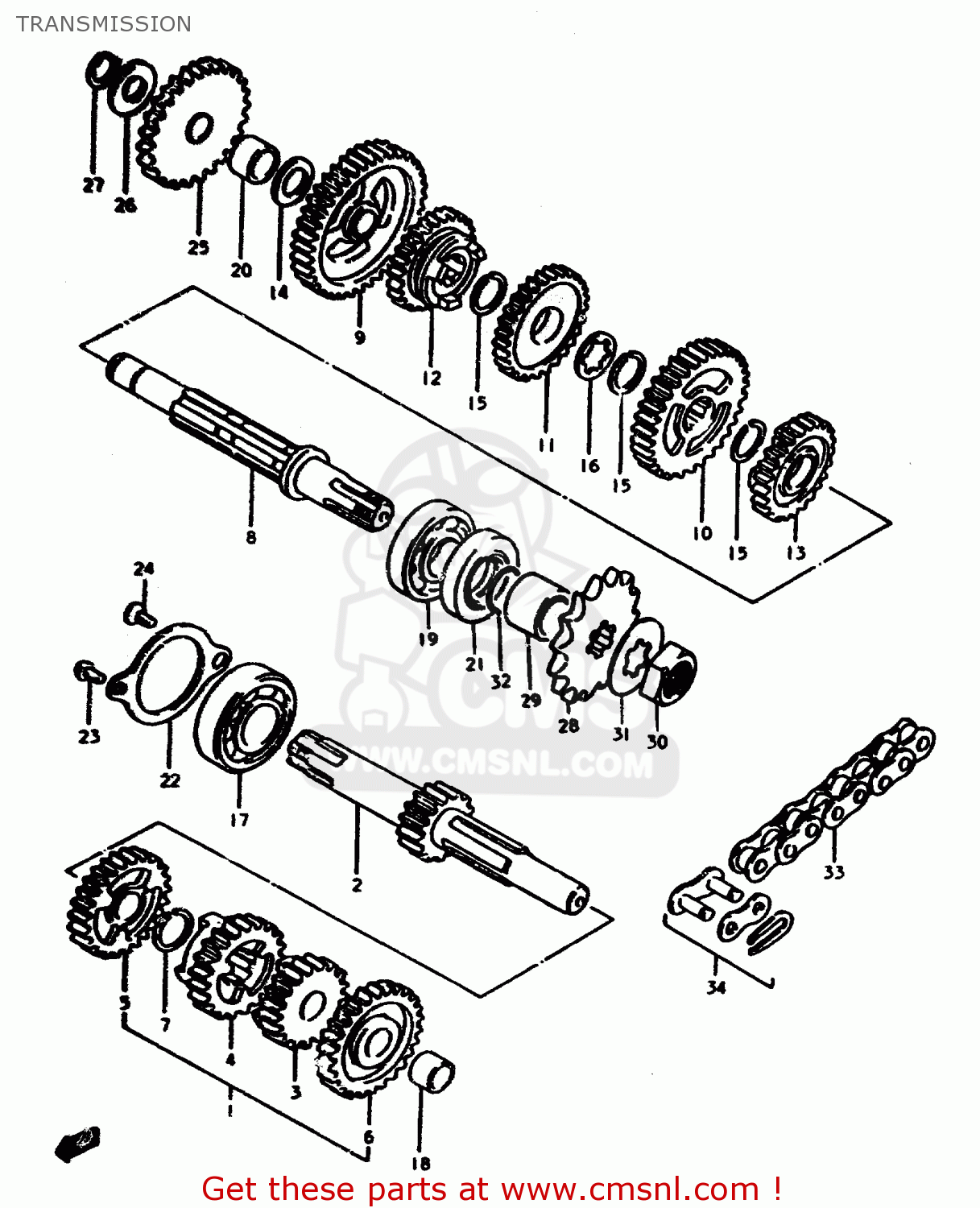

TRANSMISSION

ref

part #

description

quantity

1

2412046000
ref: 1

SHAFT,COUNTER

€ 165.00

2

2412146000
ref: 2

SHAFT,COUNTER(NT:12)

€ 77.00

3

2422046100
ref: 3

GEAR,SECOND DRIVE

€ 31.00

4

2423146000
ref: 4

GEAR,THIRD DRIVE

€ 38.00

5

2424146000
ref: 5

GEAR,4TH DRIVE(NT:24)

€ 31.50

6

2425146000
ref: 6

GEAR,FIFTH DRIVE

€ 32.50

7

0938017007
ref: 7

CIRCLIP

€ 2.00

8

2413146010
ref: 8

DRIVESHAFT

€ 83.50

9

2431046000
ref: 9

GEAR,FIRST DRIVEN

€ 36.50

10

2432146000
ref: 10

GEAR,2ND DRIVEN(NT:33)

€ 42.00

11

2433146000
ref: 11

GEAR,3RD DRIVEN(NT:29)

€ 38.50

12

2434146010
ref: 12

GEAR,FOURTH DRIVEN

€ 39.50

13

2435146000
ref: 13

GEAR,5TH DRIVEN(NT:24)

€ 40.00

14

0916013006
ref: 14

WASHER(13X24X1)

€ 2.50

15

0938017007
ref: 15

CIRCLIP

€ 2.00

16

0916717003
ref: 16

WASHER,LOCK

€ 1.50

17

0926217008
ref: 17

BEARING

€ 14.00

18

0930313001
ref: 18

BUSH

€ 6.50

19

0811363030
ref: 19

BEARING

€ 15.50

20

0930313001
ref: 20

BUSH

€ 6.50

21

0928321003
ref: 21

SEAL,OIL(21X40X6)

€ 5.50

22

2474146000
ref: 22

RETAINER,CNTR SHAFT BEARING

€ 3.50

23

0211206108
ref: 23

SCREW

€ 1.50

24

0212206108
ref: 24

SCREW

€ 1.50

25

2626046000
ref: 25

GEAR,KICK STARTER IDLE

€ 24.00

26

0821112261
ref: 26

WASHER

€ 2.50

27

0833131128
ref: 27

CIRCLIP

€ 2.00

28-1

2751122700
ref: 28-1

SPROCKET,ENGINE

€ 15.50

28-2

NOTUSED
ref: 28-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

29

0918017062
ref: 29

SPACER

€ 3.50

30

0914016001
ref: 30

NUT

€ 4.50

31

0916716003
ref: 31

LOCK WASHER

€ 2.00

32

0928017001
ref: 32

O RING(D:1,ID:16.8)

€ 2.00

33-1

2760046720
ref: 33-1

CHAIN ASSEMBLY,DRIVE

€ 31.00

33-2

NOTUSED
ref: 33-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

34-1

2762001011
ref: 34-1

JOINT ASSEMBLY,CHAIN

€ 5.00

34-2

2762001022
ref: 34-2

JOINT ASSEMBLY,CHAIN

€ 5.50

all assemblies
