FRONT FORK

DR-Z110 2004 (K4) USA (E03) DRZ110 DR Z110

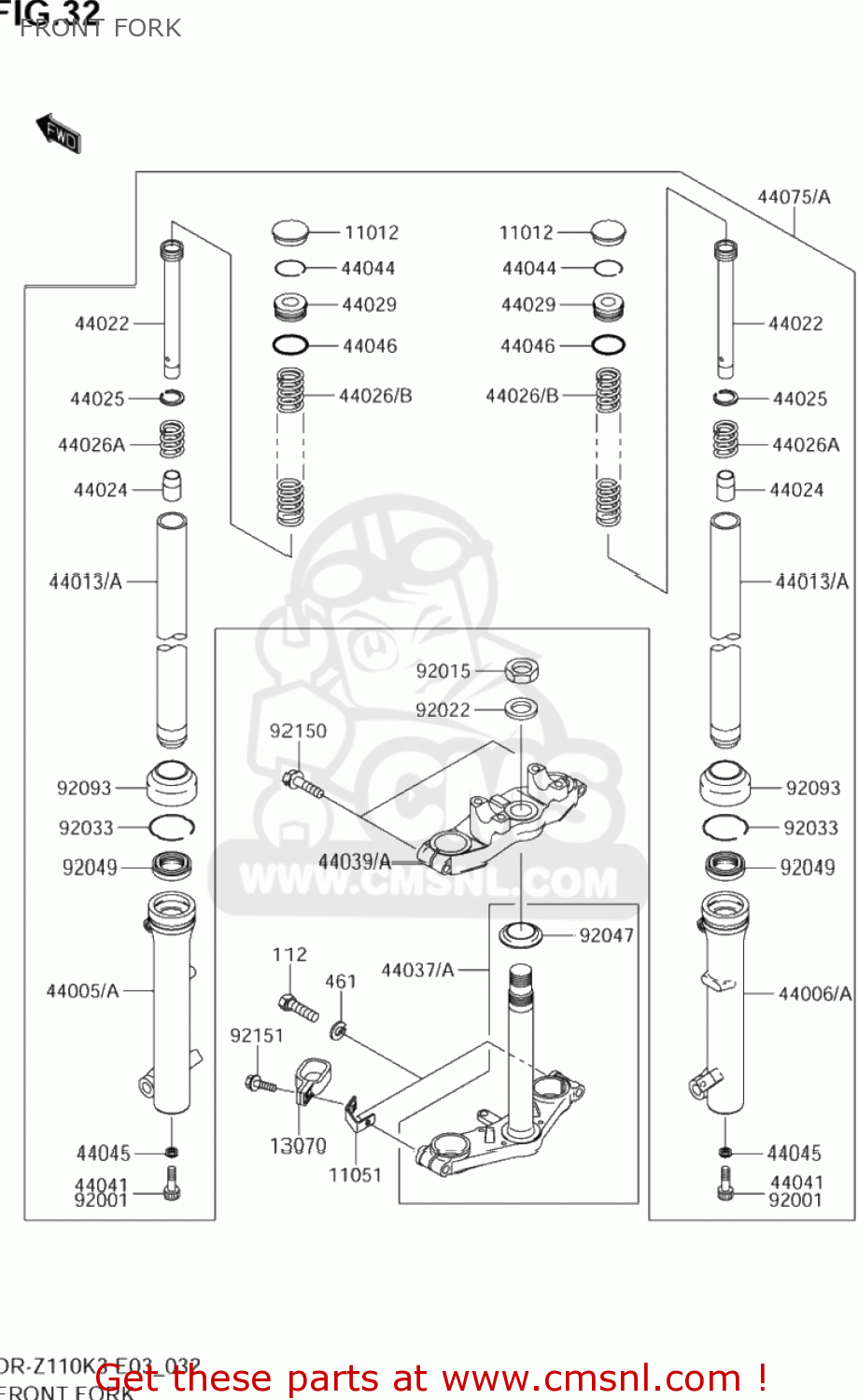

Front fork diagram DR-Z110 2004 (K4) USA (E03) DRZ110 DR Z110

FRONT FORK DR-Z110 2004 (K4) USA (E03) DRZ110 DR Z110
FRONT FORK DR-Z110 2004 (K4) USA (E03) DRZ110 DR Z110
FRONT FORK DR-Z110 2004 (K4) USA (E03) DRZ110 DR Z110
prices are in EUR
ref
part #
description
quantity
112
KK112P1035
ref: 112
BOLT-UPSET
€ 0.00
461
KK461F1000
ref: 461
WASHER-SPRING,10MM
€ 0.00
11012
K110121067
ref: 11012
CAP,RUBBER,FORK TOP
€ 0.00
11051
K110511892
ref: 11051
BRACKET,BRAKE HOSE GUIDE
€ 10.00
13070
K130701349
ref: 13070
GUIDE,BRAKE HOSE
K130701349
€ 8.00
44005
K440050018
ref: 44005
PIPE-LEFT FORK OUTER
€ 0.00
44005A
K440051430
ref: 44005A
PIPE-LEFT FORK OUTER
€ 0.00
44006
K440060018
ref: 44006
PIPE-RIGHT FORK OUTER
€ 0.00
44006A
K440061430
ref: 44006A
PIPE-RIGHT FORK OUTER
€ 0.00
44013
K440130018
ref: 44013
PIPE,FORK INNER
€ 192.00
44013A
K440131505
ref: 44013A
PIPE-FORK INNER
€ 0.00
44022
K440221346
ref: 44022
CYLINDER-FORK
€ 0.00
44024
K440241071
ref: 44024
CAP-OIL-LOCK
€ 0.00
44025
K440251061
ref: 44025
RING-FORK PISTON
€ 0.00
44026
K440260034
ref: 44026
SPRING-FRONT FORK
€ 0.00
44026A
KK44026060
ref: 44026A
SPRING-FRONT FORK,REBOUND
€ 0.00
44026B
K440261763
ref: 44026B
SPRING-FRONT FORK
€ 0.00
44029
KK44029022
ref: 44029
SEAT-FORK SPRING
€ 0.00
44037
K440370016
ref: 44037
HOLDER-FORK UNDER
€ 156.50
44037A
K440371433
ref: 44037A
HOLDER-FORK UNDER
€ 0.00
44039
K440390013
ref: 44039
HOLDER-FORK UPPER
€ 122.00
44039A
K440391326
ref: 44039A
HOLDER-FORK UPPER
€ 0.00
44041
KK44041078
ref: 44041
BOLT,FORK CYLINDER
€ 0.00
44044
KK44044023
ref: 44044
RING-SNAP
€ 0.00
44045
KK44045051
ref: 44045
GASKET,FORK CYLINDER BOLT (NAS)
KK44045051
€ 6.50
44046
KK44046025
ref: 44046
RING-O
€ 0.00
44075
K440750028
ref: 44075
DAMPER-SET-FORK
€ 475.00
44075A
K440751165
ref: 44075A
DAMPER-SET-FORK
€ 0.00
92001
K920011464
ref: 92001
BOLT,FORK CYLINDER
K920011464
€ 5.00
92015
K920151653
ref: 92015
NUT,STEERING STEM,22MM
€ 9.50
92022
K920221873
ref: 92022
WASHER,STEERING STEM
K920221873
€ 4.50
92033
K920331028
ref: 92033
RING-SNAP,FORK OUTER TUBE
€ 0.00
92047
KK92047013
ref: 92047
RACE,STEERING STEM BEARING
KK92047013
€ 10.50
92049
K920491069
ref: 92049
SEAL-OIL,FORK OUTER TUBE
K920491069
€ 12.00
92093
K920931054
ref: 92093
DUST SHIELD,FORK
€ 0.00
92150
K921501585
ref: 92150
BOLT-FLANGED-SMALL
€ 3.00
92151
K921511637
ref: 92151
BOLT,FLANGED,5X16
€ 2.50
