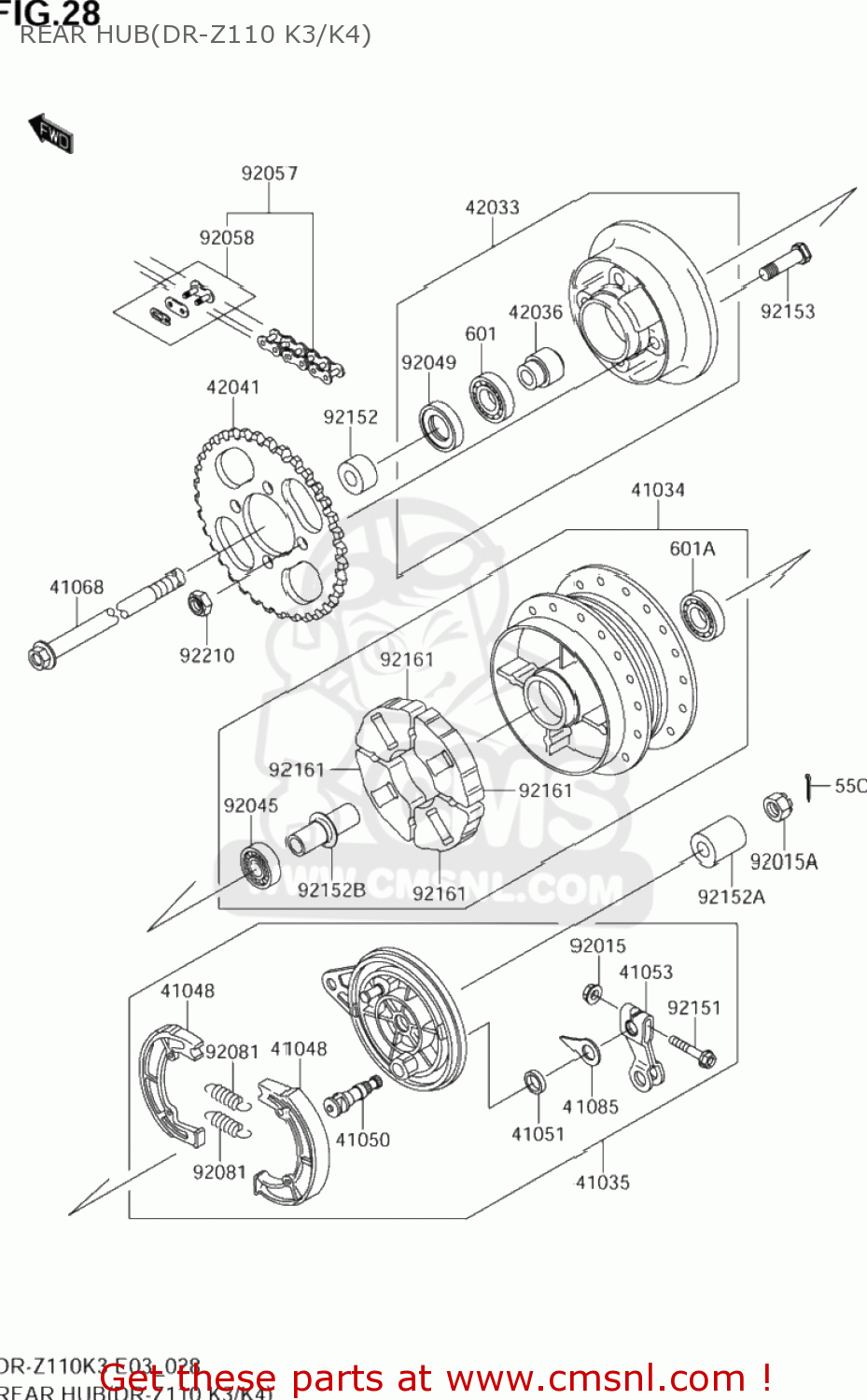

REAR HUB(DR-Z110 K3/K4)

ref

part #

description

quantity

550

KK550D2520
ref: 550

PIN-COTTER,2.5X20

€ 0.00

601

K601B6004U
ref: 601

BEARING

€ 25.50

601A

K601B6301U
ref: 601A

BEARING-BALL,#6301UC3

€ 0.00

41034

K410341344
ref: 41034
K4103-40010

DRUM-ASSY,REAR BRAKE

€ 178.50

41035

K410351542
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 0.00

41048

K410481141
ref: 41048

SHOE-BRAKE

€ 17.00

41050

K410501082
ref: 41050

CAM-BRAKE

€ 10.00

41051

KK41051001
ref: 41051

SEAL,BRAKE CAM

€ 4.50

41053

K410531089
ref: 41053

LEVER-BRAKE CAM

€ 0.00

41068

K410680016
ref: 41068

AXLE,RR

€ 0.00

41085

K410851079
ref: 41085

INDICATOR

€ 0.00

42033

K420331223
ref: 42033

COUPLING-ASSY,RR HUB

€ 0.00

42036

K420361292
ref: 42036

SLEEVE,RR HUB COUPLING,L=29

€ 0.00

42041

K420411553
ref: 42041
K4204-10006

SPROCKET-HUB,33T

€ 52.50

92015

K920151193
ref: 92015

NUT,FLANGED,6MM

€ 1.00

92015A

K920151870
ref: 92015A

NUT,CASTLE,12MM

€ 0.00

92045

K920451308
ref: 92045

BEARING-BALL,6201ZC3/5C

€ 0.00

92049

K920491490
ref: 92049

SEAL-OIL,SC26X42X8

€ 2.00

92057

K920571527
ref: 92057
K9205-70090

CHAIN,DRIVE,DID420DXX86L

€ 18.50

92058

K920581073
ref: 92058

JOINT-CHAIN,DRIVE

€ 8.00

92081

K920811766
ref: 92081

SPRING,BRAKE SHOE

€ 6.50

92151

K921511209
ref: 92151

BOLT,FLANGED,6X34

€ 0.00

92152

K921521405
ref: 92152

COLLAR,RR AXLE,LH,L=14.8

€ 0.00

92152A

K921521406
ref: 92152A

COLLAR,RR AXLE,RH,L=32

€ 0.00

92152B

K921521409
ref: 92152B

COLLAR,REAR BRAKE DRUM,L=58

€ 0.00

92153

K921531120
ref: 92153

BOLT,10X36

€ 0.00

92161

K921611297
ref: 92161
K9216-10084

DAMPER,RR HUB SHOCK

€ 6.00

92210

K922101351
ref: 92210

NUT,LOCK,10MM

€ 0.00
