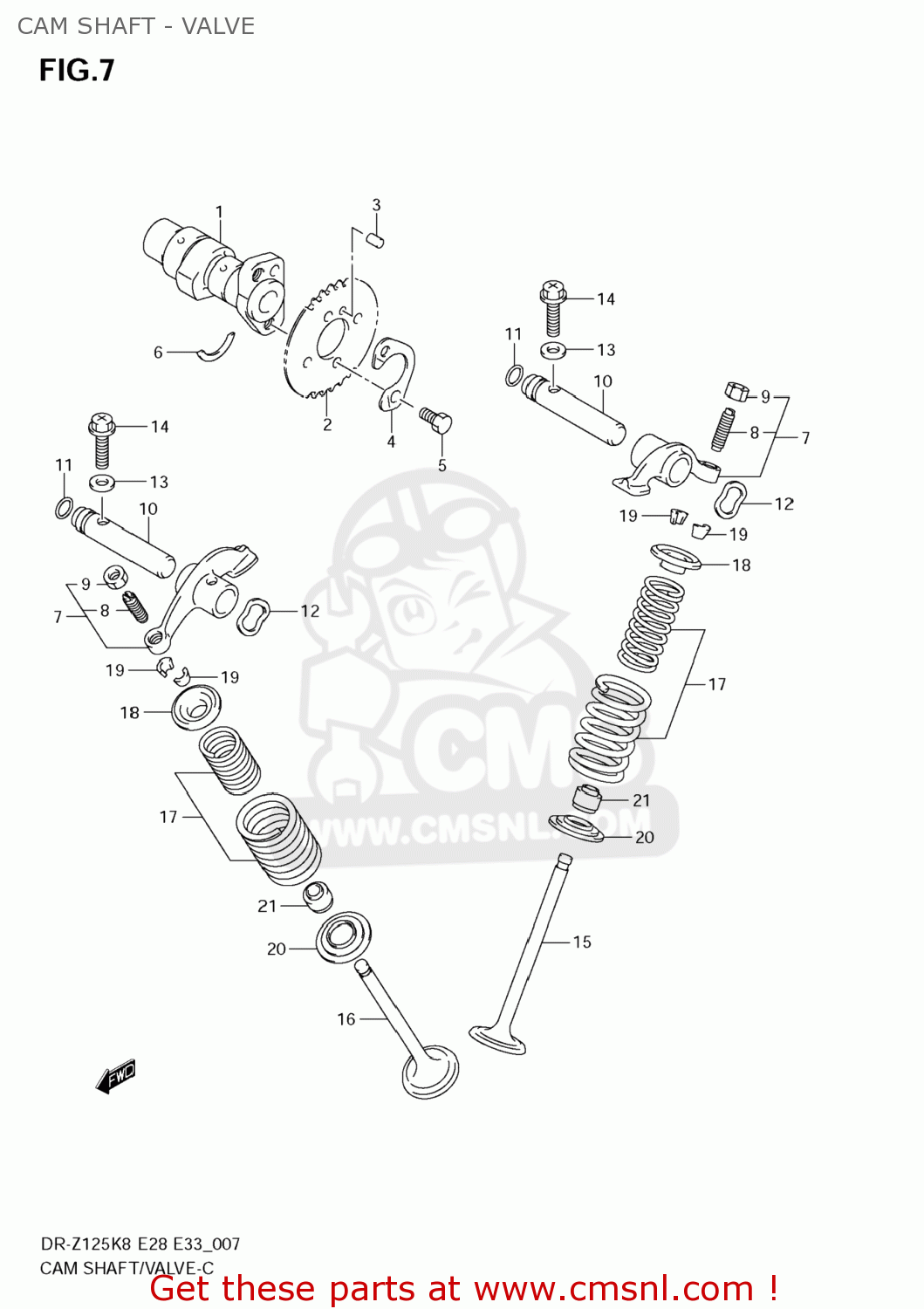

CAM SHAFT - VALVE - DR-Z125 2009 (K9) USA (E03) DRZ125 DR Z125

ref

part #

description

quantity

1

1271108G00
ref: 1

CAMSHAFT

€ 99.50

2

1274105201
ref: 2

SPROCKET,CAMSHAFT

€ 14.00

3

0926105005
ref: 3

PIN(5X8)

€ 1.50

4

1274705202
ref: 4

WASHER,SPROCKET

€ 2.00

5

0910006166
ref: 5

BOLT(6X10.5)

€ 1.50

6

0939022002
ref: 6

C RING

€ 2.00

7

1285025C00
ref: 7

ARM ASSY,VALVE ROCKER

€ 28.00

8

1284232411
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1286105201
ref: 10

SHAFT,VALVE ROCKET

€ 9.50

11

0928009005
ref: 11

O RING(D:1.9,ID:8.6)

€ 4.00

12

0916412021
ref: 12

WASHER

€ 2.00

13

0916806023
ref: 13

GASKET(5.8X13X1.2) (NAS)

€ 2.00

14

021620625B
ref: 14

SCREW

€ 2.00

15

1291104B00
ref: 15

VALVE,INTAKE

€ 41.50

16

1291224400
ref: 16

VALVE,EXHAUST

€ 41.50

17

1292005240
ref: 17

SPRING SET,VALVE

€ 10.50

18

1293149201
ref: 18

RETAINER,VALVE SPRING

€ 5.50

19

1293224400
ref: 19

COTTER,VALVE

€ 2.00

20

1293349201
ref: 20

SEAT,VALVE SPRING

€ 4.50

21

0928905015
ref: 21

SEAL,OIL(5.5X11X8.2)

€ 6.50

CAM SHAFT - VALVE
