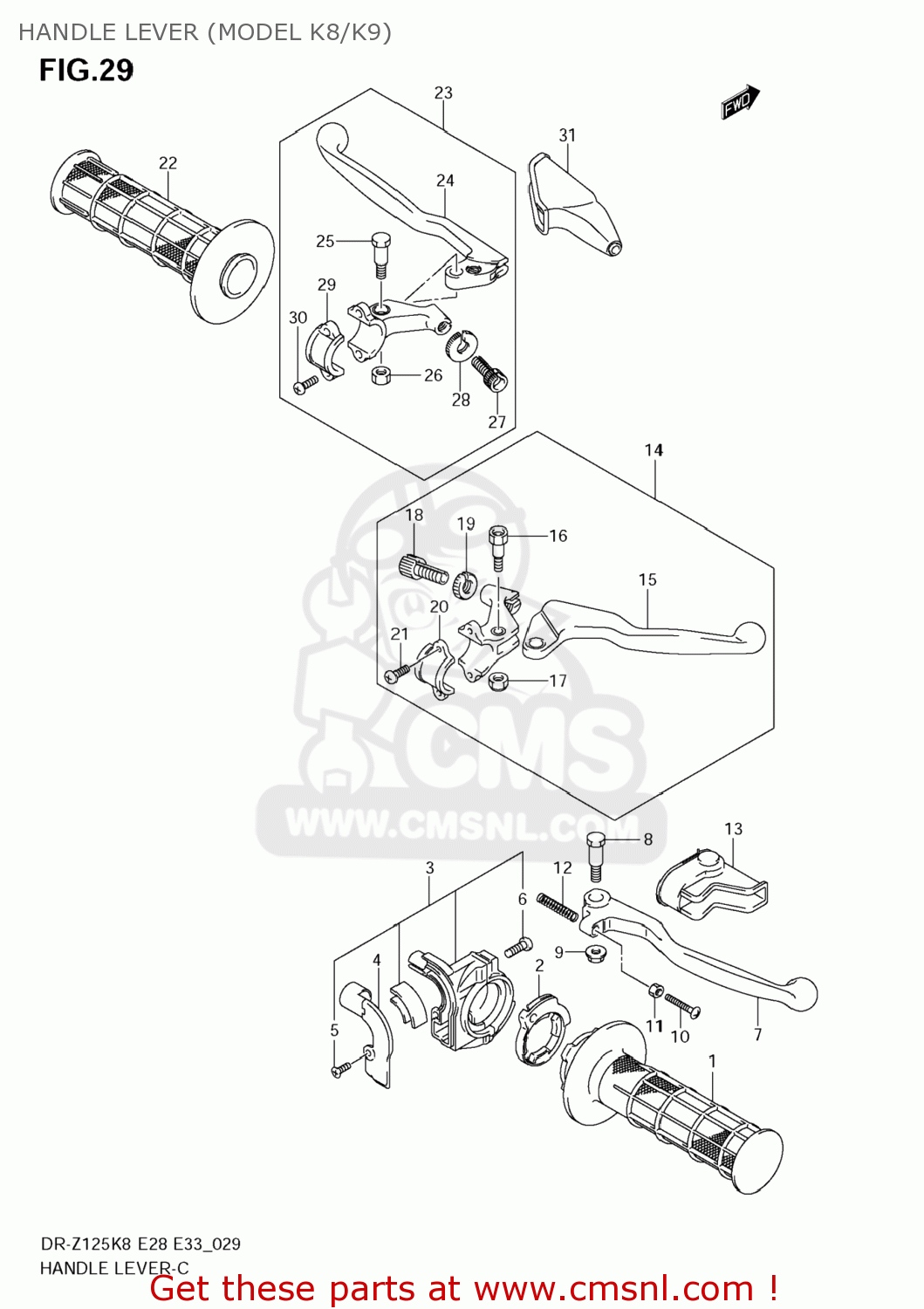

HANDLE LEVER (MODEL K8/K9)

ref

part #

description

quantity

1

5711027C00
ref: 1

GRIP,THROTTLE

€ 25.00

2

5711420410
ref: 2

ROTOR,THROTTLE GRIP

€ 6.00

3

5710003D00
ref: 3

CASE ASSY,THROTTLE

€ 30.00

4

5712920411
ref: 4

COVER,THROTTLE CASE

€ 8.50

5

021220410B
ref: 5

SCREW

€ 2.50

6

0211205167
ref: 6

SCREW

€ 2.50

7

5742127C00
ref: 7

LEVER,BRAKE

€ 11.00

8

5743114500
ref: 8

BOLT,BRAKE LEVER

€ 4.00

9

083161006B
ref: 9

NUT

€ 2.50

10

5743114511
ref: 10

BOLT,ADJUST

€ 3.50

11

083100005B
ref: 11
08310-0005A

NUT

€ 2.50

12

5731814502
ref: 12

SPRING,RETURN

€ 3.00

13

5734114501
ref: 13

COVER,BRAKE LEVER

€ 5.00

14

5730014300
ref: 14

LEVER ASSY,BRAKE

€ 30.50

15

5742014300
ref: 15

LEVER,BRAKE

€ 23.00

16

5743114301
ref: 16

BOLT,LEVER

€ 6.50

17

083192106A
ref: 17

NUT

€ 2.00

18

5744114200
ref: 18

ADJUSTER,CABLE

€ 8.50

19

5744214200
ref: 19

NUT,CABLE ADJUSTER

€ 6.00

20

5751214300
ref: 20

BRACKET,CLUTCH LEVER HOLDER

€ 32.00

21

0211205167
ref: 21

SCREW

€ 2.50

22

5721127C00
ref: 22

GRIP,L

€ 11.00

23

5750014300
ref: 23

LEVER ASSY,CLUTCH

€ 36.50

24

5762014300
ref: 24

LEVER,CLUTCH

€ 26.00

25

5743114301
ref: 25

BOLT,LEVER

€ 6.50

26

083192106A
ref: 26

NUT

€ 2.00

27

5744114210
ref: 27

ADJUSTER,CABLE

€ 7.50

28

5744214200
ref: 28

NUT,CABLE ADJUSTER

€ 6.00

29

5751214300
ref: 29

BRACKET,CLUTCH LEVER HOLDER

€ 32.00

30

0912505102
ref: 30

SCREW(5X14)

€ 2.50

31

5734140002
ref: 31

COVER,CLUTCH LEVER

€ 7.50
