SEAT

DR-Z125 2009 (K9) USA (E03) DRZ125 DR Z125

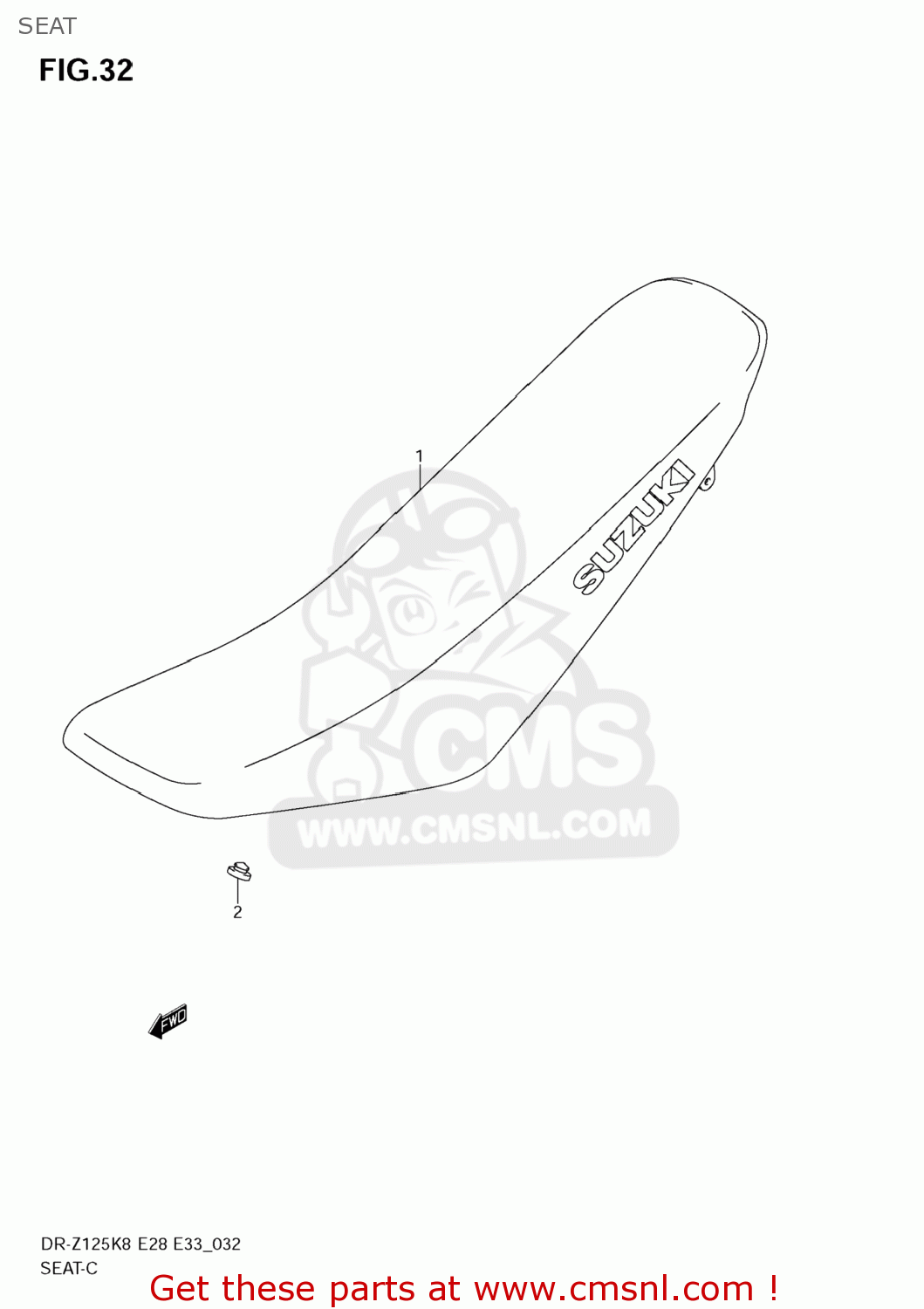

Seat diagram DR-Z125 2009 (K9) USA (E03) DRZ125 DR Z125

SEAT DR-Z125 2009 (K9) USA (E03) DRZ125 DR Z125

SEAT DR-Z125 2009 (K9) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1-1

4510008G20DUZ
ref: 1-1

SEAT ASSY

€ 292.00

1-2

4510008G20DUY
ref: 1-2

SEAT ASSY

€ 223.50

1-3

4510008G40DVA
ref: 1-3

SEAT ASSY

€ 208.00

1-3

4510008G40DVA
ref: 1-3

SEAT ASSY

€ 208.00

1-4

4510008G40GHA
ref: 1-4

SEAT ASSY

€ 208.00

1-4

4510008G40GHA
ref: 1-4

SEAT ASSY

€ 208.00

2

0932910001
ref: 2

CUSHION

€ 2.50
