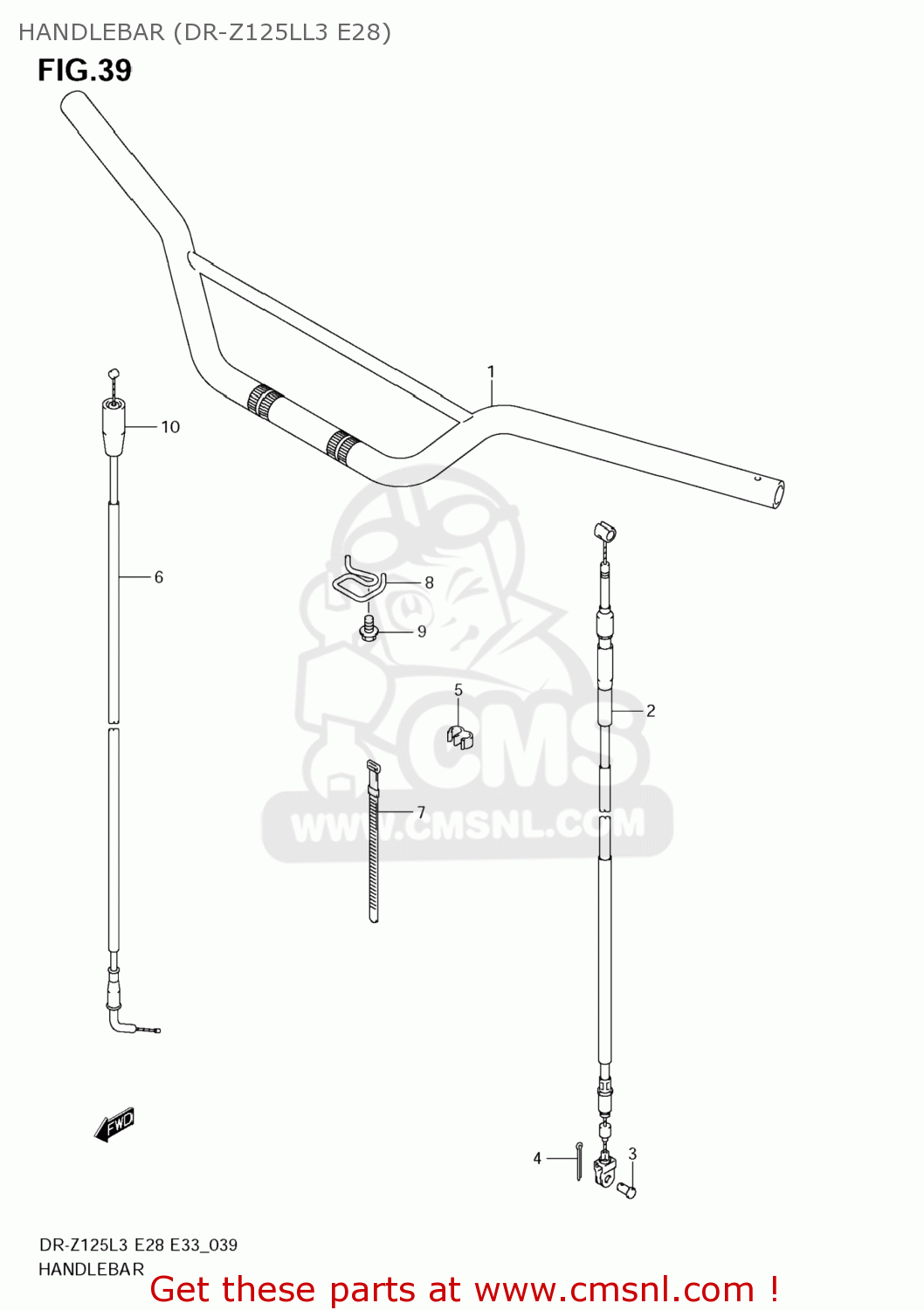

HANDLEBAR (DR-Z125LL3 E28)

DR-Z125 2013 (L3) USA (E03) DRZ125 DR Z125

Handlebar (dr-z125ll3 e28) diagram DR-Z125 2013 (L3) USA (E03) DRZ125 DR Z125

HANDLEBAR (DR-Z125LL3 E28) DR-Z125 2013 (L3) USA (E03) DRZ125 DR Z125

HANDLEBAR (DR-Z125LL3 E28) DR-Z125 2013 (L3) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1

5611008G0013L
ref: 1

HANDLEBAR(SILVER)

€ 75.50

2

5820008G00
ref: 2

CABLE ASSY,CLUTCH

€ 25.00

3

0920006004
ref: 3

PIN(L:13)

€ 1.50

4

041112015A
ref: 4

PIN

€ 1.50

5

0940317402
ref: 5

CLAMP

€ 2.50

6

5830008G00
ref: 6

CABLE ASSY,THROTTLE

€ 22.50

7

0940711402
ref: 7

CLAMP(L:90)

€ 2.50

8

5862108G00
ref: 8

GUIDE,CABLE

€ 8.50

9

015500612A
ref: 9

BOLT

€ 2.50

10

5712908G00
ref: 10

COVER,THROTTLE CASE

€ 12.50
