REAR SWINGING ARM (DR-Z125LL3 E33)

DR-Z125 2013 (L3) USA (E03) DRZ125 DR Z125

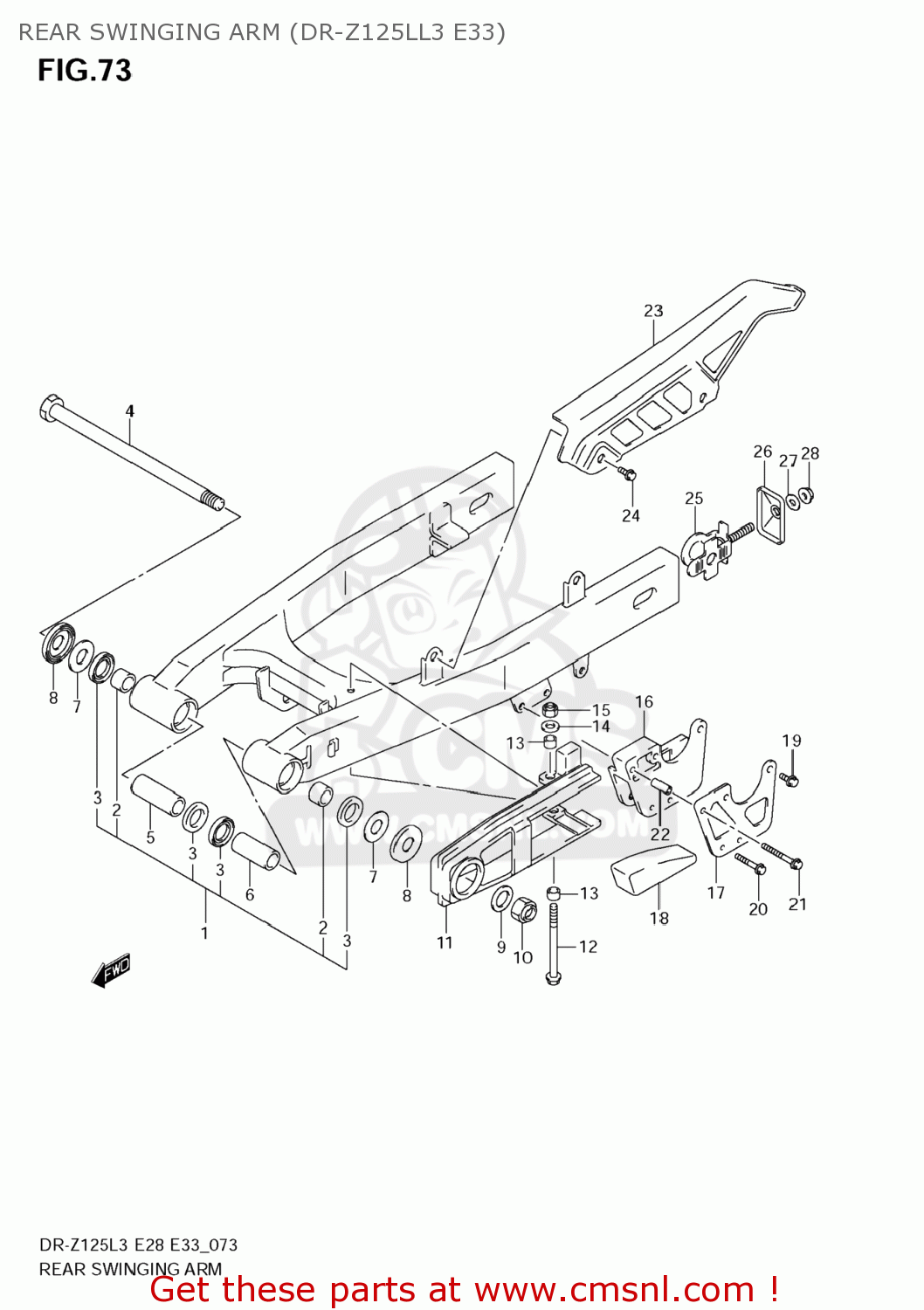

Rear swinging arm (dr-z125ll3 e33) diagram DR-Z125 2013 (L3) USA (E03) DRZ125 DR Z125

REAR SWINGING ARM (DR-Z125LL3 E33) DR-Z125 2013 (L3) USA (E03) DRZ125 DR Z125

REAR SWINGING ARM (DR-Z125LL3 E33) DR-Z125 2013 (L3) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1

6100008G0013L
ref: 1

SWINGINGARM ASSY,RR

€ 301.50

2

6126113700
ref: 2

BUSHING,RR SWGARM PIVOT

€ 8.00

3

0928320031
ref: 3

SEAL,OIL(20X27X5)

€ 5.00

4

6121144A11
ref: 4

SHAFT,RR SWINGINGARM PIVOT

€ 28.50

5

6125108G00
ref: 5

SPACER,RR SWGARM PIVOT,R

€ 11.50

6

6125142A00
ref: 6

SPACER,RR SWGARM PVT

€ 9.50

7

0821114321
ref: 7

WASHER

€ 4.00

8

6126240400
ref: 8

COVER,RR SWGARM DUST SEAL

€ 4.00

9

0916014057
ref: 9

WASHER(14.5X24X2.3)

€ 2.50

10

0915914019
ref: 10

NUT

€ 8.50

11

6127308G00
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 16.00

12

015600665B
ref: 12

BOLT

€ 3.00

13

0918006257
ref: 13

SPACER(6.5X9X6.5)

€ 2.50

14

083220106B
ref: 14

WASHER

€ 2.00

15

083192106B
ref: 15

NUT

€ 2.50

16

6134302B40
ref: 16

GUIDE,CHAIN

€ 19.00

17

6134202B40
ref: 17

PLATE,GUIDE CHAIN OUTER

€ 15.00

18

6134808G00
ref: 18

DEFENSE,CHAIN GUIDE

€ 9.50

19

0910306234
ref: 19

BOLT(6X16)

€ 2.50

20

0910306241
ref: 20

BOLT(6X40)

€ 2.50

21

0910306251
ref: 21

BOLT(6X30)

€ 2.50

22

0918006333
ref: 22

SPACER(6.5X10X23.5)

€ 2.50

23

6131101A03
ref: 23

CASE,CHAIN

€ 33.50

24

0911606096
ref: 24

BOLT(6X10)

€ 2.00

25

6141008G00
ref: 25

ADJUSTER,CHAIN

€ 14.00

26

6142138200
ref: 26

PLATE,CHAIN ADJUSTER

€ 3.50

27

0916012085
ref: 27

WASHER(12.5X26X2.3)

€ 2.00

28

083193108A
ref: 28

NUT

€ 2.50
