ELECTRICAL

DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125

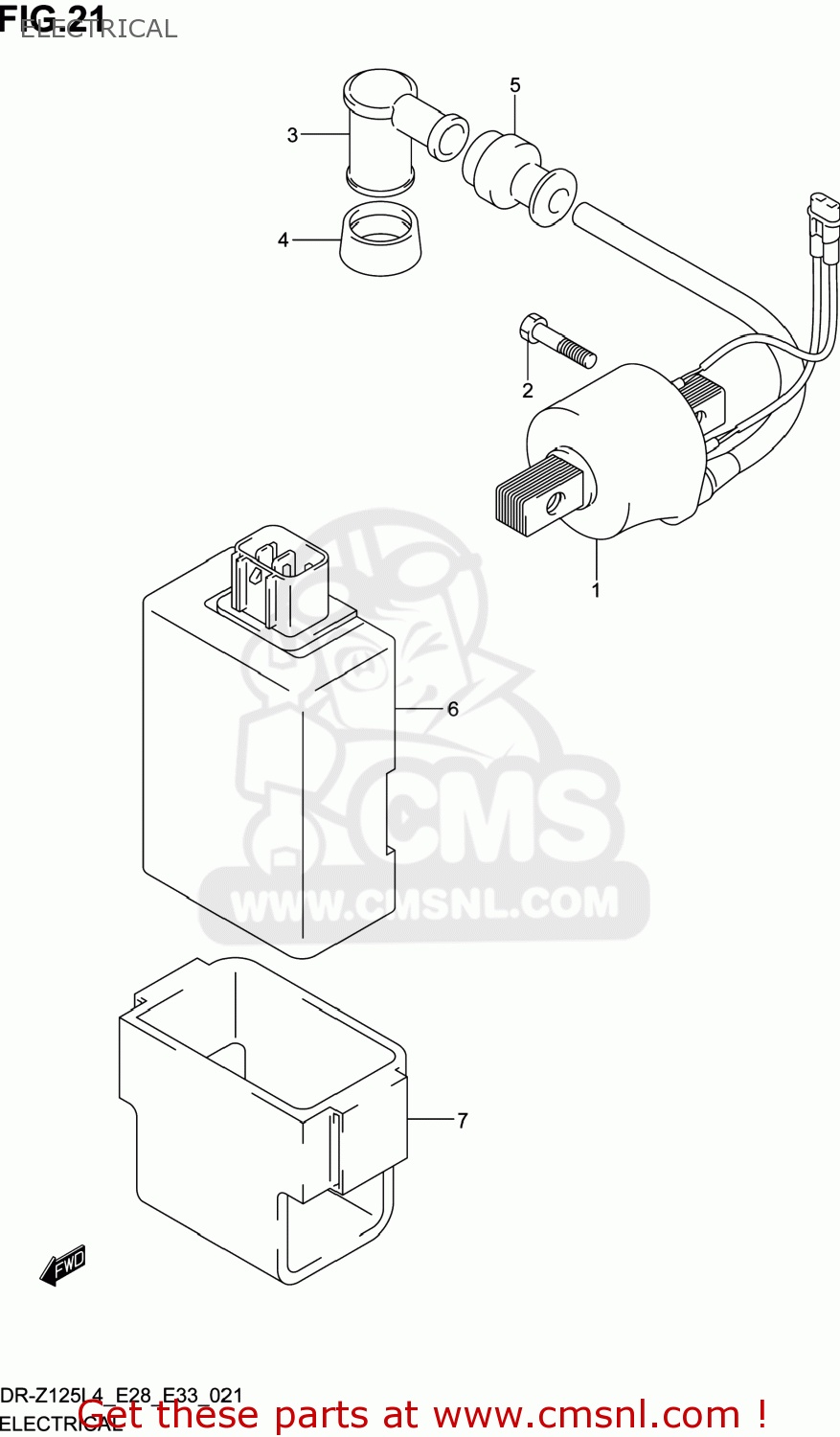

Electrical diagram DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125

ELECTRICAL DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125
ELECTRICAL DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125
ELECTRICAL DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
3341008G00
ref: 1
COIL ASSY,IGNITION
3341008G00
€ 65.00
2
015470620B
ref: 2
BOLT
015470620B
€ 2.50
3
3351022010
ref: 3
33510-97313
CAP ASSY,SPARK PLUG
3351022010
€ 16.50
4
3354138210
ref: 4
SEAL,SPARK PLUG
€ 7.00
5
3354238B00
ref: 5
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
6
3290008G00
ref: 6
CDI UNIT
3290008G00
€ 286.50
7
3298008G00
ref: 7
CUSHION,CDI UNIT
€ 8.50
