FRONT WHEEL (DR-Z125LL4 E28)

DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125

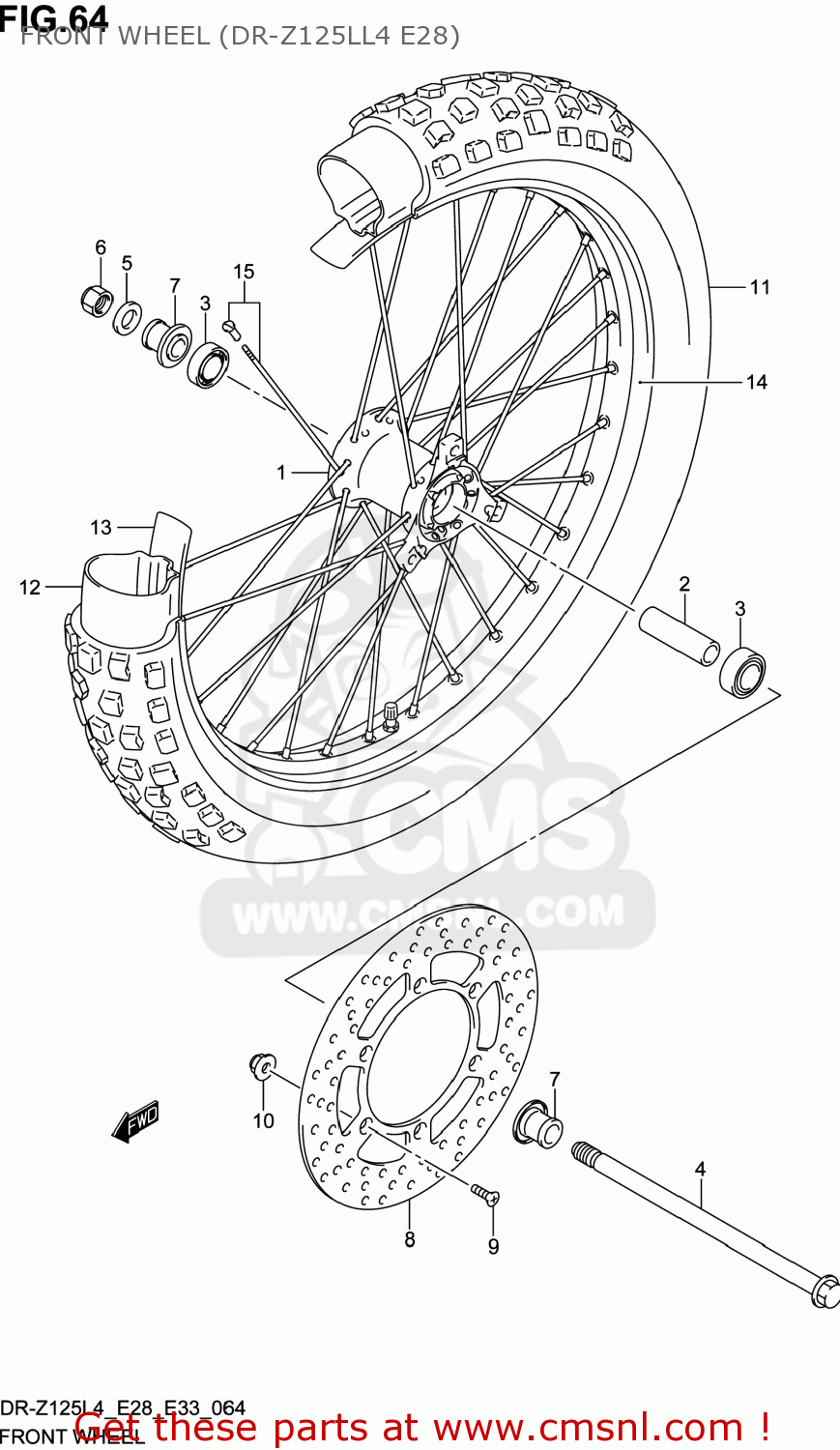

Front wheel (dr-z125ll4 e28) diagram DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125

FRONT WHEEL (DR-Z125LL4 E28) DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125
FRONT WHEEL (DR-Z125LL4 E28) DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125
FRONT WHEEL (DR-Z125LL4 E28) DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
5411102B42
ref: 1
HUB,FR WHEEL
5411102B42
€ 151.00
2
5473102B40
ref: 2
SPACER,FR HUB BEARING
5473102B40
€ 7.00
3
0813362017
ref: 3
BEARING (12X32X10)
0813362017
€ 15.00
4
5471108G10
ref: 4
AXLE,FR
€ 23.50
5
0916012082
ref: 5
WASHER(12.5X24X3.2)
0916012082
€ 2.50
6
083192112A
ref: 6
NUT
083192112A
€ 4.00
7
5474002B40
ref: 7
SPACER,FR AXLE
5474002B40
€ 9.50
8
5922108G00
ref: 8
DISC,FR BRAKE
€ 132.50
9
0912606009
ref: 9
SCREW(6X22)
0912606009
€ 2.00
10
083193106A
ref: 10
NUT
083193106A
€ 2.50
11
5511008G10
ref: 11
TIRE,FR
€ 56.00
12
5520008G10
ref: 12
TUBE ASSY,WHEEL INNER
€ 21.00
13
5526108G30
ref: 13
PROTECTOR,WHEEL INNER TUBE
€ 5.00
14
5531108G30
ref: 14
RIM,FR WHEEL(19X1.40)
€ 164.00
15
5532008G30
ref: 15
SPOKE SET,FR WHEEL
€ 30.00
