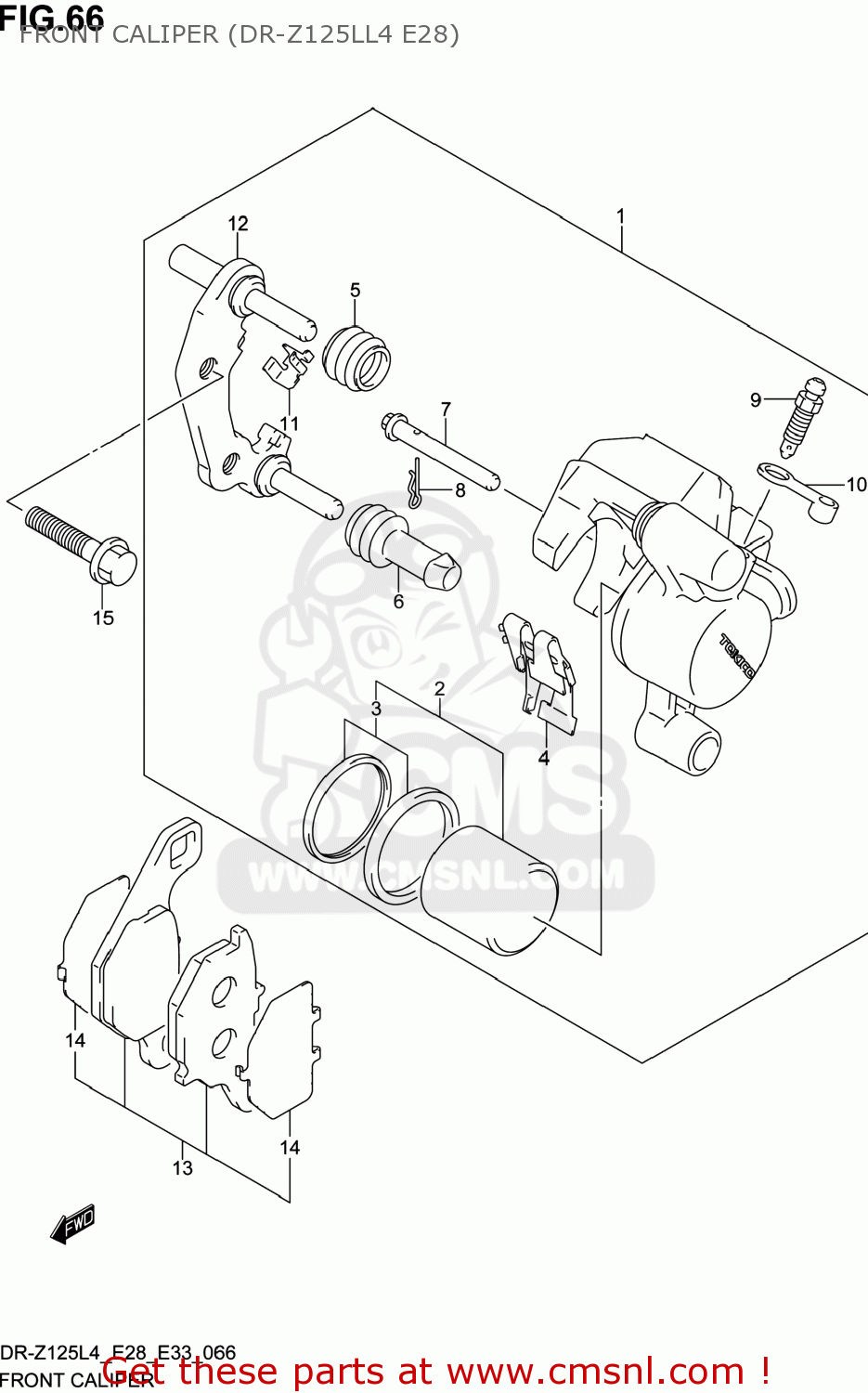

FRONT CALIPER (DR-Z125LL4 E28)

DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125

Front caliper (dr-z125ll4 e28) diagram DR-Z125 2014 (L4) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

5930003B10999
ref: 1
59300-03B11-999

CALIPER ASSY,FR,L

€ 223.00

5930120830
ref: 2

PISTON SET

€ 20.00

5930035830
ref: 3

SEAL SET,PISTON

€ 11.50

5931520E00
ref: 4

SPRING,PAD

€ 8.00

5931236500
ref: 5

BOOT,AXLE

€ 4.00

5931336500
ref: 6

INSULATOR,AXLE

€ 5.50

6914144B02
ref: 7

PIN,PAD

€ 8.00

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

5912118410
ref: 9

BLEEDER

€ 8.00

5912202B40
ref: 10
55156-66310

CAP,BLEEDER

€ 6.00

5911620E00
ref: 11

GUIDE,PAD

€ 4.00

5935020E00
ref: 12
59350-03B00

CARRIER,CALIPER,L

€ 46.00

5930120870
ref: 13

PAD & SHIM SET (NAS)

€ 42.00

5937120E00
ref: 14

SHIM,PAD

€ 7.00

015500835A
ref: 15

BOLT

€ 3.50
