ELECTRICAL

DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L

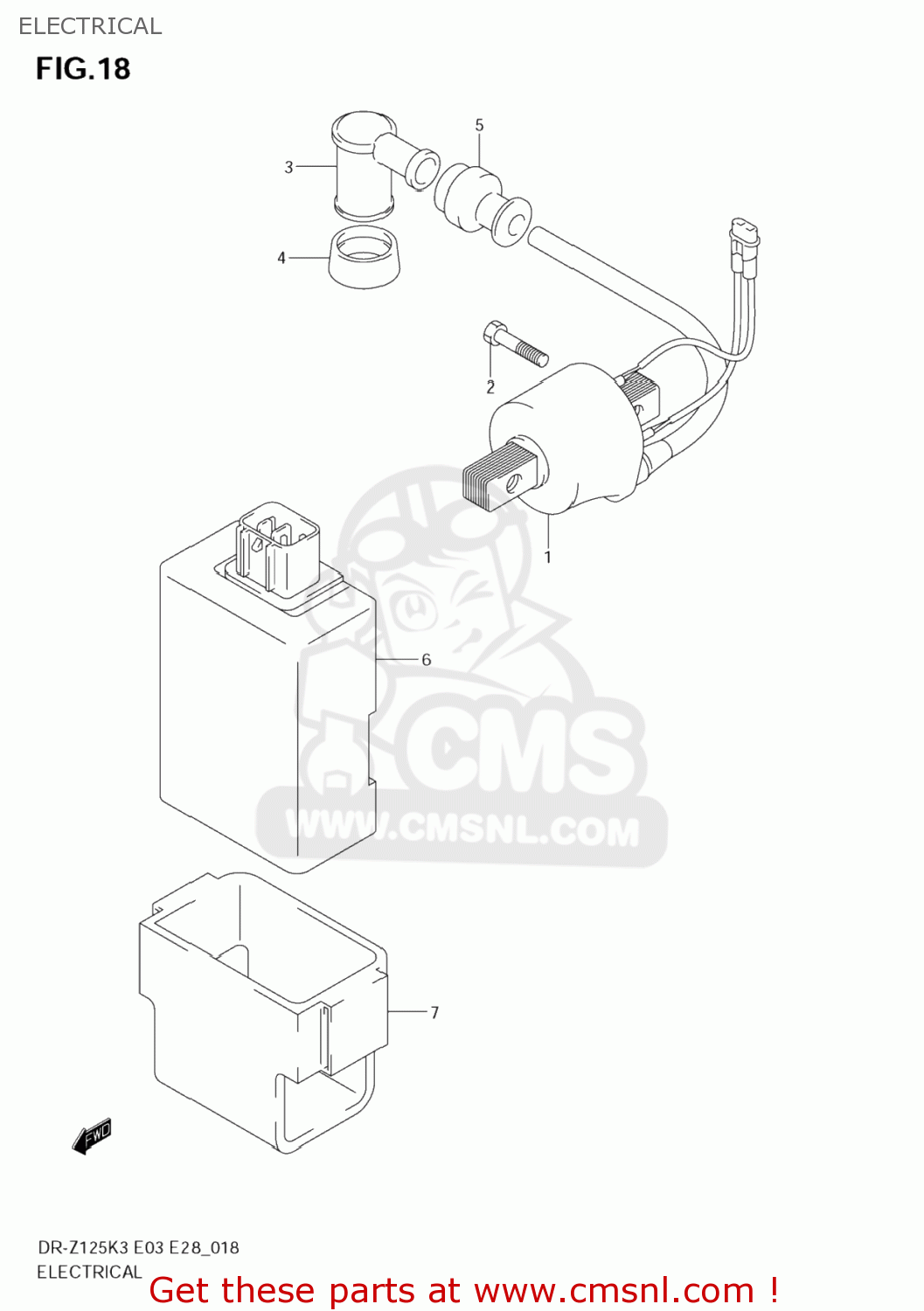

Electrical diagram DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

3341008G00
ref: 1

COIL ASSY,IGNITION

€ 65.00

0154706203
ref: 2
01547-0620B

SCREW

€ 2.50

3351022010
ref: 3
33510-97313

CAP ASSY,SPARK PLUG

€ 16.50

4-1

3354124510
ref: 4-1
33541-47D00

SEAL,SPARK PLUG CAP

€ 7.00

4-2

3354138210
ref: 4-2

SEAL,SPARK PLUG

€ 7.00

3354238B00
ref: 5

SEAL,HIGH TENSION CORD

€ 4.50

3290008G00
ref: 6

CDI UNIT

€ 286.50

3298008G00
ref: 7

CUSHION,CDI UNIT

€ 8.50
