STAND

DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L

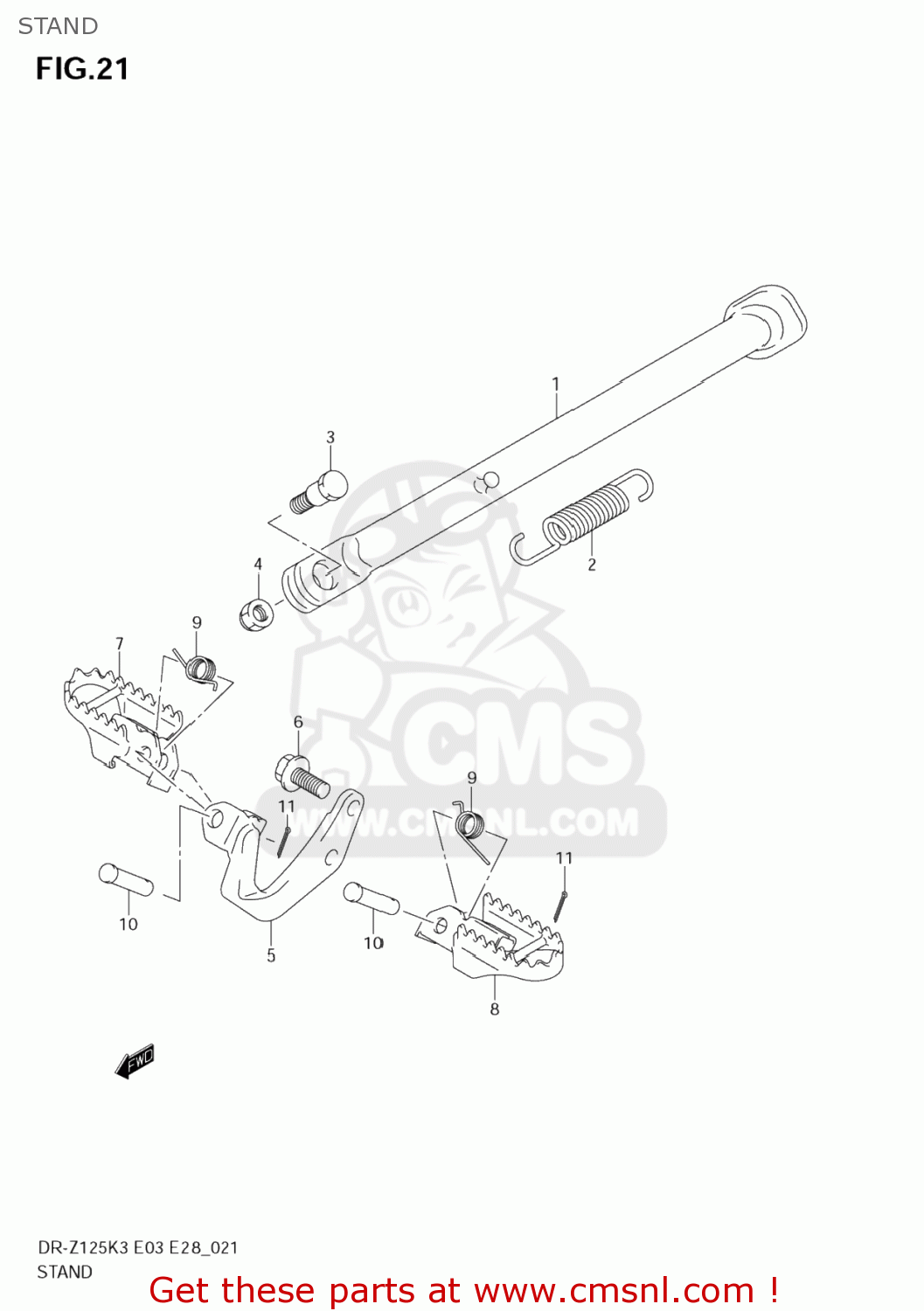

Stand diagram DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L

STAND DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L

STAND DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1-1

4231008G10
ref: 1-1

STAND,PROP

€ 43.00

1-2

4231008G00
ref: 1-2

STAND,PROP

€ 43.00

2

0944317006
ref: 2

SPRING

€ 4.50

3

0911110060
ref: 3

BOLT(10X33)

€ 3.50

4

4232103FK0
ref: 4

NUT,PROP STAND

€ 4.50

5

4351008G00
ref: 5

BRACKET,FR FOOTREST,R

€ 47.50

6

0155010253
ref: 6
01550-1025A

BOLT

€ 3.00

7

4355014D30
ref: 7
43550-03B00-019

FOOTREST,FRONT,RIGHT

€ 17.50

8

4356014D30
ref: 8
43560-03B00-019

FOOTREST,FRONT,LEFT

€ 17.50

9

0944815004
ref: 9

SPRING

€ 2.50

10

0920010013
ref: 10

PIN

€ 2.50

11

0411120158
ref: 11
04111-2015A

PIN

€ 1.50
