GEAR SHIFTING

DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L

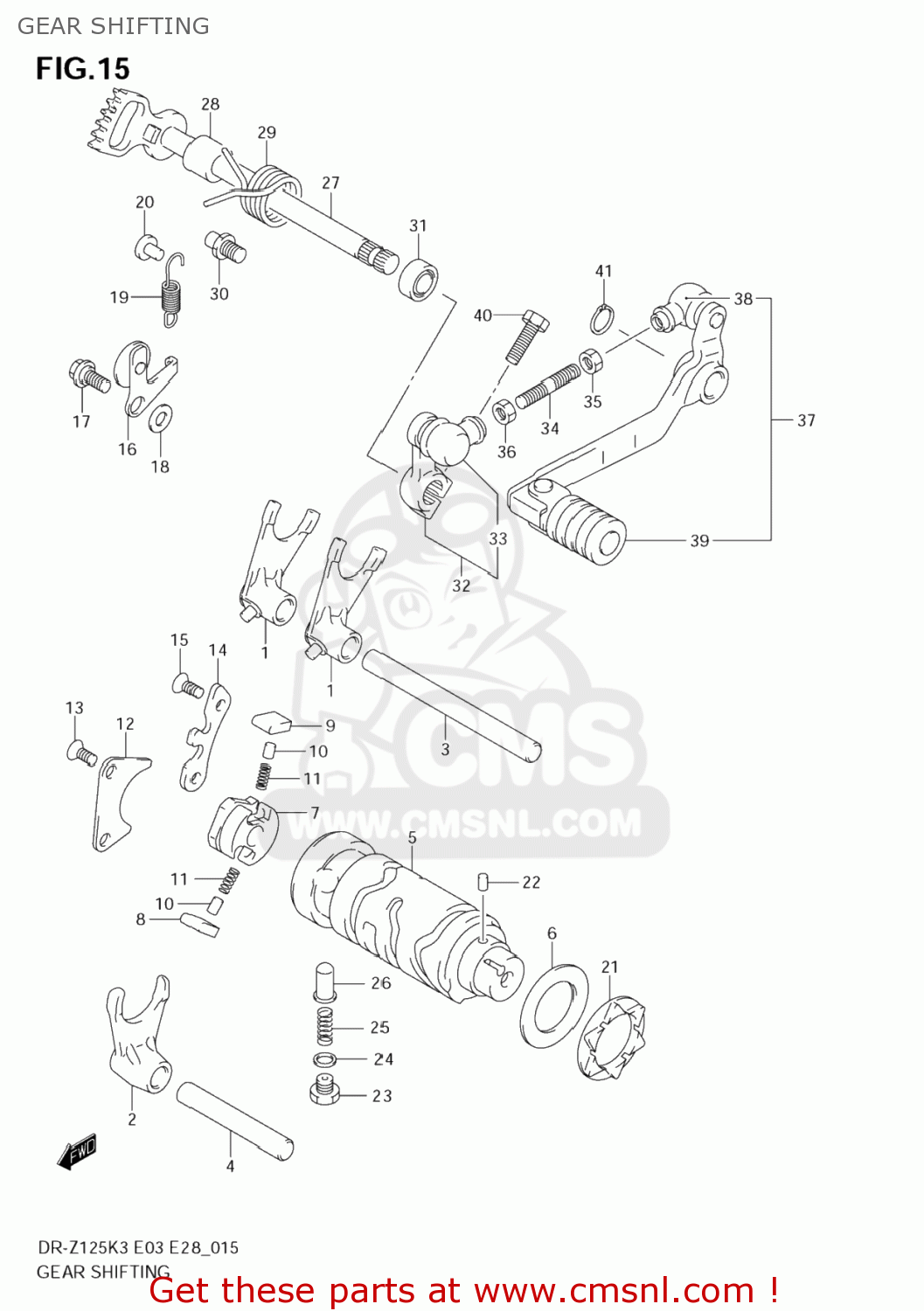

Gear shifting diagram DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L

GEAR SHIFTING DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L
GEAR SHIFTING DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L
GEAR SHIFTING DR-Z125L 2007 (K7) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3
2541116701
ref: 3
SHAFT,GEAR SHIFT FORK(L:109)
2541116701
€ 11.50
4
2542135410
ref: 4
SHAFT,GEAR SHIFT FORK NO.2
2542135410
€ 19.00
5
2531008G00
ref: 5
CAM,GEAR SHIFT
€ 76.00
6
0918125251
ref: 6
SHIM(25X40X1)
0918125251
€ 2.50
7
2532231310
ref: 7
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
2533130001
€ 3.50
13
0912606011
ref: 13
SCREW(6X12)
0912606011
€ 2.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0912606011
ref: 15
SCREW(6X12)
0912606011
€ 2.00
16
2535044A00
ref: 16
STOPPER,GEAR SHIFT CAM
2535044A00
€ 8.00
17
0911106054
ref: 17
BOLT(6X14.6)
0911106054
€ 1.50
18
0821106141
ref: 18
WASHER
0821106141
€ 2.50
19
0944308044
ref: 19
SPRING
0944308044
€ 1.50
20
0922304001
ref: 20
RIVET
0922304001
€ 1.50
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
22
0422104069
ref: 22
PIN
0422104069
€ 2.00
23
0924714012
ref: 23
09247-14026
PLUG (14X12)
0924714012
€ 3.50
24
0916814002
ref: 24
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
25
0944011014
ref: 25
SPRING
0944011014
€ 1.50
26
2535130010
ref: 26
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
2551005201
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
0918012068
€ 3.00
29
0944426001
ref: 29
SPRING
0944426001
€ 4.00
30
2567101011
ref: 30
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
0928512002
€ 7.00
32
2552008G00
ref: 32
ARM,GEAR SHIFT LINK
€ 31.50
33
2552647000
ref: 33
COVER,DUST
2552647000
€ 3.50
34
2552508G00
ref: 34
ROD,GEAR SHIFT LINK
€ 6.00
35
0914006025
ref: 35
NUT
0914006025
€ 2.00
36
0831000067
ref: 36
NUT
0831000067
€ 2.50
37
2560008G00
ref: 37
LEVER ASSY,GEAR SHIFT
€ 39.00
38
2552647000
ref: 38
COVER,DUST
2552647000
€ 3.50
39
2565203D00
ref: 39
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.50
40
0150006203
ref: 40
01500-0620A
BOLT
0150006203
€ 2.00
41
0833131126
ref: 41
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
