FRONT DAMPER (DR-Z125L)

DR-Z125L 2008 (K8) USA (E03) DRZ125L DR Z125L

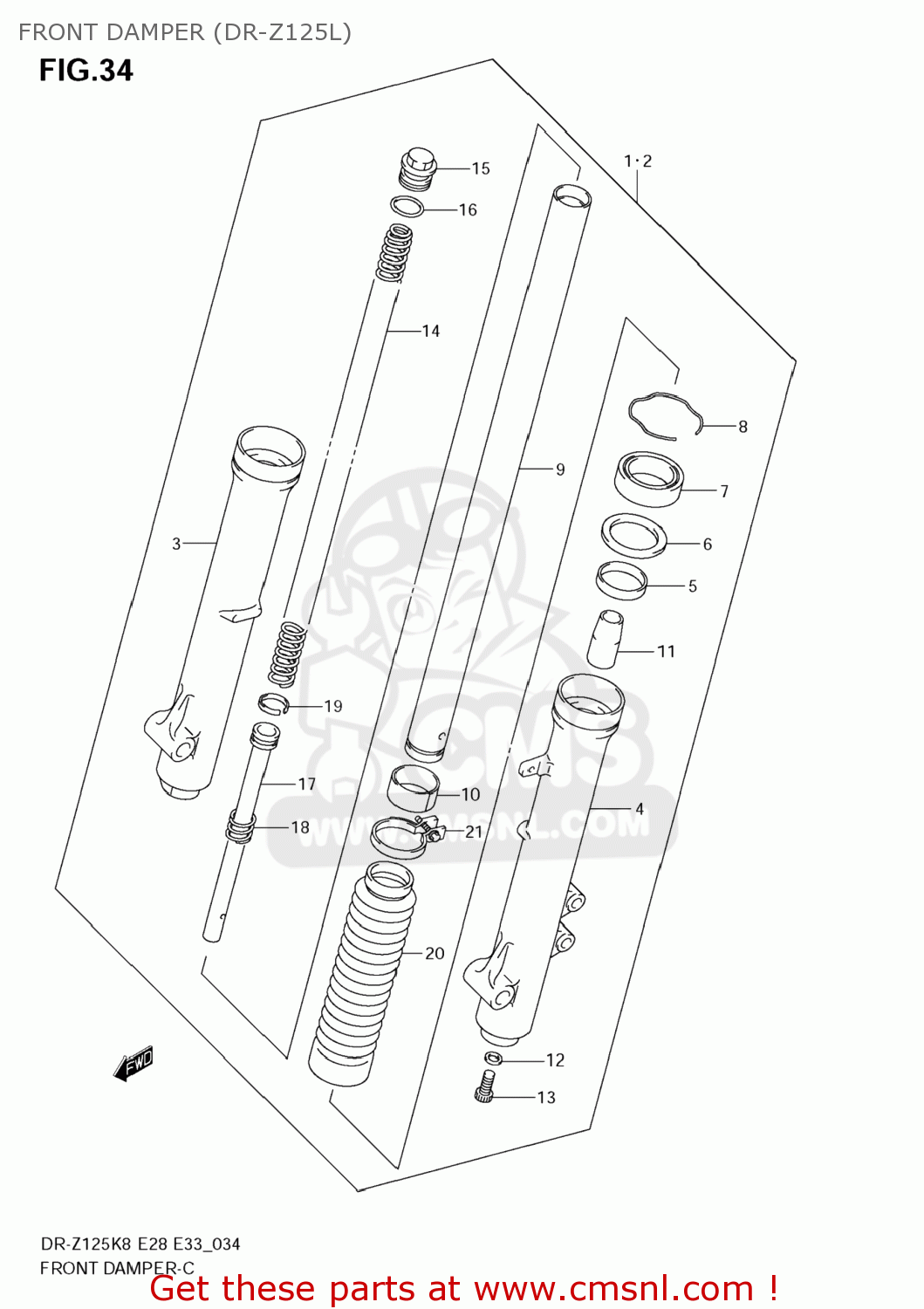

Front damper (dr-z125l) diagram DR-Z125L 2008 (K8) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

5110308G60
ref: 1

DAMPER ASSY,FR FORK,R

€ 371.00

5110408G60
ref: 2

DAMPER ASSY,FR FORK,L

€ 371.00

5113008G10
ref: 3

TUBE,OUTER,R

€ 180.00

5114008G10
ref: 4

TUBE,OUTER,L

€ 180.00

5115243EC0
ref: 5

BUSH,GUIDE

€ 9.50

5116843EC0
ref: 6

SPACER,SEAL

€ 6.50

5115348420
ref: 7

SEAL,OIL

€ 11.00

5115648730
ref: 8

SEAL,OIL STOPPER RING

€ 2.50

5111008G00
ref: 9

TUBE,INNER

€ 151.00

5112108G00
ref: 10

BUSH,SLIDE

€ 13.00

5119548000
ref: 11

PIECE,OIL LOCK

€ 8.50

5114836011
ref: 12

GASKET (NAS)

€ 4.00

5114748130
ref: 13

BOLT(8X27)

€ 3.50

5117108G00
ref: 14

SPRING,FR

€ 31.00

5135148000
ref: 15

BOLT

€ 12.00

5118125030
ref: 16

O RING

€ 3.00

5114608G00
ref: 17

CYLINDER

€ 28.50

5117708G00
ref: 18

SPRING,REBOUND

€ 6.00

5119648000
ref: 19

RING

€ 5.50

5157108G40
ref: 20

BOOT

€ 27.50

5157508G00
ref: 21

BAND

€ 5.50
