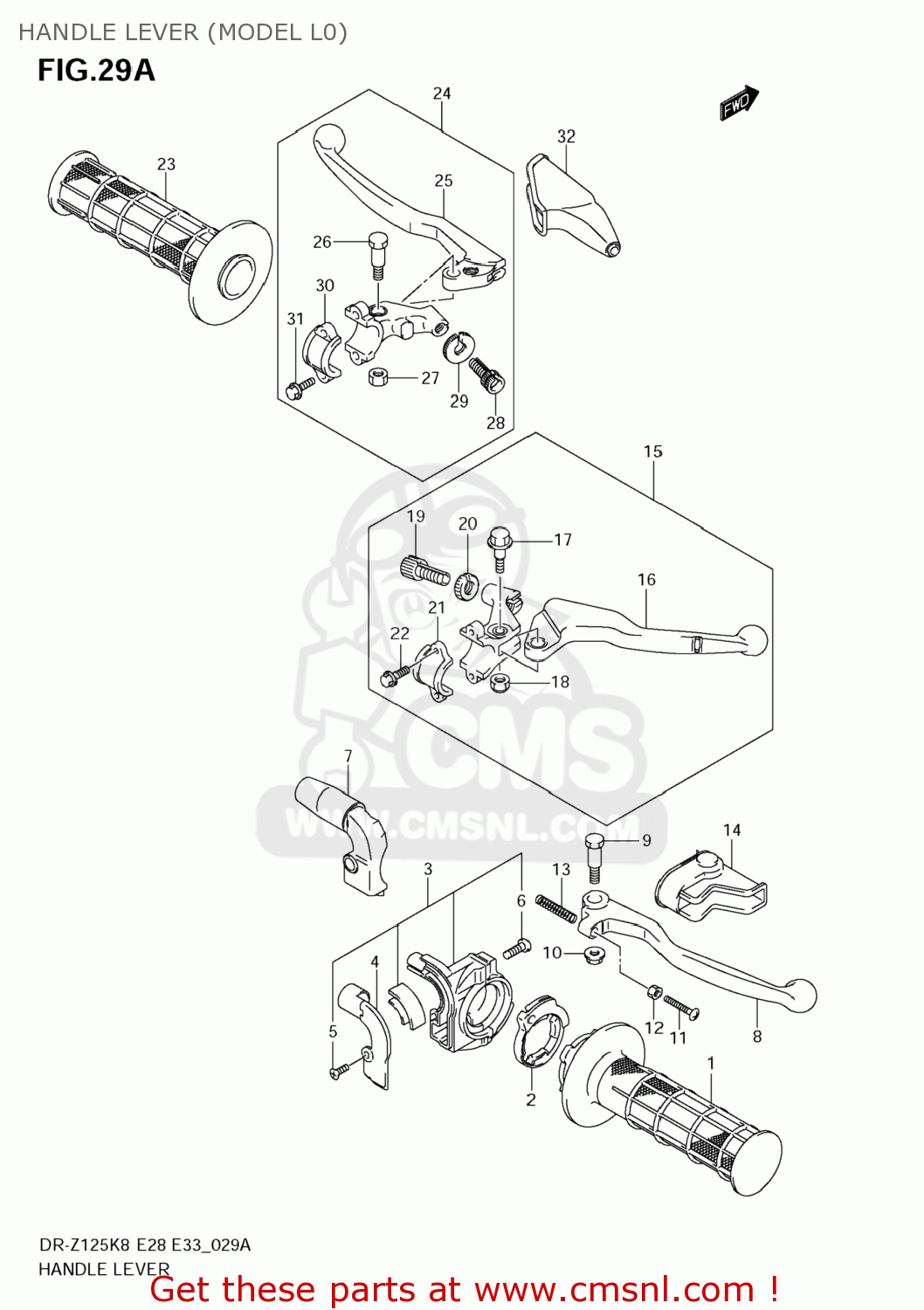

HANDLE LEVER (MODEL L0)

ref

part #

description

quantity

1

5711027C00
ref: 1

GRIP,THROTTLE

€ 25.00

2

5711420430
ref: 2

ROTER,THROTTLE

€ 5.50

3

5710003D10
ref: 3

CASE ASSY,THROTTLE

€ 30.00

4

5712903D10
ref: 4

COVER

€ 13.00

5

021220410B
ref: 5

SCREW

€ 2.50

6

0211205167
ref: 6

SCREW

€ 2.50

7

5712908G00
ref: 7

COVER,THROTTLE CASE

€ 12.50

8

5742127C00
ref: 8

LEVER,BRAKE

€ 11.00

9

5743114500
ref: 9

BOLT,BRAKE LEVER

€ 4.00

10

083161006B
ref: 10

NUT

€ 2.50

11

5743114511
ref: 11

BOLT,ADJUST

€ 3.50

12

083100005B
ref: 12
08310-0005A

NUT

€ 2.50

13

5731814502
ref: 13

SPRING,RETURN

€ 3.00

14

5734114501
ref: 14

COVER,BRAKE LEVER

€ 5.00

15

5730014320
ref: 15

LEVER ASSY,BRAKE

€ 64.00

16

5742014320
ref: 16

LEVER,BRAKE

€ 31.00

17

5743114320
ref: 17

BOLT,LEVER PIVOT

€ 13.00

18

083192106A
ref: 18

NUT

€ 2.00

19

5744145C00
ref: 19

ADJUSTER,WIRE

€ 8.50

20

5744245C00
ref: 20

NUT,LOCK

€ 7.50

21

5751237F00
ref: 21

HOLDER

€ 13.50

22

0910306235
ref: 22
01547-06207

BOLT,6X20

€ 2.50

23

5721127C00
ref: 23

GRIP,L

€ 11.00

24

5750014320
ref: 24

LEVER ASSY,CLUTCH

€ 45.50

25

5762113E00
ref: 25

LEVER,CLUTCH

€ 17.00

26

5743121D11
ref: 26

BOLT,LEVER PIVOT

€ 10.50

27

083192106A
ref: 27

NUT

€ 2.00

28

5744129F00
ref: 28

ADJUSTER,WIRE

€ 8.50

29

5744245C00
ref: 29

NUT,LOCK

€ 7.50

30

5751228C00
ref: 30

BRACKET,CLUTCH LEVER HOLDER

€ 13.00

31

5751329F10
ref: 31

BOLT,BRACKET

€ 4.50

32-1

5734140002
ref: 32-1

COVER,CLUTCH LEVER

€ 7.50

32-2

5734129F01
ref: 32-2

COVER,CLUTCH CABLE DUST

€ 8.00
