REAR WHEEL (DR-Z125)

DR-Z125L 2008 (K8) USA (E03) DRZ125L DR Z125L

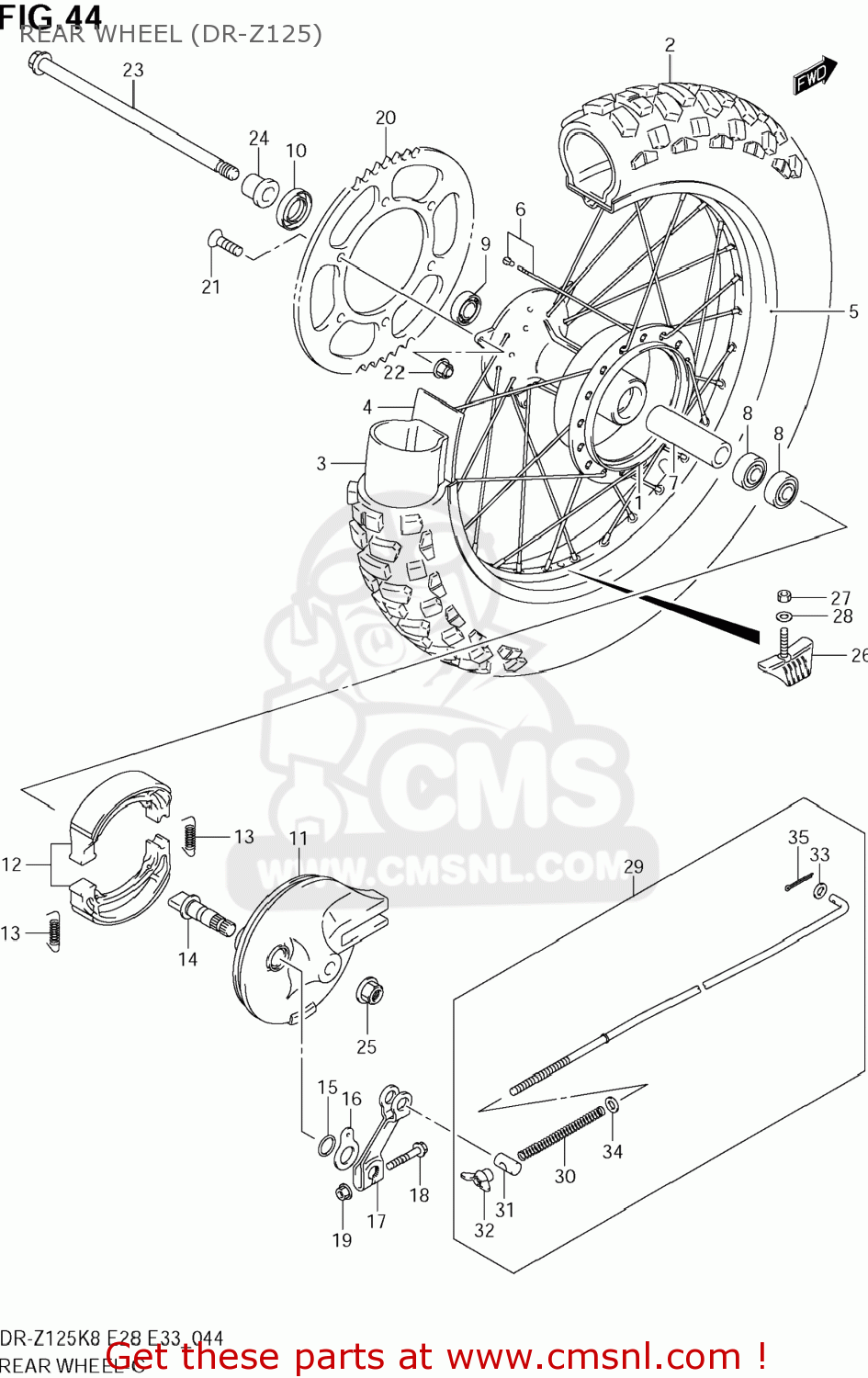

Rear wheel (dr-z125) diagram DR-Z125L 2008 (K8) USA (E03) DRZ125L DR Z125L

REAR WHEEL (DR-Z125) DR-Z125L 2008 (K8) USA (E03) DRZ125L DR Z125L
REAR WHEEL (DR-Z125) DR-Z125L 2008 (K8) USA (E03) DRZ125L DR Z125L
REAR WHEEL (DR-Z125) DR-Z125L 2008 (K8) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
6411008G10
ref: 1
HUB,RR WHEEL
€ 224.50
2
6511008G00
ref: 2
TIRE,RR
€ 72.50
3
6520008G00
ref: 3
TUBE ASSY,WHEEL INNER
€ 25.00
4
5526109D00
ref: 4
PROTECTOR,WHL INR TUBE
5526109D00
€ 3.50
5
6531108G20
ref: 5
RIM,RR WHEEL(14X1.60)
€ 184.50
6
6532008G20
ref: 6
SPOKE SET,RR WHEEL
6532008G20
€ 55.50
7
0918012151
ref: 7
SPACER(12.5X19X45.5)
€ 5.50
8
0814362017
ref: 8
BEARING
0814362017
€ 11.50
9
0812363010
ref: 9
08123-63017
BEARING
€ 13.50
10
0928320025
ref: 10
SEAL,OIL(20X37X7)
0928320025
€ 6.50
11
6421008G00
ref: 11
PANEL,RR BRAKE ANCHOR
€ 85.00
12
5440143840
ref: 12
SHOE SET,BRAKE (NAS)
5440143840
€ 24.00
13
0944307044
ref: 13
SPRING
0944307044
€ 3.00
14
6444113G00
ref: 14
CAM,RR BRAKE
€ 12.50
15
0928014011
ref: 15
O RING(D:2.5,ID:13.8)
0928014011
€ 3.50
16
5449213G00
ref: 16
PLATE,BRAKE LINING INDICATOR
€ 5.50
17
6445108G00
ref: 17
LEVER,RR BRAKE CAM
€ 13.50
18
015500635A
ref: 18
BOLT
015500635A
€ 2.50
19
083161006A
ref: 19
NUT
083161006A
€ 2.50
20
6451108G00
ref: 20
SPROCKET,RR(51T-428)
€ 43.50
21
0912008010
ref: 21
BOLT(8X30.5)
0912008010
€ 2.50
22
083193108A
ref: 22
NUT
083193108A
€ 2.50
23
6471108G00
ref: 23
AXLE,RR
6471108G00
€ 24.50
24
6475108G00
ref: 24
SPACER,RR AXLE
€ 10.00
25
083193112A
ref: 25
NUT
083193112A
€ 4.00
26
6527008G00
ref: 26
STOPPER,BEAD
6527008G00
€ 34.00
27
083100008A
ref: 27
NUT
083100008A
€ 2.00
28
083220108A
ref: 28
WASHER
083220108A
€ 2.00
29
4330008G00
ref: 29
ROD ASSY,RR BRAKE
€ 13.00
30
0944009004
ref: 30
SPRING
0944009004
€ 2.00
31
0920911002
ref: 31
PIN(11X18)
0920911002
€ 2.00
32
0914406005
ref: 32
NUT
0914406005
€ 2.50
33
083220105A
ref: 33
WASHER
083220105A
€ 2.50
34
083220106A
ref: 34
WASHER
083220106A
€ 2.00
35
041112020A
ref: 35
PIN
041112020A
€ 1.50
