CRANKCASE

DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

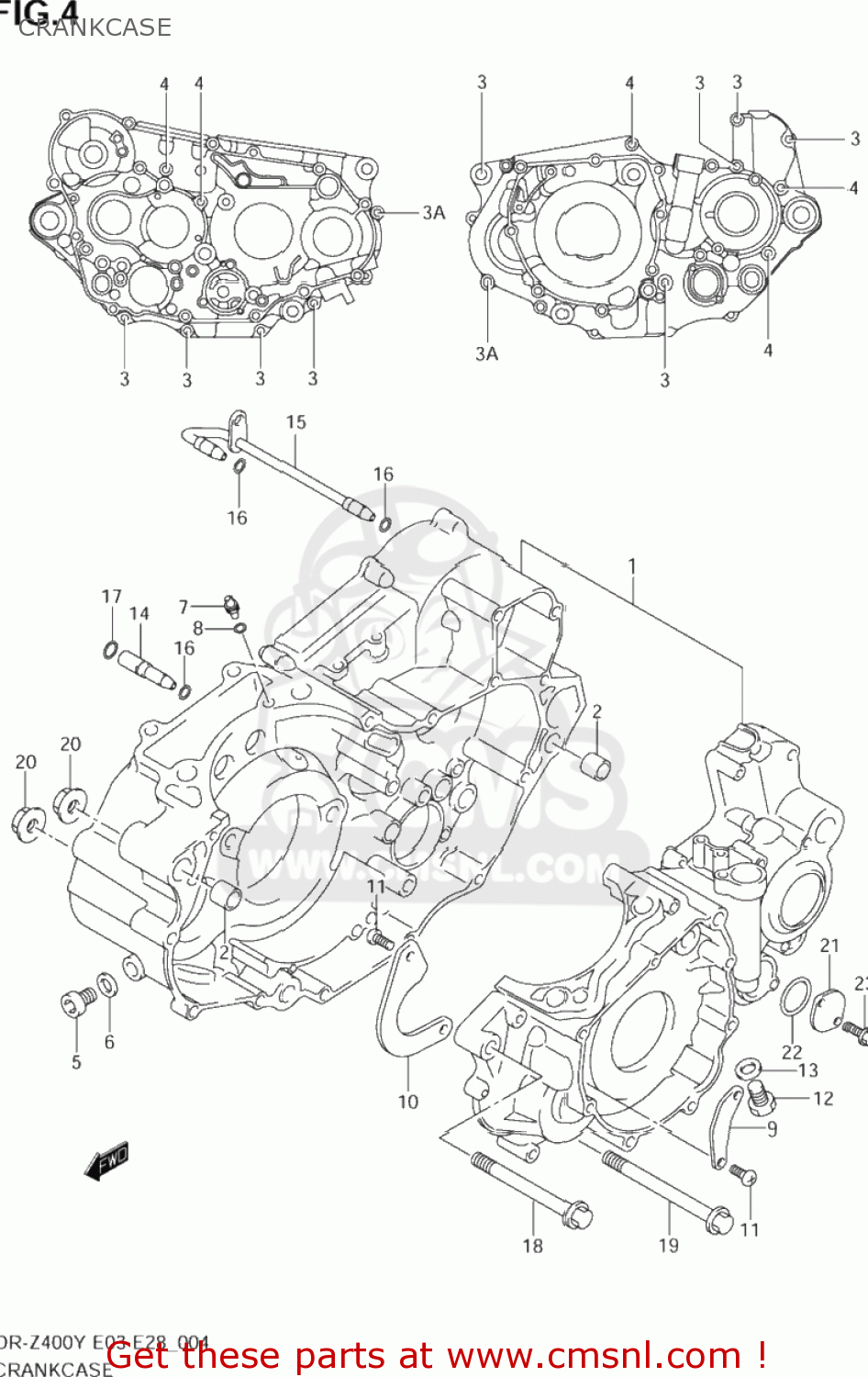

Crankcase diagram DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

CRANKCASE DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400
CRANKCASE DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400
CRANKCASE DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity
1
1130129851
ref: 1
11301-29853
CRANKCASE SET
€ 835.00
2
0421113189
ref: 2
PIN
0421113189
€ 2.50
3
0154706403
ref: 3
01547-0640B
BOLT
0154706403
€ 3.00
3A
0154706553
ref: 3A
01547-0655B
BOLT
0154706553
€ 3.00
4
0154706703
ref: 4
01547-0670B
BOLT
€ 3.00
5
0924810010
ref: 5
PLUG(10X10)
0924810010
€ 4.00
6
0916810002
ref: 6
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
7
0949380005
ref: 7
JET(8)
0949380005
€ 12.00
8
0928004004
ref: 8
O RING(D:1.2,ID:4)
0928004004
€ 2.00
9
1132329F00
ref: 9
SEPARATOR,CRANKCASE OIL NO.1
1132329F00
€ 2.00
10
1132429F00
ref: 10
SEPARATOR,CRANKCASE OIL NO.2
1132429F00
€ 3.50
11
0912506086
ref: 11
SCREW(6X12)
0912506086
€ 2.00
12
0924712011
ref: 12
PLUG(12X20)
0924712011
€ 4.50
13
0916812002
ref: 13
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
14
1145129F00
ref: 14
PIPE,OIL INNER NO.1
1145129F00
€ 14.50
15
1146029F00
ref: 15
PIPE,T/M OIL INNER NO.2
1146029F00
€ 51.00
16
0928005004
ref: 16
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
17
0928007004
ref: 17
O RING(D:1.9,ID:6.8)
0928007004
€ 1.50
18
0910310110
ref: 18
BOLT(10X100)
0910310110
€ 6.50
19
0910310063
ref: 19
BOLT(10X115)
0910310063
€ 5.00
20
0915910058
ref: 20
09159-10115
NUT
0915910058
€ 4.00
21
1145146000
ref: 21
CAP,GEAR SHIFT CAM PIVOT
1145146000
€ 2.50
22
0928026005
ref: 22
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
23
0154705103
ref: 23
01547-0510B
BOLT
0154705103
€ 2.50
