FRONT FORK BRACKET

DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

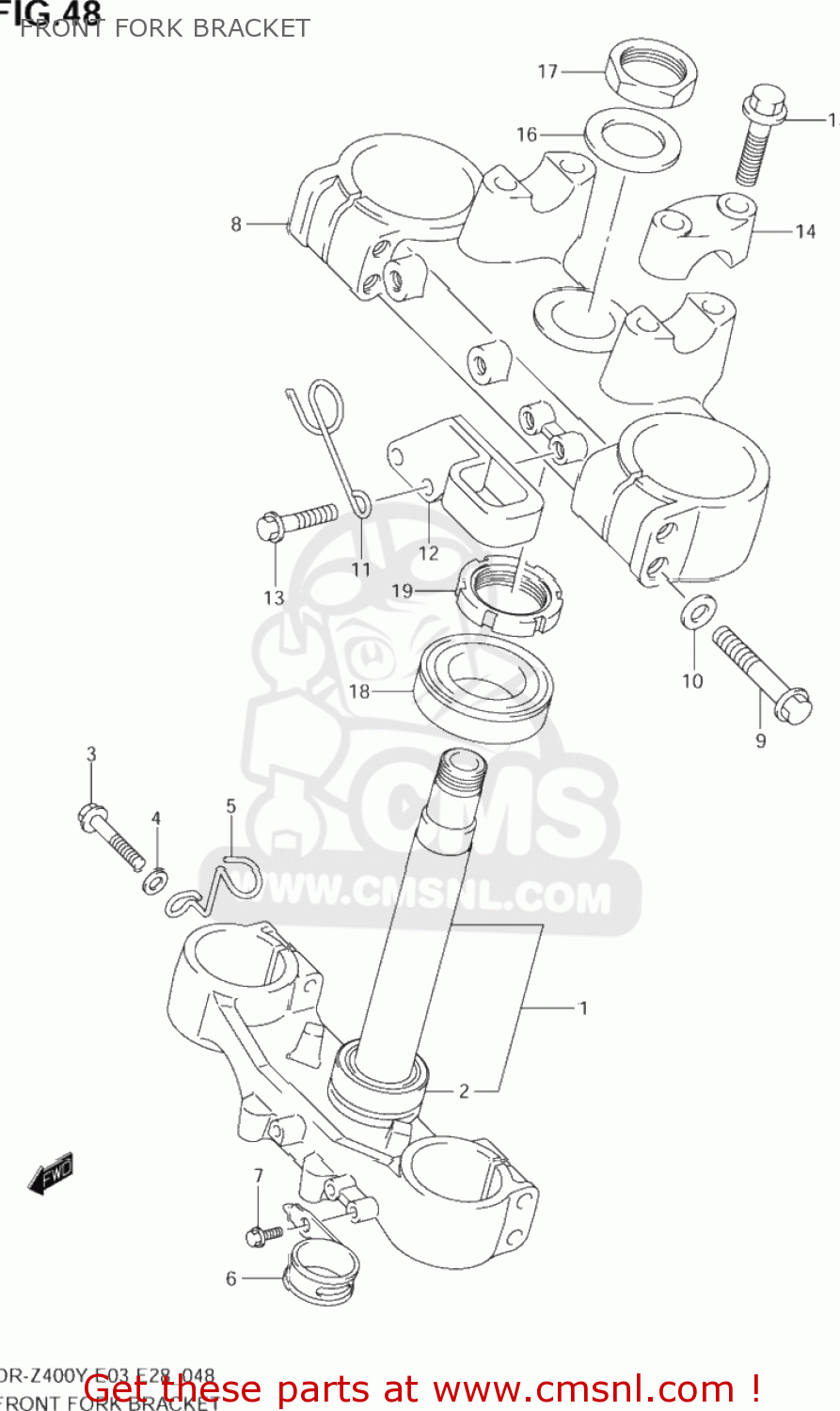

Front fork bracket diagram DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

FRONT FORK BRACKET DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

FRONT FORK BRACKET DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

5141029F00
ref: 1

BRACKET,FR FORK UNDER

€ 1,160.50

2

0926530014
ref: 2

BEARING(30X52X16)

€ 49.50

3

5132836E00
ref: 3

BOLT

€ 4.50

4

5131636E00
ref: 4

WASHER

€ 2.50

5

3493829E01
ref: 5

GUIDE,SPEEDOMETER CABLE

€ 7.50

6

5145329F00
ref: 6

GUIDE,CABLE

€ 52.50

7

5862727C40
ref: 7

BOLT,PROTECTOR(6X10)

€ 2.50

8

5131129F00
ref: 8

BRACKET,FR FORK UPR

€ 327.50

9

5132836E00
ref: 9

BOLT

€ 4.50

10

5131636E00
ref: 10

WASHER

€ 2.50

11

5829427C00
ref: 11

GUIDE,CLUTCH CABLE

€ 8.00

12

5862127C40
ref: 12

GUIDE,HOSE

€ 20.00

13

0154706257
ref: 13

BOLT

€ 2.50

14

5621136F00
ref: 14

HOLDER,HANDLE

€ 13.50

15

5132127C40
ref: 15

BOLT,HANDLE HOLDER(8X35)

€ 3.00

16

5135629E00
ref: 16

WASHER,STEM HEAD

€ 8.00

17

5135327C40
ref: 17

NUT,STEM HEAD

€ 14.50

18

0926530014
ref: 18

BEARING(30X52X16)

€ 49.50

19

5163128E00
ref: 19

NUT,STEERING

€ 11.00
