OIL HOSE

DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

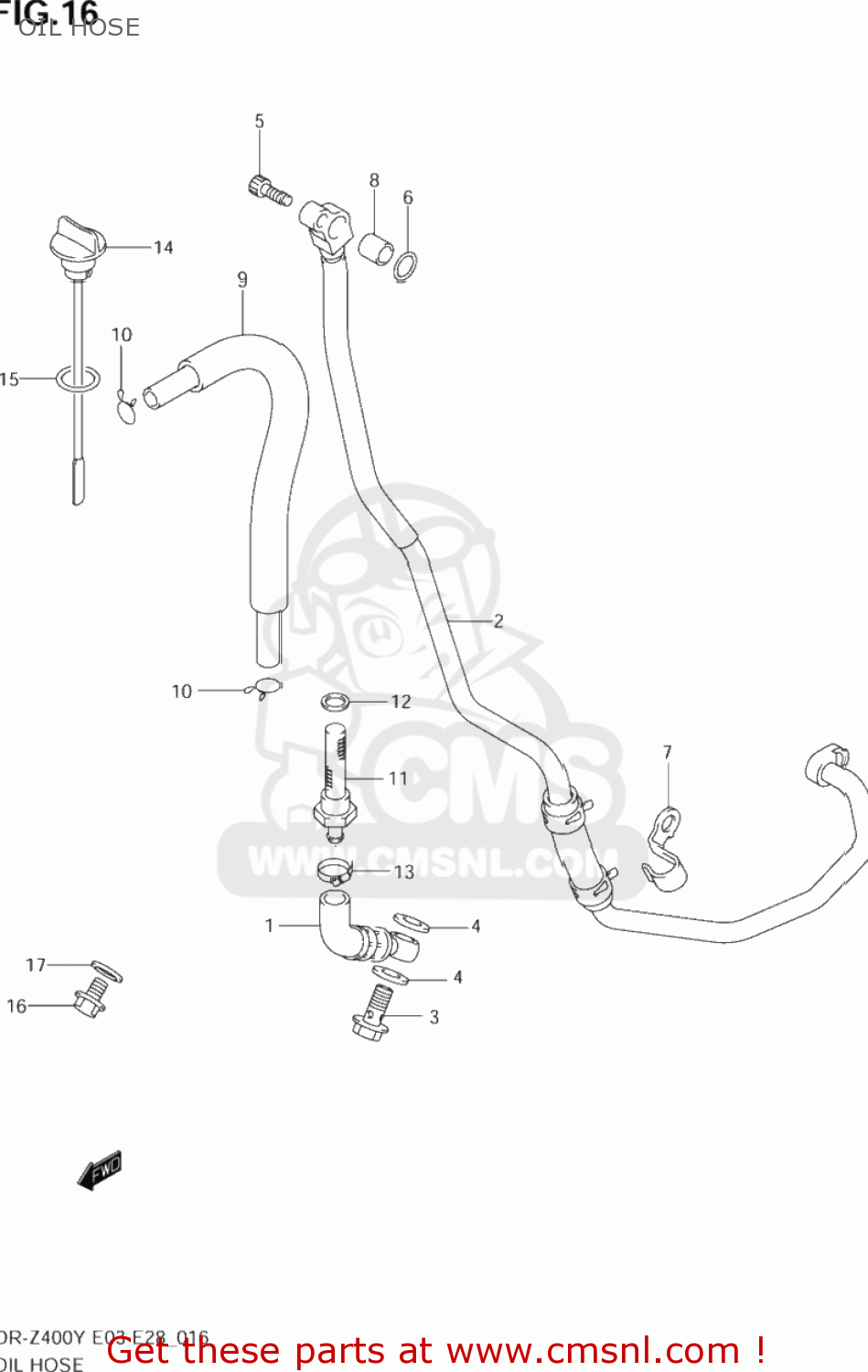

Oil hose diagram DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

OIL HOSE DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

OIL HOSE DR-Z400 2002 (K2) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1-1

1646029F00
ref: 1-1
16460-29F10

HOSE COMP,OIL TANK,RIGHT

€ 48.50

1-2

1646029F10
ref: 1-2

HOSE,OIL TANK,R

€ 48.50

2

1647029F00
ref: 2

HOSE,OIL TANK,L

€ 183.00

3

0936014012
ref: 3

BOLT UNION

€ 10.00

4

0916814015
ref: 4

GASKET(14X20X1.5) (NAS)

€ 1.50

5-1

0712006203
ref: 5-1
07120-0620B

BOLT

€ 3.50

5-2

0712006163
ref: 5-2
07120-0616B

BOLT MAGNETO S

€ 2.50

5-3

0712006203
ref: 5-3
07120-0620B

BOLT

€ 3.50

6

0928011005
ref: 6

O RING(D:2.4,ID:11)

€ 4.50

7-1

1649129F00
ref: 7-1
16491-29F01

CLAMP,OIL TANK HOSE

€ 7.00

7-2

1649129F01
ref: 7-2

CLAMP,OIL TANK HOSE

€ 7.00

8

0421111129
ref: 8

PIN

€ 2.00

9

1648029F00
ref: 9

HOSE,OIL TANK OVER FLOW

€ 14.50

10

0940112403
ref: 10

CLIP

€ 2.00

11

1655029F00
ref: 11

STRAINER,FRAME HEAD UNDER

€ 48.00

12

0916818007
ref: 12

GASKET(18X22X2) (NAS)

€ 2.50

13

0940222511
ref: 13

CLAMP

€ 6.00

14-1

1656029F00
ref: 14-1
16561-29F10

GAUGE COMP,OIL LEVEL

€ 9.00

14-2

1656129F10
ref: 14-2

GAUGE,OIL LEVEL

€ 9.00

15

0928017003
ref: 15

O RING(D:3.1,ID:16.8)

€ 2.00

16

0924710008
ref: 16

PLUG(10X12)

€ 3.00

17

0916810002
ref: 17

GASKET(10X14X3.6) (NAS)

€ 2.00
