CRANK BALANCER

DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400

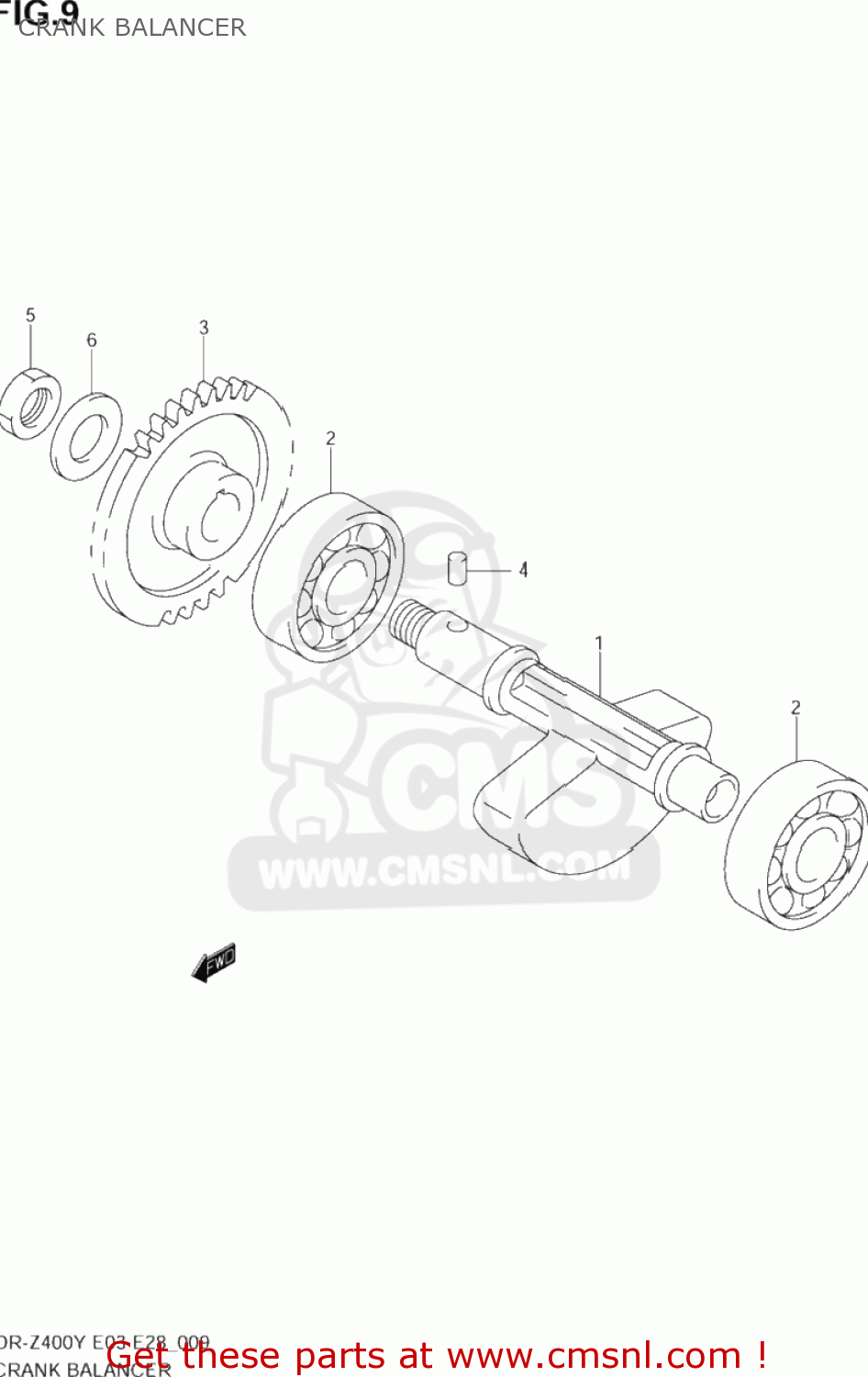

Crank balancer diagram DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400

CRANK BALANCER DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400

CRANK BALANCER DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

1265129F00
ref: 1

BALANCER,CRANK

€ 117.00

2

0926215030
ref: 2

BEARING(15X42X13)

€ 28.50

3

1266629F00
ref: 3

GEAR,CRANK BALANCER DRIVEN

€ 118.00

4

0926105005
ref: 4

PIN(5X8)

€ 2.00

5

0914012038
ref: 5

NUT

€ 4.50

6

0916012089
ref: 6

WASHER(12.5X26X1.6)

€ 2.50
