FRONT CALIPER

DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400

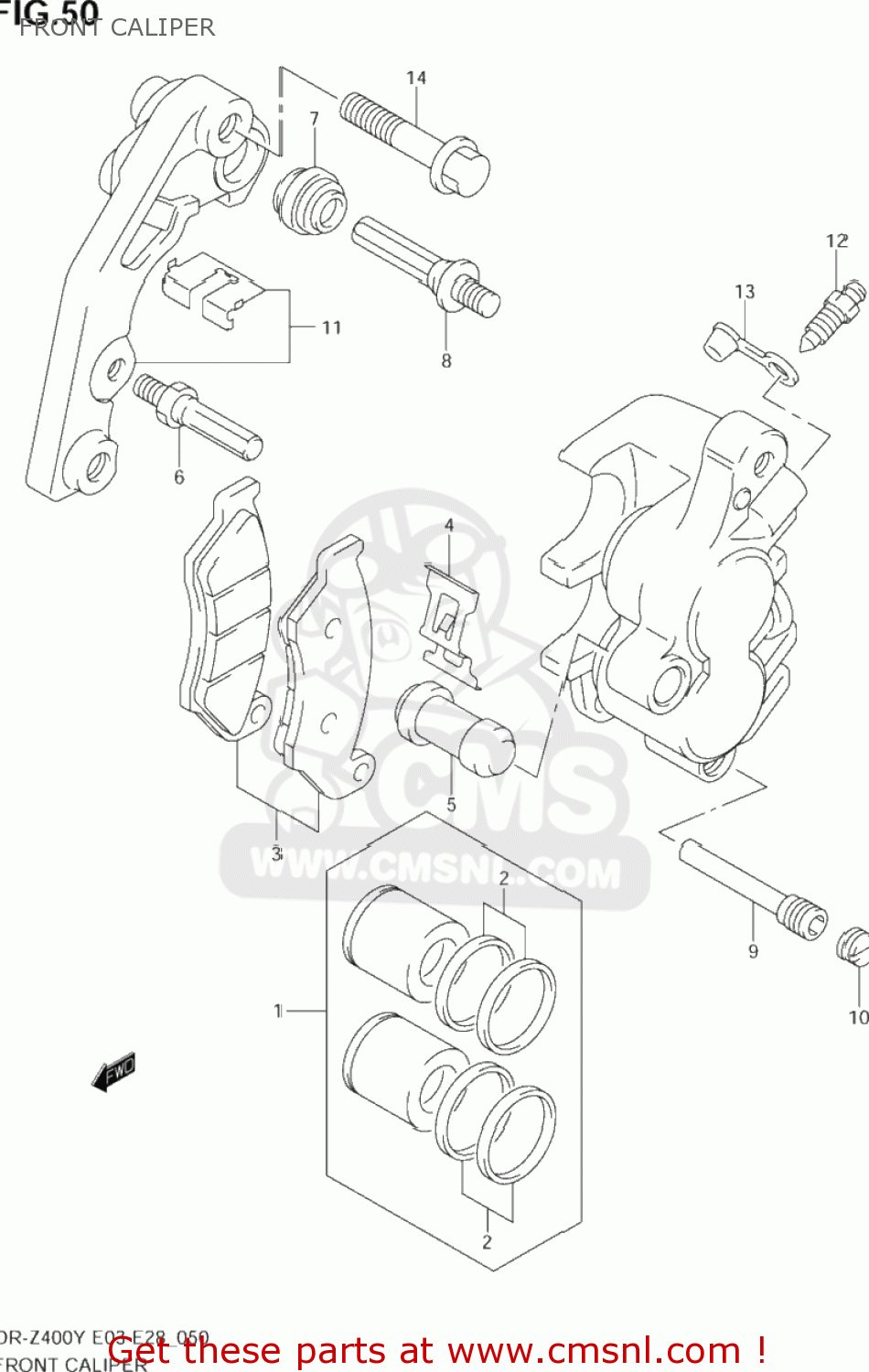

Front caliper diagram DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400

FRONT CALIPER DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400
FRONT CALIPER DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400
FRONT CALIPER DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity

5930013E20
ref:
59300-13E01-999
CALIPER ASSEMBLY,FRONT,LEFT
€ 408.50

5930013E20
ref:
59300-13E01-999
CALIPER ASSEMBLY,FRONT,LEFT
€ 408.50
1
5930027840
ref: 1
PISTON SET
5930027840
€ 47.50
2
5930013820
ref: 2
SEAL SET,PISTON
5930013820
€ 37.50
3
5930036880
ref: 3
PAD SET (NAS)
5930036880
€ 42.00
4
5931513E00
ref: 4
SPRING,PAD
5931513E00
€ 13.00
5
5938613A00
ref: 5
BOOT
5938613A00
€ 6.50
6
5938227C30
ref: 6
BOLT
5938227C30
€ 8.00
7
5930314500
ref: 7
BOOT
5930314500
€ 5.50
8
5930527C00
ref: 8
PIN
5930527C00
€ 14.50
9
5934513E00
ref: 9
PIN,HANGER
5934513E00
€ 14.50
10
5914621E10
ref: 10
PLUG,PIN
5914621E10
€ 7.50
11
5935013E00
ref: 11
BRACKET
5935013E00
€ 98.00
12
5912101A00
ref: 12
BLEEDER
5912101A00
€ 9.00
13
5912201A00
ref: 13
CAP,BLEEDER
5912201A00
€ 5.00
14
0910308338
ref: 14
BOLT(8X40)
0910308338
€ 4.00
