RADIATOR (MODEL Y/K1)

DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400

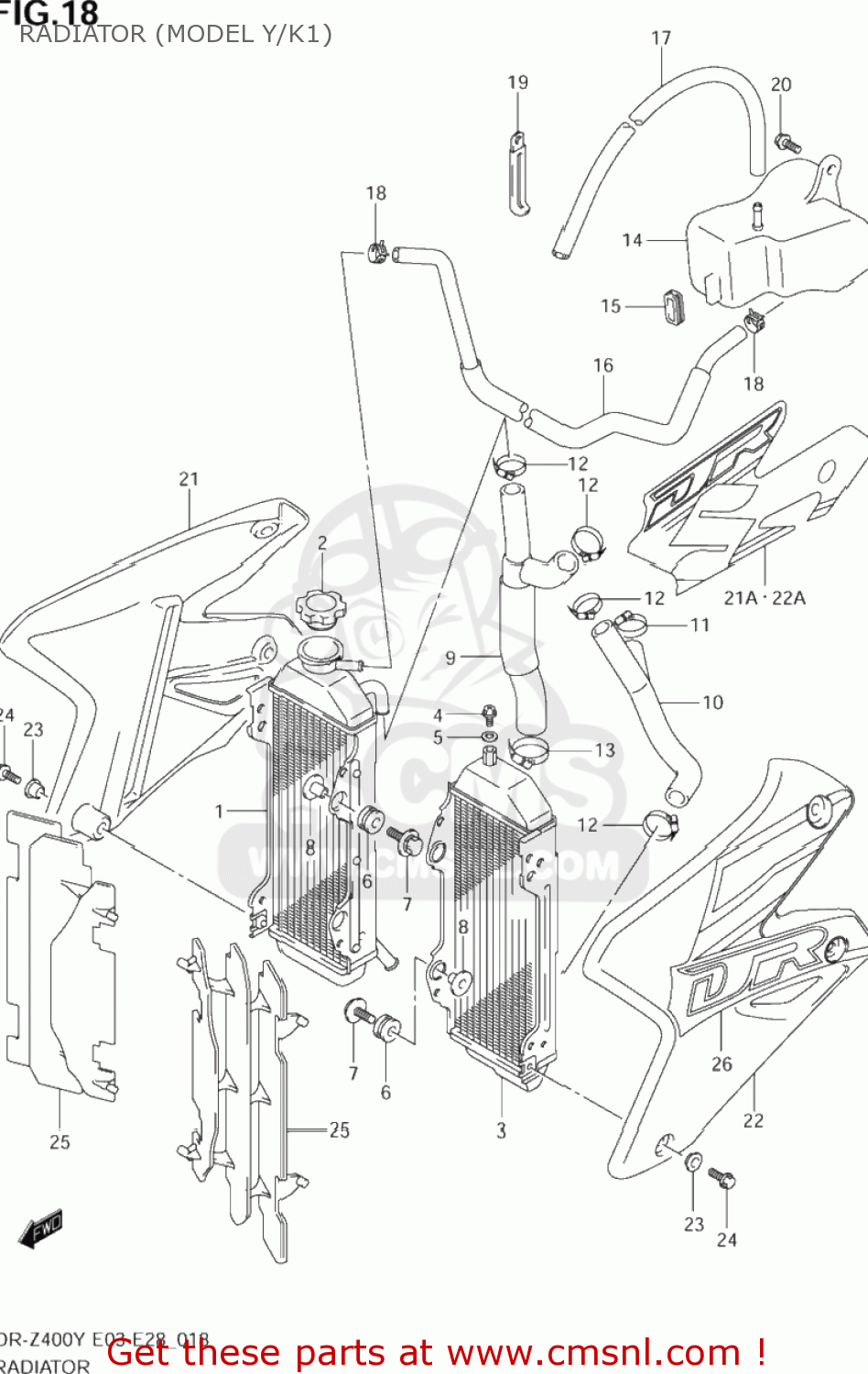

Radiator (model y/k1) diagram DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400

RADIATOR (MODEL Y/K1) DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400
RADIATOR (MODEL Y/K1) DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400
RADIATOR (MODEL Y/K1) DR-Z400 2004 (K4) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity
1
1771029F00
ref: 1
RADIATOR,WATER,R
€ 371.50
2
1773012C30
ref: 2
CAP,RADIATOR
1773012C30
€ 33.50
3
1772029F00
ref: 3
RADIATOR,WATER,L
€ 411.00
4
1756850F00
ref: 4
UNION BOLT,AIR VENT
1756850F00
€ 3.50
5
0916806026
ref: 5
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
6
1778719A00
ref: 6
CUSHION,RADIATOR LWR
1778719A00
€ 3.50
7
0911606147
ref: 7
BOLT(6X25)
0911606147
€ 4.00
8
0918006243
ref: 8
SPACER(6.5X10.5X14.1)
0918006243
€ 4.50
9
1785129F00
ref: 9
HOSE,RADIATOR INLET
1785129F00
€ 40.00
10
1785229F00
ref: 10
HOSE,RADIATOR OUTLET
1785229F00
€ 40.50
11
0940228511
ref: 11
CLAMP
0940228511
€ 8.50
12
0940222511
ref: 12
CLAMP
0940222511
€ 6.00
13
0940232511
ref: 13
CLAMP
0940232511
€ 11.50
14-1
1791129F10
ref: 14-1
17911-29F11
TANK,RESERVOIR
€ 39.50
14-2
1791129F11
ref: 14-2
TANK,RESERVOIR
1791129F11
€ 39.50
15
1791329F00
ref: 15
CUSHION,RESERVOIR TANK
1791329F00
€ 3.00
16-1
1798129F00
ref: 16-1
17981-29F01
HOSE,RESERVOIR TANK INLET
€ 13.50
16-2
1798129F01
ref: 16-2
HOSE,RESERVOIR TANK INLET
1798129F01
€ 13.50
17
093525090100B
ref: 17
HOSE(5X9X2000)
093525090100B
€ 19.50
18
0940108411
ref: 18
CLIP
0940108411
€ 3.00
19-1
0940408205
ref: 19-1
CLAMP(L:45 T:0.6)
0940408205
€ 3.00
19-2
0940406432
ref: 19-2
CLAMP(L:65)
0940406432
€ 2.50
20
0155006123
ref: 20
01550-0612A
BOLT
0155006123
€ 2.50
21A
6866529F10DY9
ref: 21A
TAPE,RADIATOR COVER,R
€ 35.50
21-1
1776129F0030H
ref: 21-1
COVER,RADIATOR,R
1776129F0030H
€ 36.00
21-2
1776029F10YR1
ref: 21-2
17760-29F10-YU1
COVER,RADIATOR
1776029F10YR1
€ 55.50
22A
6867529F10DY9
ref: 22A
TAPE,RADIATOR COVER,L
€ 38.00
22-1
1776229F0030H
ref: 22-1
COVER,RADIATOR,L(WHITE)
€ 36.00
22-2
1777029F10YR1
ref: 22-2
17770-29F40-YU1
COVER,RADIATOR
1777029F10YR1
€ 68.00
23
0916906060
ref: 23
WASHER
0916906060
€ 2.00
24
0154706123
ref: 24
01547-0612B
BOLT
0154706123
€ 2.00
25
1783137E11
ref: 25
LOUVER,RADIATOR
1783137E11
€ 11.50
26-1
6866529F30YK6
ref: 26-1
TAPE,RADIATOR COVER,R
€ 55.50
26-2
6867529F30YK6
ref: 26-2
TAPE,RADIATOR COVER,L
€ 58.50
