FUEL TANK (MODEL K4)

DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

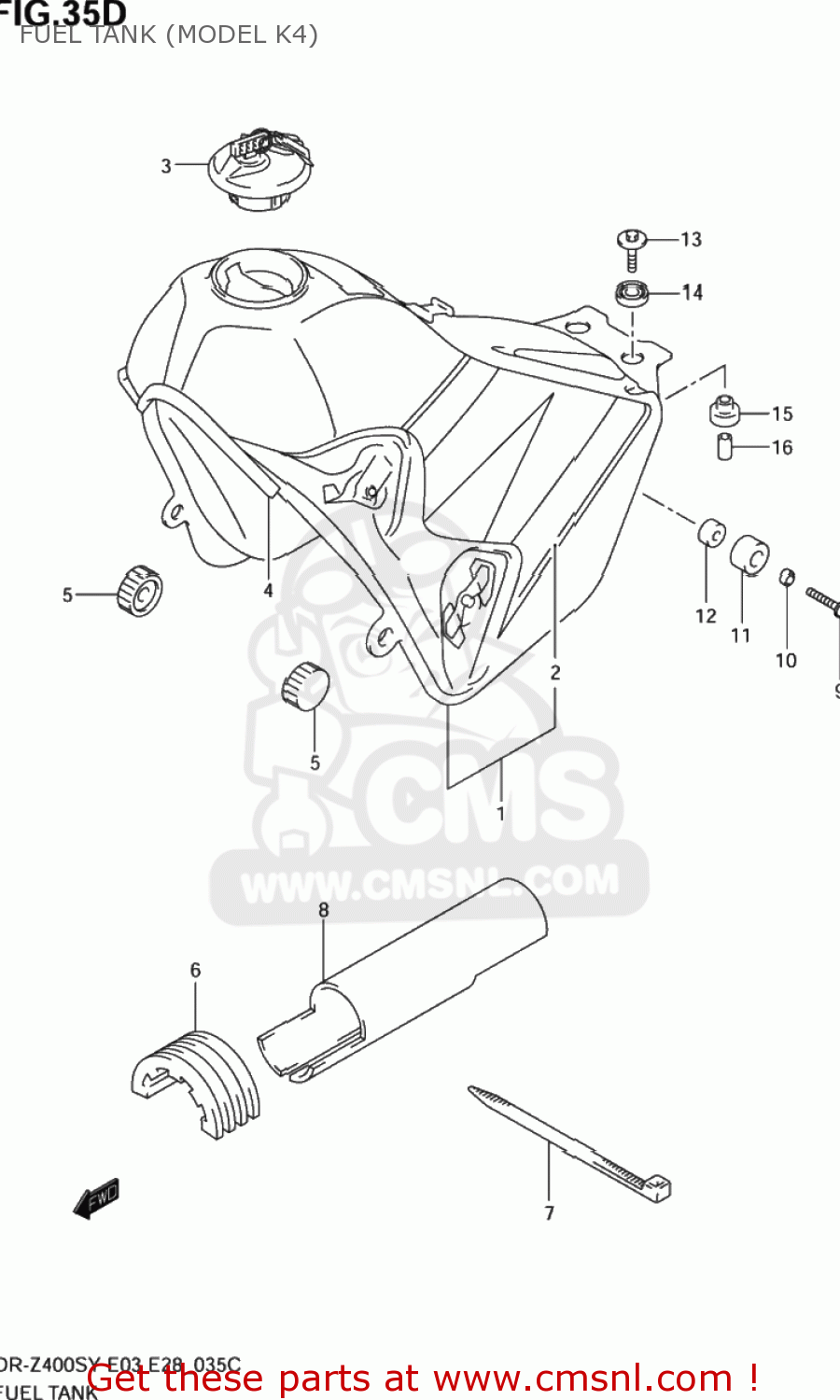

Fuel tank (model k4) diagram DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

FUEL TANK (MODEL K4) DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S
FUEL TANK (MODEL K4) DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S
FUEL TANK (MODEL K4) DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1-1
4410029FD0YU1
ref: 1-1
TANK ASSY,FUEL(YELLOW)
€ 0.00
1-2
4410029FD0YC2
ref: 1-2
TANK ASSY,FUEL(BLUE)
€ 0.00
1-3
4410029FE0YU1
ref: 1-3
TANK ASSY,FUEL(YELLOW)
€ 0.00
1-4
4410029FE0YC2
ref: 1-4
TANK ASSY,FUEL(BLUE)
€ 0.00
2-1
6811029F90NU8
ref: 2-1
TAPE SET,FUEL TANK
€ 108.00
2-2
6811029F90NU9
ref: 2-2
TAPE SET,FUEL TANK
€ 103.00
3-1
4420029820
ref: 3-1
CAP SET,FUEL TANK
€ 112.50
3-2
4420005820
ref: 3-2
CAP SET,FUEL TANK
4420005820
€ 103.50
4
6824104X5000B
ref: 4
MOLDING
6824104X5000B
€ 23.00
5
0932910016
ref: 5
CUSHION
0932910016
€ 3.00
6
4454129F00
ref: 6
CUSHION,FUEL TANK
€ 21.50
7
0940730402
ref: 7
CLAMP(L:300)
0940730402
€ 3.50
8
4419429F00
ref: 8
SHIELD,FUEL TANK
4419429F00
€ 38.50
9
0211216303
ref: 9
02112-1630B
SCREW
0211216303
€ 2.00
10
0918006215
ref: 10
SPACER(6.5X20X9)
0918006215
€ 5.00
11
4514914D00
ref: 11
CUSHION
4514914D00
€ 3.00
12
0918006306
ref: 12
SPACER(6.5X9X5)
0918006306
€ 2.00
13
0911606172
ref: 13
BOLT(6X30)
0911606172
€ 2.50
14
0932014022
ref: 14
CUSHION
0932014022
€ 4.00
15
0932010020
ref: 15
CUSHION
0932010020
€ 4.00
16
0918006271
ref: 16
SPACER(6.5X9X18)
0918006271
€ 2.00
