TAIL LAMP

DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

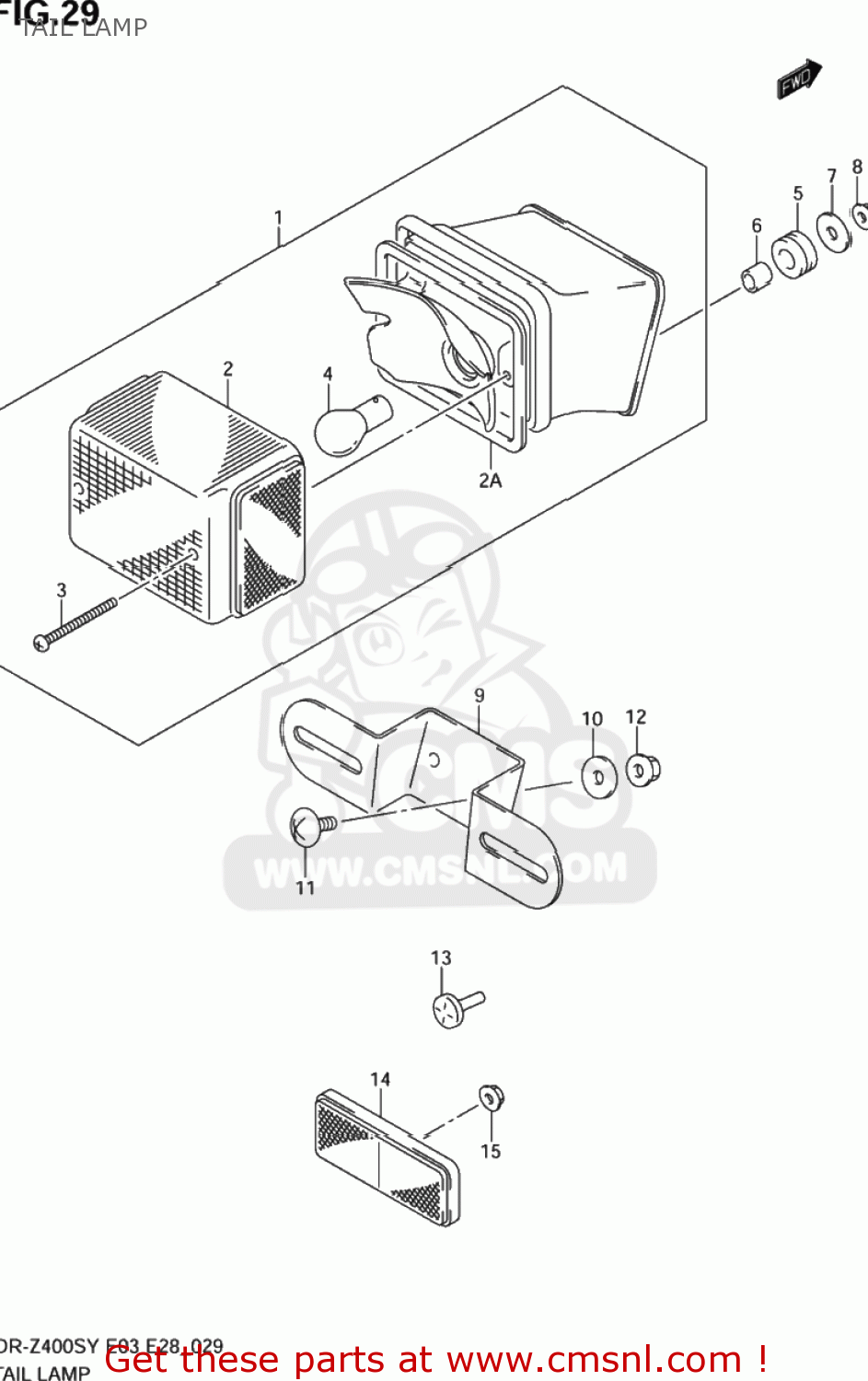

Tail lamp diagram DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

TAIL LAMP DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

TAIL LAMP DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

3571029F30
ref: 1

LAMP ASSY,RR COMBINATION

€ 120.00

2

3571227F30
ref: 2
35712-42A30

LENS

€ 26.00

2A

3571314D30
ref: 2A

GASKET,LENS (NAS)

€ 5.00

3

0912504501
ref: 3

SCREW(4X45)

€ 3.00

4

0947112083
ref: 4
09471-12128

BULB(12V21/5W)

€ 6.00

5

0932010501
ref: 5

CUSHION

€ 5.50

6

0918006310
ref: 6

SPACER(6.5X10X10)

€ 2.00

7

0916006088
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

8

0831610063
ref: 8
08316-1006B

NUT

€ 2.50

9

3592729F10
ref: 9

BRACKET,LICENSE PLATE

€ 6.50

10

0916006088
ref: 10

WASHER(6.5X20X1.6)

€ 2.00

11

0214206123
ref: 11
02142-0612A

SCREW 6X12

€ 2.00

12

0831610063
ref: 12
08316-1006B

NUT

€ 2.50

13

0932106026
ref: 13

CUSHION

€ 3.50

14

3597007F00
ref: 14
35970-07F01

REFLECTOR ASSEMBLY,REAR

€ 20.50

15

0831610053
ref: 15
08316-1005A

NUT

€ 2.50
