KNUCKLE COVER (MODEL Y/K1/K2 OPT)

DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

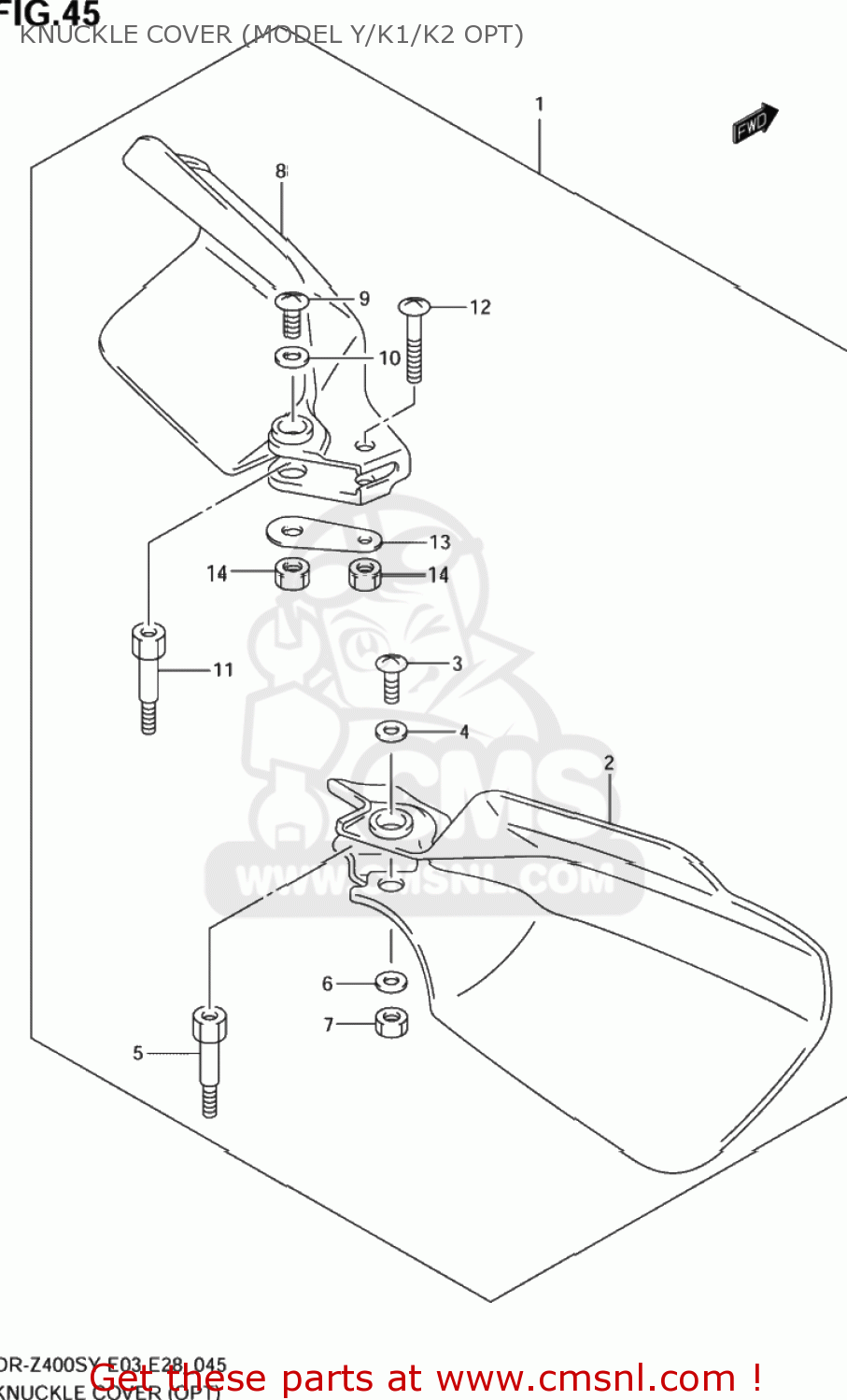

Knuckle cover (model y/k1/k2 opt) diagram DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

KNUCKLE COVER (MODEL Y/K1/K2 OPT) DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

KNUCKLE COVER (MODEL Y/K1/K2 OPT) DR-Z400S 2000 (Y) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

5730005820019
ref: 1
57300-05821-019

KNUCKLE COVER SET (CT5

€ 37.00

2

5734105D00019
ref: 2

COVER,KNUCKLE,RIGHT

€ 21.00

3

0214205107
ref: 3

SCREW

€ 2.50

4

5735514D00
ref: 4

PLATE,KNUCKLE COVER,R UPR

€ 5.00

5

5743105D00
ref: 5

BOLT,BRAKE LEVER PIVOT

€ 9.00

6

0916006130
ref: 6

WASHER(6.5X16X1.6)

€ 2.00

7

0831921068
ref: 7
08319-2106A

NUT 6MM

€ 2.00

8

5754105D01019
ref: 8

COVER,KNUCKLE,L

€ 29.50

9

0214205107
ref: 9

SCREW

€ 2.50

10

0916005043
ref: 10

WASHER(5.5X16X1.2)

€ 2.50

11

5743113E00
ref: 11

BOLT,LEVER PIVOT

€ 12.00

12

0912506091
ref: 12

SCREW(6X35)

€ 2.50

13

5754205D00
ref: 13

PLATE,KNUCKLE COVER,L LWR

€ 3.50

14

0831921068
ref: 14
08319-2106A

NUT 6MM

€ 2.00
