CLUTCH

DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S

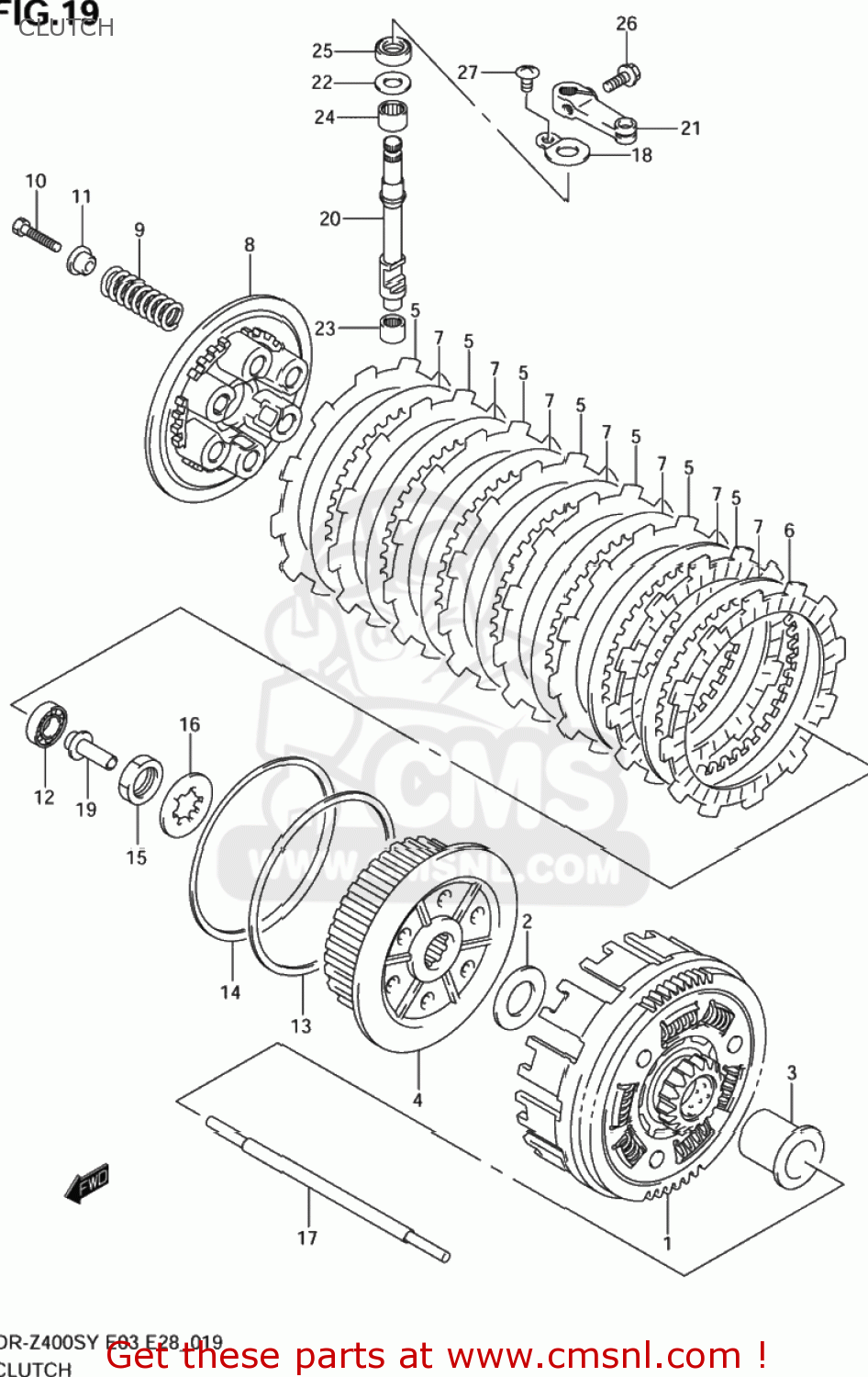

Clutch diagram DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S

CLUTCH DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
CLUTCH DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
CLUTCH DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
2120029F10
ref: 1
GEAR ASSY,PRI DRIVEN
€ 289.00
2
0821122425
ref: 2
WASHER
0821122425
€ 3.50
3
2125129F00
ref: 3
SPACER,PRIMARY DRIVEN GEAR
2125129F00
€ 34.50
4
2141029F00
ref: 4
HUB,CLUTCH SLEEVE
2141029F00
€ 95.50
5
2144129F00
ref: 5
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144129F00
€ 14.50
6
2144229F00
ref: 6
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144229F00
€ 13.50
7
2145144D00
ref: 7
PLATE,CLUTCH DRIVEN (NAS)
2145144D00
€ 7.00
8
2146229F00
ref: 8
DISC,CLUTCH PRESSURE
2146229F00
€ 41.00
9
2141329F00
ref: 9
SPRING,CLUTCH
2141329F00
€ 6.00
10
0713006303
ref: 10
07130-0630B
BOLT
0713006303
€ 3.00
11
2141429F00
ref: 11
WASHER
2141429F00
€ 4.50
12
0926212001
ref: 12
BEARING(12X28X8)
0926212001
€ 15.00
13
0916000003
ref: 13
WASHER(112X122X1)
0916000003
€ 8.50
14
0916400008
ref: 14
WASHER
0916400008
€ 15.00
15
0914020001
ref: 15
NUT
0914020001
€ 3.50
16
0916722021
ref: 16
WASHER,LOCK
0916722021
€ 2.00
17
2311029F00
ref: 17
ROD,CLUTCH PUSH
2311029F00
€ 15.00
18
2311705200
ref: 18
RETAINER,CL RLSE OIL SEAL
2311705200
€ 3.50
19
2312129F00
ref: 19
PIECE,CL PUSH
2312129F00
€ 17.00
20
2312229F00
ref: 20
CAMSHAFT,CLUTCH RELEASE
2312229F00
€ 37.00
21-1
2327120901
ref: 21-1
23271-20902
ARM,CLUTCH RELEASE
2327120901
€ 20.50
21-2
2327120902
ref: 21-2
ARM,CLUTCH RELEASE
2327120902
€ 20.50
22
0918110195
ref: 22
SHIM(10X20X1)
0918110195
€ 2.00
23
0926310014
ref: 23
BEARING(10X14X10)
0926310014
€ 12.00
24
0926312024
ref: 24
BEARING(12X16X10)
0926312024
€ 11.00
25
0928210012
ref: 25
SEAL,OIL(10X20X6)
0928210012
€ 7.50
26
0154706163
ref: 26
01547-0616B
BOLT
0154706163
€ 2.50
27
0214206103
ref: 27
02142-0610A
SCREW 6X10
0214206103
€ 2.00
