Buy Suzuki unknown Parts Online


SPEEDOMETER

DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S

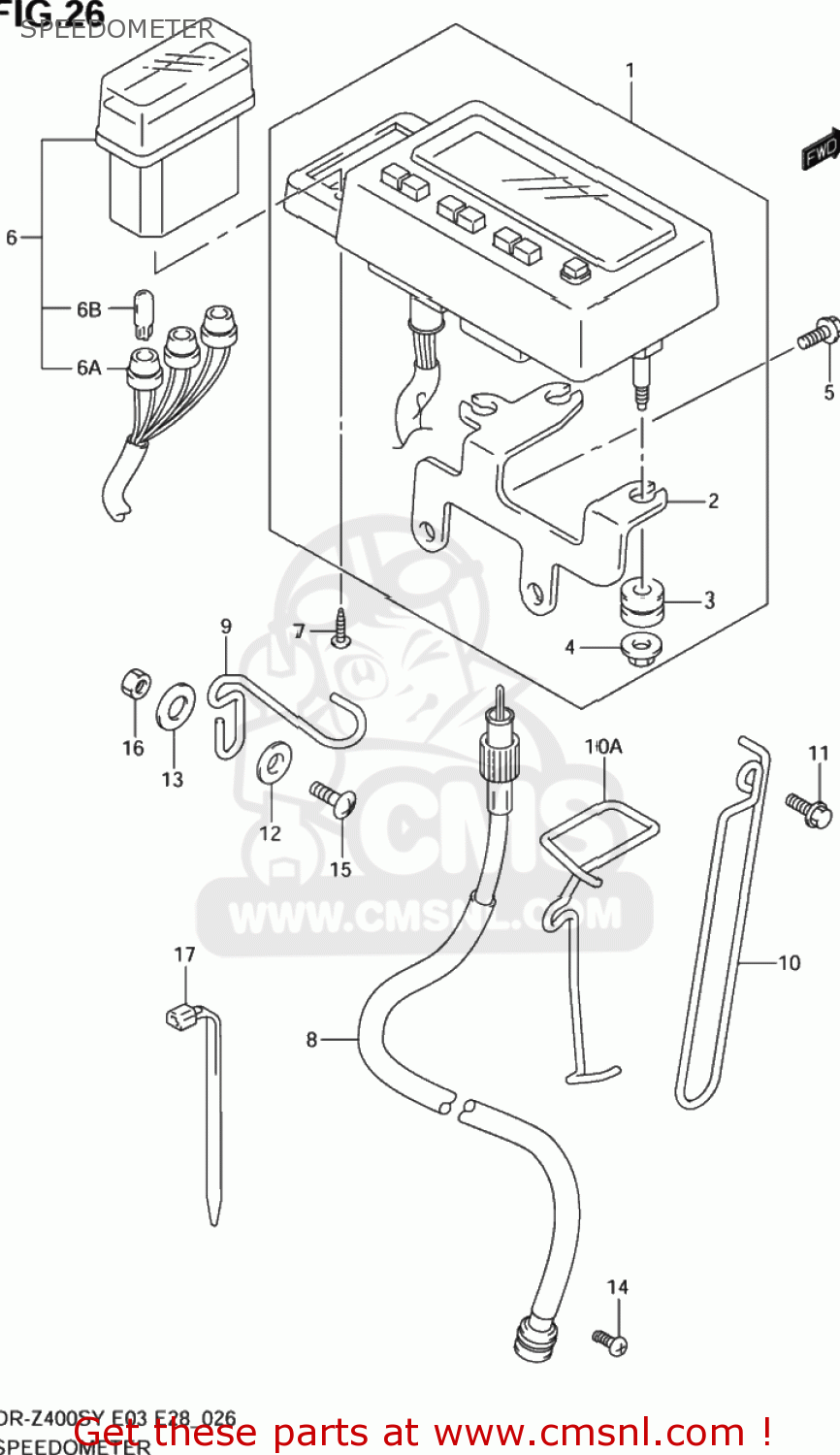

Speedometer diagram DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S

SPEEDOMETER DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
SPEEDOMETER DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
SPEEDOMETER DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1-1
3410029F20
ref: 1-1
34100-29F21
SPEEDOMETER ASSEMBLY
€ 1,461.00
1-2
3410029F21
ref: 1-2
SPEEDOMETER ASSY
€ 1,461.00
1-3
3410029F00
ref: 1-3
SPEEDOMETER AS
€ 1,117.50
1-4
3410029F01
ref: 1-4
SPEEDOMETER ASSY
3410029F01
€ 1,117.50
2
3495029F00
ref: 2
BRACKET
3495029F00
€ 30.00
3
3499643410
ref: 3
CUSHION,METER
3499643410
€ 3.00
4
0831610053
ref: 4
08316-1005A
NUT
0831610053
€ 2.50
5
0155006163
ref: 5
01550-0616A
BOLT
0155006163
€ 2.50
6
3638029F00
ref: 6
BOX ASSY,PILOT LAMP
3638029F00
€ 128.50
6A
3639408D00
ref: 6A
SOCKET
€ 23.00
6B
0947112118
ref: 6B
BULB(13.5V,2W,A7427)
0947112118
€ 2.00
7
0351104203
ref: 7
03511-0420B
SCREW
0351104203
€ 2.00
8
3491032E00
ref: 8
CABLE ASSY,SPEEDOMETER
3491032E00
€ 29.00
9
3493803D22
ref: 9
GUIDE,SPEEDOMETER CABLE
3493803D22
€ 7.50
10
3493814D30
ref: 10
GUIDE,METER CABLE NO.2
3493814D30
€ 8.00
10A
3493829F10
ref: 10A
GUIDE,SPEEDOMETER CABLE NO.3
3493829F10
€ 9.50
11
0911606167
ref: 11
BOLT(6X20)
0911606167
€ 2.00
12
0916006109
ref: 12
WASHER(6.5X18X1.6)
0916006109
€ 2.00
13
0916906054
ref: 13
09169-06053
WASHER
0916906054
€ 2.00
14
0211205163
ref: 14
02112-0516A
SCREW
0211205163
€ 2.00
15
0214206163
ref: 15
02142-0616A
SCREW
0214206163
€ 2.50
16
0831000063
ref: 16
08310-0006A
NUT 6MM
0831000063
€ 2.00
17
0940718402
ref: 17
CLAMP(L:165)
0940718402
€ 2.50
