GEAR SHIFTING

DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S

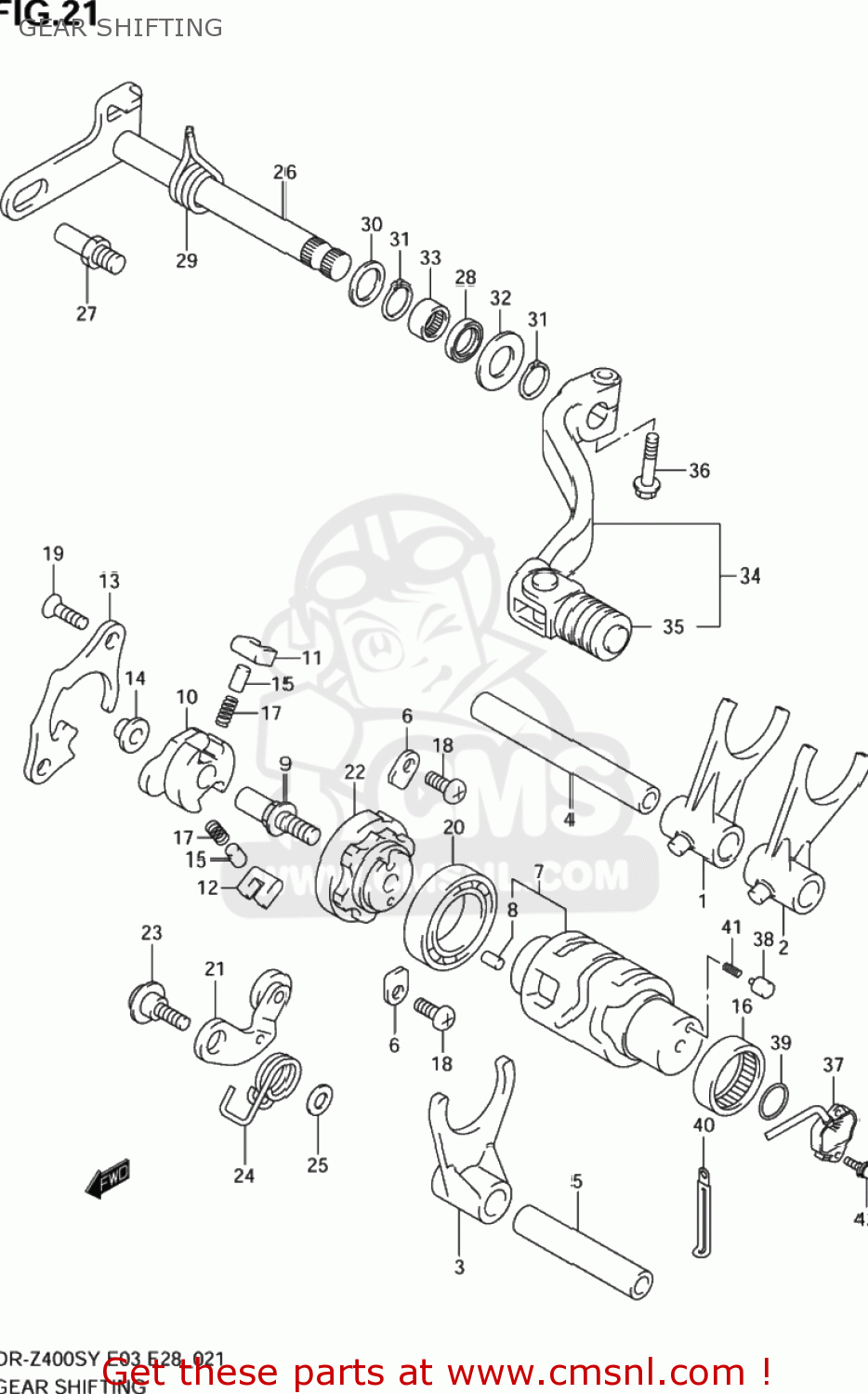

Gear shifting diagram DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S

GEAR SHIFTING DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
GEAR SHIFTING DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
GEAR SHIFTING DR-Z400S 2002 (K2) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
2521128C01
ref: 1
FORK,GEAR SHIFT NO.1
2521128C01
€ 45.00
2-1
2522137E10
ref: 2-1
FORK,GEAR SHIFT NO.2
2522137E10
€ 63.00
2-2
2522128C02
ref: 2-2
FORK,GEAR SHIFT NO.2
2522128C02
€ 45.00
3
2523128C02
ref: 3
FORK,GEAR SHIFT NO.3
2523128C02
€ 48.00
4
2541127C01
ref: 4
25411-37F20
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542127C01
ref: 5
SHAFT,GEAR SHIFT FORK(L:60)
2542127C01
€ 9.50
6
2474121A00
ref: 6
RETAINER
2474121A00
€ 2.00
7
2531029F10
ref: 7
CAM,GEAR SHIFT
2531029F10
€ 104.00
8
0422104089
ref: 8
PIN
0422104089
€ 1.50
9
2531327C02
ref: 9
PIN,SHIFT CAM DRIVEN GEAR
2531327C02
€ 6.00
10
2532236E00
ref: 10
SHIFTER,GEAR SHIFT CAM
€ 28.00
11
2532334201
ref: 11
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
12
2532434201
ref: 12
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
13
2533137E10
ref: 13
LIFTER,GEAR SHIFT PAWL
2533137E10
€ 12.00
14
0918007014
ref: 14
SPACER(7X10X5)
0918007014
€ 4.00
15
0926105003
ref: 15
PIN(5X8)
0926105003
€ 1.50
16
0926325018
ref: 16
BEARING(25X32X12)
0926325018
€ 17.50
17
0944004003
ref: 17
SPRING
0944004003
€ 1.50
18
0912506110
ref: 18
BOLT(6X12)
0912506110
€ 2.50
19
0912606011
ref: 19
SCREW(6X12)
0912606011
€ 2.00
20
0811369050
ref: 20
BEARING
0811369050
€ 36.00
21
2535029F00
ref: 21
STOPPER,GEAR SHIFT CAM
2535029F00
€ 11.50
22-1
2538136E10
ref: 22-1
25381-36E11
PLATE,SHIFT CAM STOPPER
2538136E10
€ 26.50
22-2
2538136E11
ref: 22-2
PLATE,GEAR SHIFT STOPPER
€ 26.50
23
2535729F00
ref: 23
BOLT,CAM STOPPER ARM
2535729F00
€ 4.00
24
2535529F00
ref: 24
SPRING,SHIFT CAM STOPPER
2535529F00
€ 3.00
25
0821106121
ref: 25
WASHER
0821106121
€ 2.00
26
2551029F00
ref: 26
SHAFT,GEAR SHIFT
2551029F00
€ 56.50
27
2567138B00
ref: 27
STOPPER,SHIFT ARM
2567138B00
€ 3.00
28
0928314006
ref: 28
SEAL,OIL(14X22X6)
0928314006
€ 6.50
29
0944420004
ref: 29
SPRING
0944420004
€ 7.00
30
0918114139
ref: 30
SHIM(14X20X1)
0918114139
€ 2.50
31
0833131146
ref: 31
08331-3114A
CIRCLIP
0833131146
€ 2.00
32
0916014046
ref: 32
09160-14046-XC0
WASHER
0916014046
€ 4.00
33
0926314027
ref: 33
BEARING(14X20X12)
0926314027
€ 11.00
34-1
2560005D01
ref: 34-1
25600-05D03
LEVER ASSEMBLY,GEAR SHIFTING
€ 46.00
34-2
2560005D02
ref: 34-2
25600-05D03
LEVER,GEAR SHF
2560005D02
€ 46.00
35
2565203D00
ref: 35
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.50
36
0154706253
ref: 36
01547-0625B
SCREW
0154706253
€ 2.50
37
3773020F10
ref: 37
BASE ASSY,GEAR SHIFT TERMINAL
3773020F10
€ 89.50
38
0920905011
ref: 38
PIN(5X15.5)
0920905011
€ 2.00
39
0928026005
ref: 39
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
40
0940406429
ref: 40
CLAMP(L:45)
€ 2.50
41
0944004010
ref: 41
SPRING
0944004010
€ 1.50
42
0211205163
ref: 42
02112-0516A
SCREW
0211205163
€ 2.00
