FRONT MASTER CYLINDER

DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S

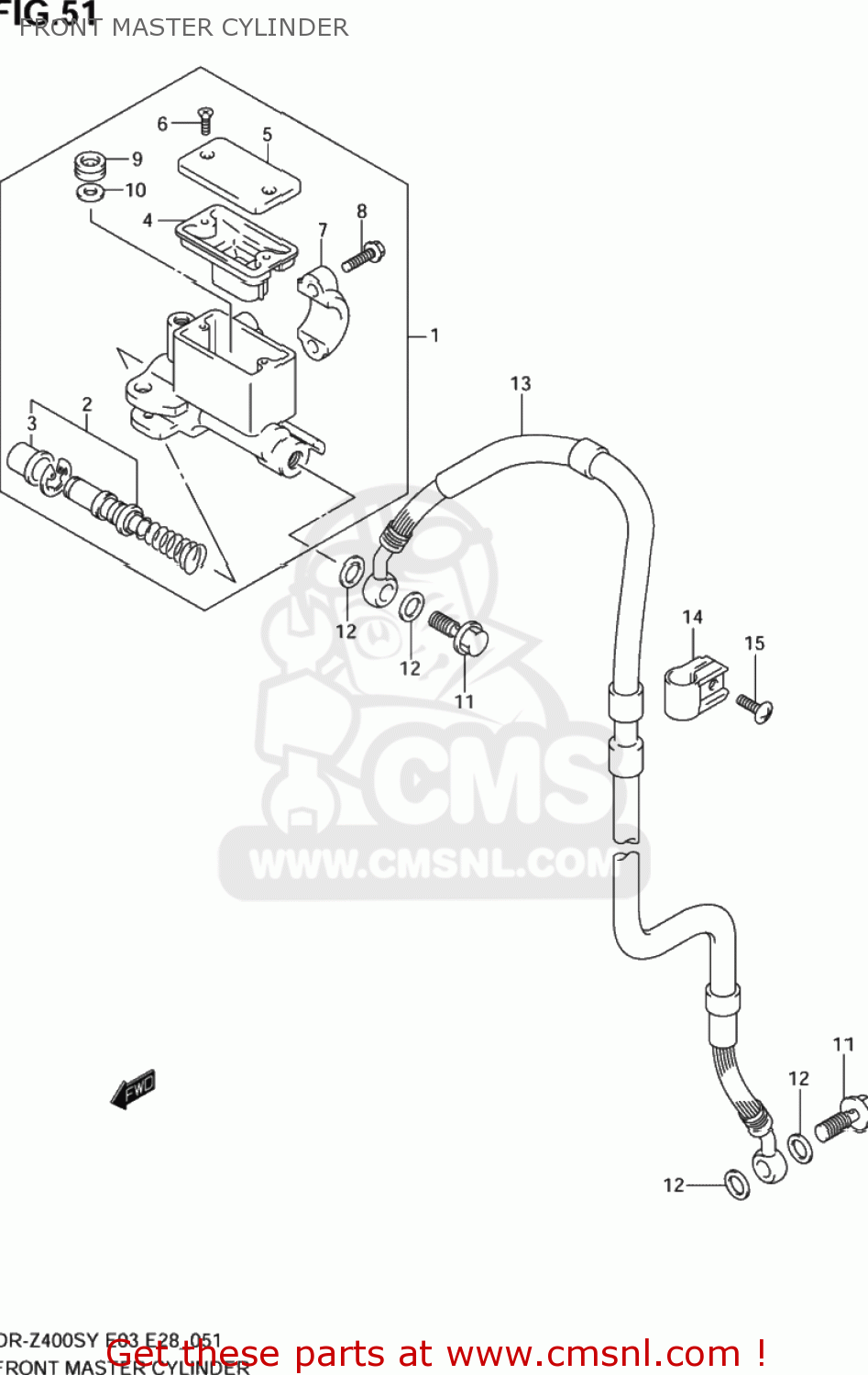

Front master cylinder diagram DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S

FRONT MASTER CYLINDER DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S

FRONT MASTER CYLINDER DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

5960044E30
ref: 1

CYLINDER ASSY,FR MASTER

€ 206.00

1

5960044E30
ref: 1

CYLINDER ASSY,FR MASTER

€ 206.00

2

6960038810
ref: 2

PISTON/CUP SET

€ 42.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966744B00
ref: 4

DIAPHRAGM

€ 8.00

5

5966903D00
ref: 5

CAP

€ 14.00

6

0212204127
ref: 6

SCREW

€ 2.00

7

5967103D00
ref: 7

HOLDER

€ 13.00

8

5967527C00
ref: 8

BOLT

€ 2.50

9

5974836E00
ref: 9

SEPARATOR

€ 5.00

10

6974436E00
ref: 10

RING

€ 2.00

11

0936010042
ref: 11
09360-10062

BOLT UNION

€ 5.00

12

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

13

5948029F10
ref: 13
59480-29F11

HOSE COMP,FRONT BRAKE

€ 128.50

14

5862107A10
ref: 14
58621-07A20

CLAMP,BRAKE HOSE

€ 3.50

15

0214206253
ref: 15
02142-0625A

SCREW

€ 1.50
