KNUCKLE COVER (MODEL K3/K4 OPT)

DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S

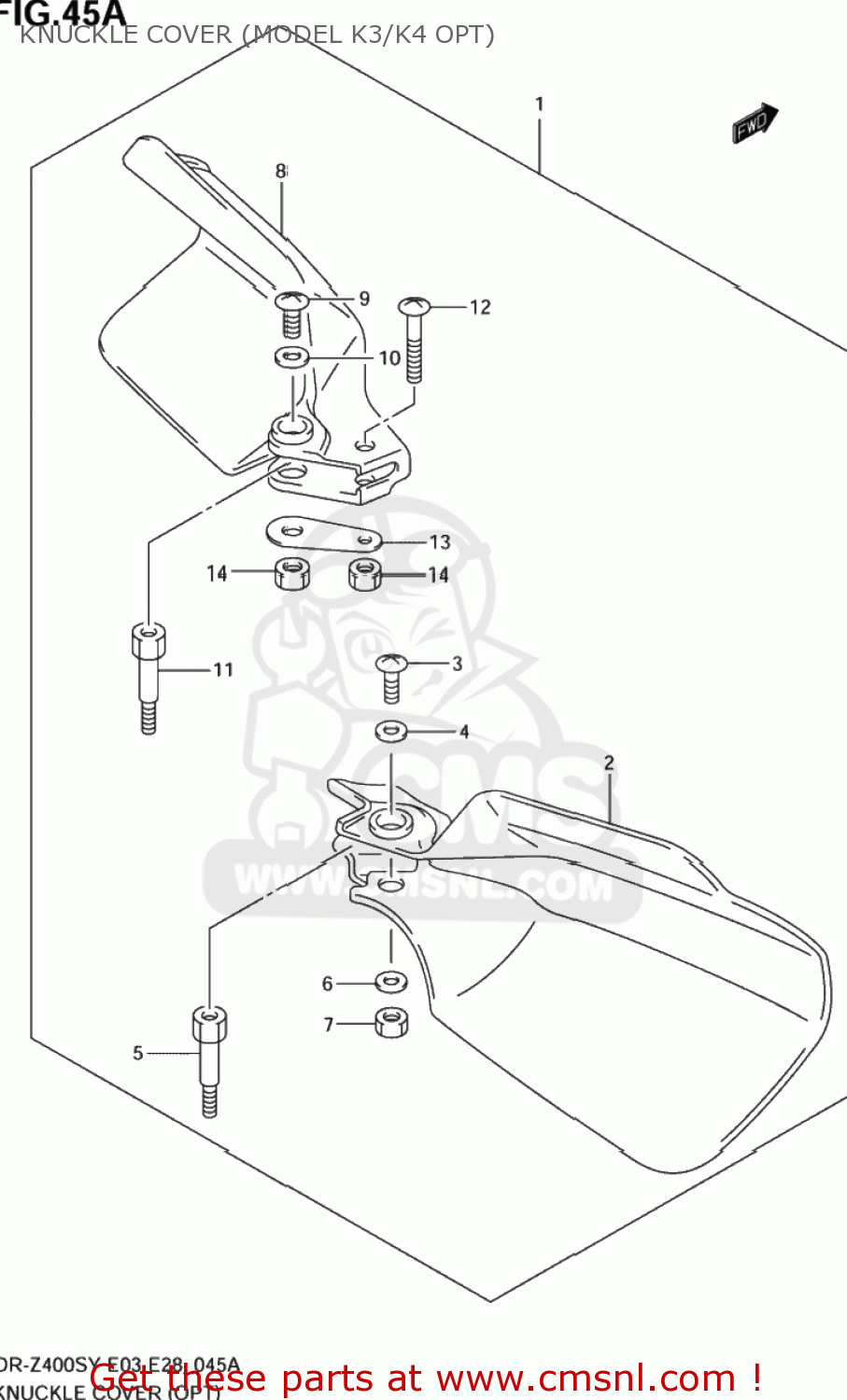

Knuckle cover (model k3/k4 opt) diagram DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

5730005820YU1
ref: 1-1
57300-05821-YU1

COVER SET,KNUC

€ 29.00

1-2

5730005820YJ4
ref: 1-2
57300-05822-YJ4

COVER SET,KNUC

€ 51.50

2-1

5734105D00YU1
ref: 2-1

COVER, KNUCKLE RH (YELLOW)

€ 25.50

2-2

5734105D00YJ4
ref: 2-2

COVER,KNUCKLE,R

€ 25.50

0214205107
ref: 3

SCREW

€ 2.50

5735514D00
ref: 4

PLATE,KNUCKLE COVER,R UPR

€ 5.00

5743105D00
ref: 5

BOLT,BRAKE LEVER PIVOT

€ 9.00

0916006130
ref: 6

WASHER(6.5X16X1.6)

€ 2.00

0831921068
ref: 7
08319-2106A

NUT 6MM

€ 2.00

8-1

5754105D01YU1
ref: 8-1

COVER,KNUCKLE,L(YELLOW)

€ 23.00

8-2

5754105D01YJ4
ref: 8-2

COVER,KNUCKLE,L

€ 23.50

0214205107
ref: 9

SCREW

€ 2.50

0916005043
ref: 10

WASHER(5.5X16X1.2)

€ 2.50

5743113E00
ref: 11

BOLT,LEVER PIVOT

€ 12.00

0912506091
ref: 12

SCREW(6X35)

€ 2.50

5754205D00
ref: 13

PLATE,KNUCKLE COVER,L LWR

€ 3.50

0831921068
ref: 14
08319-2106A

NUT 6MM

€ 2.00

KNUCKLE COVER (MODEL K3/K4 OPT)
