Buy Suzuki unknown Parts Online


KNUCKLE COVER (MODEL Y/K1/K2 OPT)

DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S

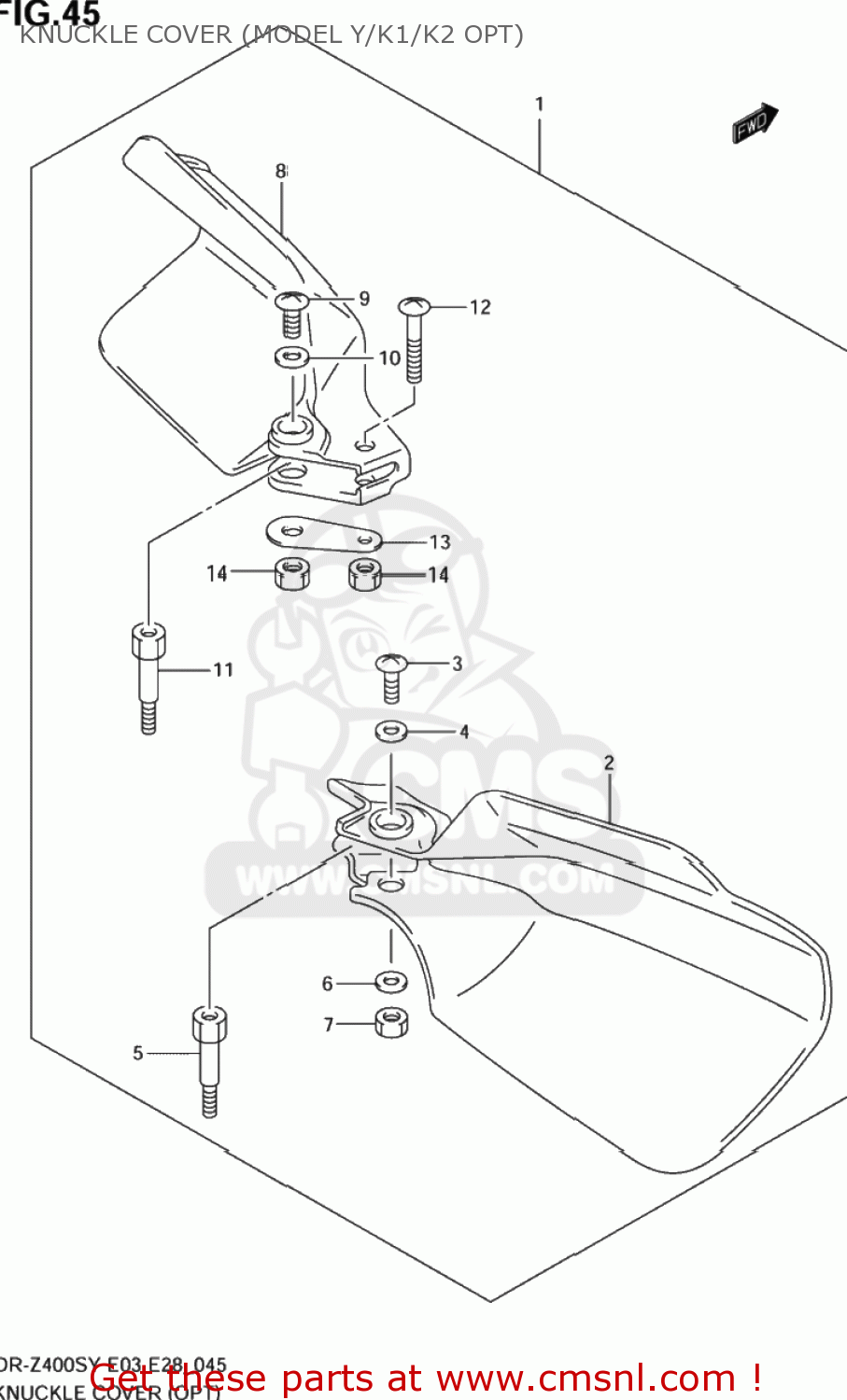

Knuckle cover (model y/k1/k2 opt) diagram DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S

KNUCKLE COVER (MODEL Y/K1/K2 OPT) DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S
KNUCKLE COVER (MODEL Y/K1/K2 OPT) DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S
KNUCKLE COVER (MODEL Y/K1/K2 OPT) DR-Z400S 2003 (K3) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
5730005820019
ref: 1
57300-05821-019
KNUCKLE COVER SET (CT5
€ 37.00
2
5734105D00019
ref: 2
COVER,KNUCKLE,RIGHT
5734105D00019
€ 21.00
3
0214205107
ref: 3
SCREW
0214205107
€ 2.50
4
5735514D00
ref: 4
PLATE,KNUCKLE COVER,R UPR
5735514D00
€ 5.00
5
5743105D00
ref: 5
BOLT,BRAKE LEVER PIVOT
5743105D00
€ 9.00
6
0916006130
ref: 6
WASHER(6.5X16X1.6)
0916006130
€ 2.00
7
0831921068
ref: 7
08319-2106A
NUT 6MM
0831921068
€ 2.00
8
5754105D01019
ref: 8
COVER,KNUCKLE,L
5754105D01019
€ 29.50
9
0214205107
ref: 9
SCREW
0214205107
€ 2.50
10
0916005043
ref: 10
WASHER(5.5X16X1.2)
0916005043
€ 2.50
11
5743113E00
ref: 11
BOLT,LEVER PIVOT
5743113E00
€ 12.00
12
0912506091
ref: 12
SCREW(6X35)
0912506091
€ 2.50
13
5754205D00
ref: 13
PLATE,KNUCKLE COVER,L LWR
5754205D00
€ 3.50
14
0831921068
ref: 14
08319-2106A
NUT 6MM
0831921068
€ 2.00
