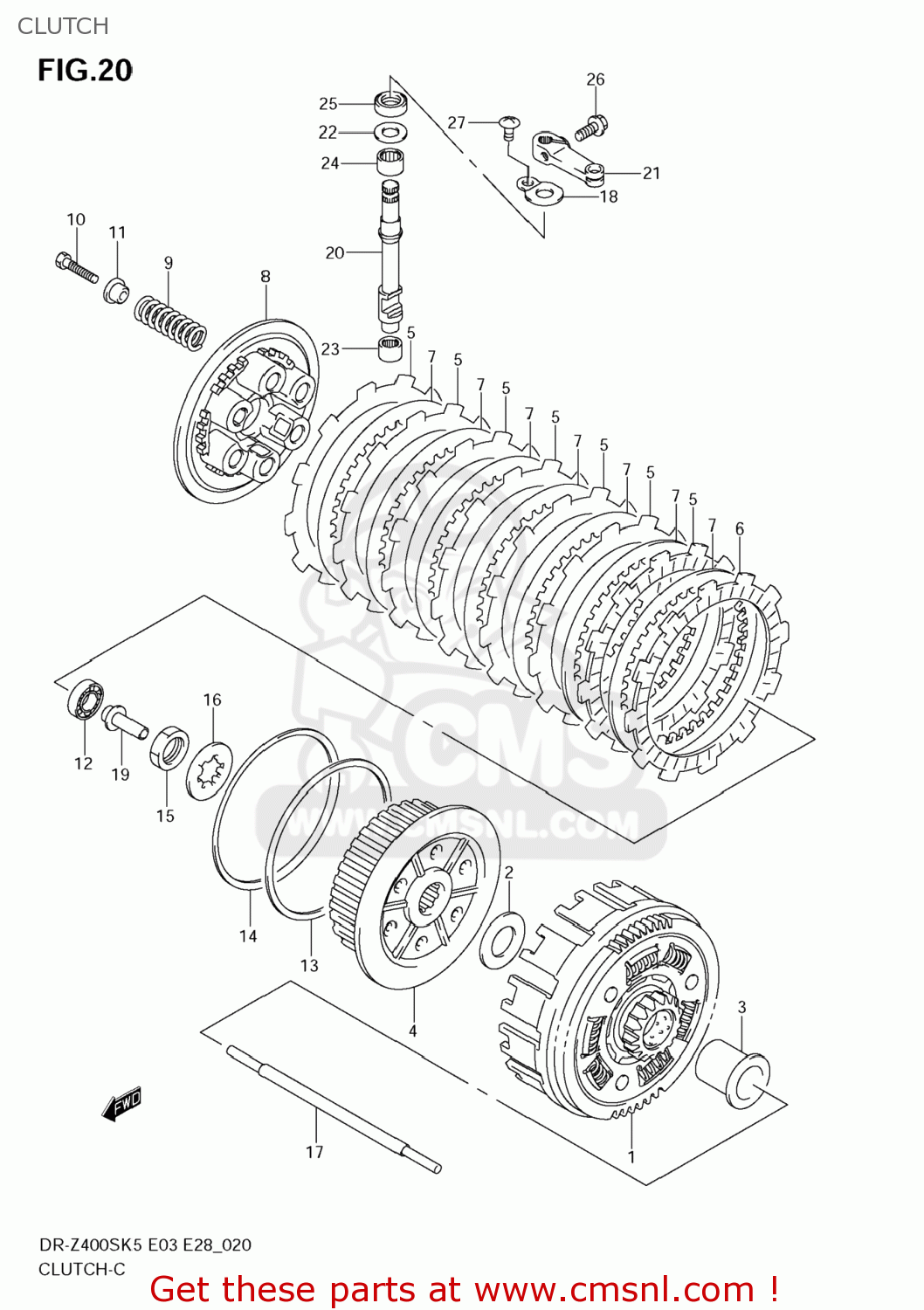

CLUTCH

ref

part #

description

quantity

1

2120029F10
ref: 1

GEAR ASSY,PRI DRIVEN

€ 289.00

2

0821122425
ref: 2

WASHER

€ 3.50

3

2125129F00
ref: 3

SPACER,PRIMARY DRIVEN GEAR

€ 34.50

4

2141029F00
ref: 4

HUB,CLUTCH SLEEVE

€ 95.50

5

2144129F00
ref: 5

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 14.50

6

2144229F00
ref: 6

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 13.50

7

2145144D00
ref: 7

PLATE,CLUTCH DRIVEN (NAS)

€ 7.00

8

2146229F00
ref: 8

DISC,CLUTCH PRESSURE

€ 41.00

9

2141329F00
ref: 9

SPRING,CLUTCH

€ 6.00

10

071300630A
ref: 10

BOLT

€ 3.00

11

2141429F00
ref: 11

WASHER

€ 4.50

12

0926212001
ref: 12

BEARING(12X28X8)

€ 15.00

13

0916000003
ref: 13

WASHER(112X122X1)

€ 8.50

14

0916400008
ref: 14

WASHER

€ 15.00

15

0914020001
ref: 15

NUT

€ 3.50

16

0916722021
ref: 16

WASHER,LOCK

€ 2.00

17

2311029F00
ref: 17

ROD,CLUTCH PUSH

€ 15.00

18

2311705200
ref: 18

RETAINER,CL RLSE OIL SEAL

€ 3.50

19

2312129F00
ref: 19

PIECE,CL PUSH

€ 17.00

20

2312229F00
ref: 20

CAMSHAFT,CLUTCH RELEASE

€ 37.00

21

2327120902
ref: 21

ARM,CLUTCH RELEASE

€ 20.50

22

0918110195
ref: 22

SHIM(10X20X1)

€ 2.00

23

0926310014
ref: 23

BEARING(10X14X10)

€ 12.00

24

0926312024
ref: 24

BEARING(12X16X10)

€ 11.00

25

0928210012
ref: 25

SEAL,OIL(10X20X6)

€ 7.50

26

015470616A
ref: 26

BOLT

€ 2.00

27

021420610A
ref: 27

SCREW

€ 2.00
