TURN SIGNAL LAMP (MODEL K5)

DR-Z400S 2008 (K8) USA (E03) DRZ400S DR Z400S

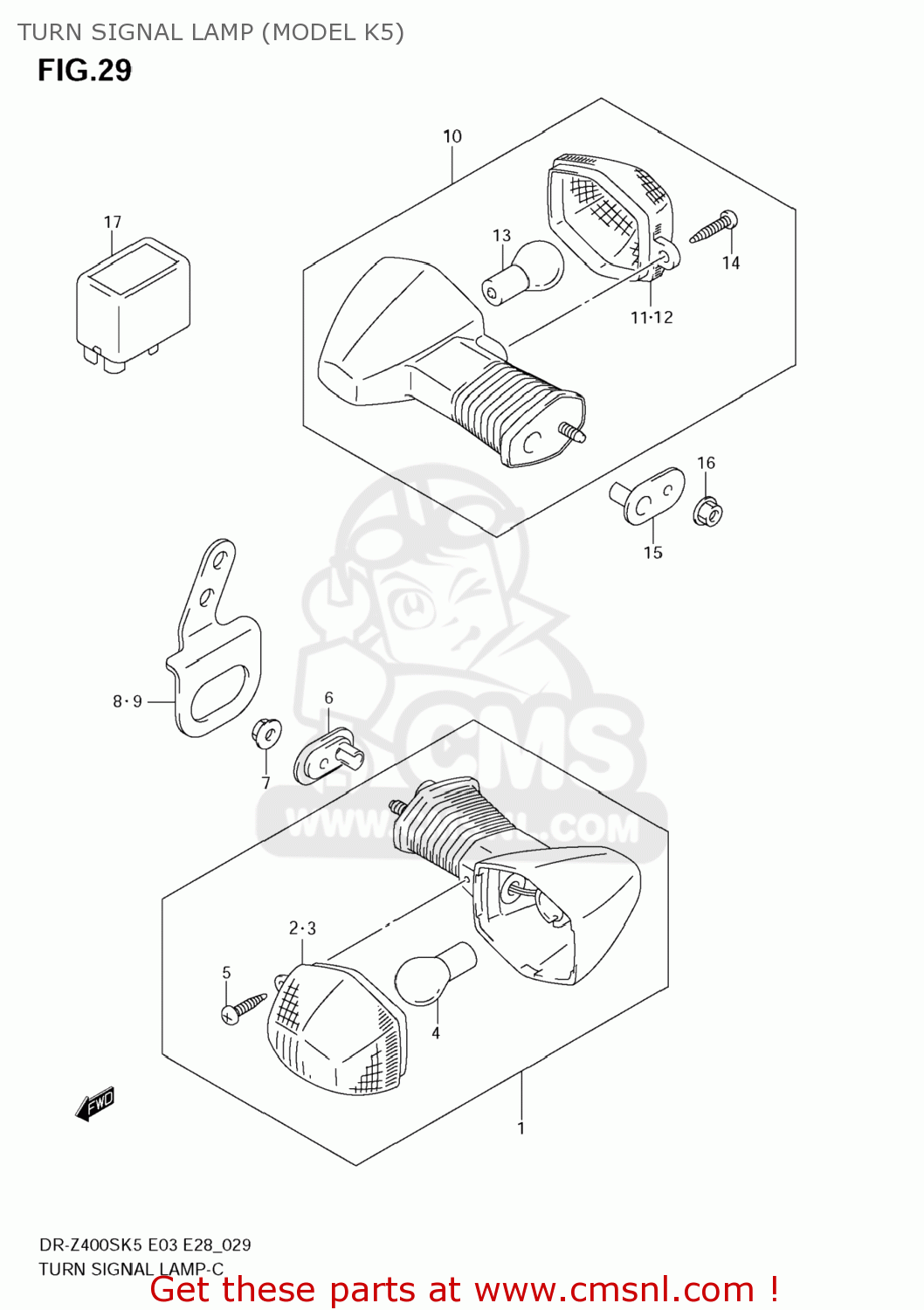

Turn signal lamp (model k5) diagram DR-Z400S 2008 (K8) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

3560129F30
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 69.50

1-2

3560229F30
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 71.00

3561231F30
ref: 2

LENS

€ 7.00

3563231F30
ref: 3

LENS

€ 7.00

0947112045
ref: 4

BULB(12V21W)

€ 5.00

032420416A
ref: 5

SCREW

€ 4.50

3562931F40
ref: 6

PLATE,TURNSIGNAL LAMP

€ 3.00

083161005B
ref: 7

NUT

€ 2.50

3567129F00
ref: 8

BRACKET,FR TURNSIGNAL,R

€ 4.50

3568129F00
ref: 9

BRACKET,FR TURNSIGNAL,L

€ 4.50

10-1

3560329F60
ref: 10-1

LAMP ASSY,RR TURNSIGNAL,R

€ 48.50

10-2

3560429F60
ref: 10-2

LAMP ASSY,RR TURNSIGNAL,L

€ 48.50

3563231F30
ref: 11

LENS

€ 7.00

3561231F30
ref: 12

LENS

€ 7.00

0947112045
ref: 13

BULB(12V21W)

€ 5.00

032420416A
ref: 14

SCREW

€ 4.50

3562931F40
ref: 15

PLATE,TURNSIGNAL LAMP

€ 3.00

083161005B
ref: 16

NUT

€ 2.50

3861003F00
ref: 17

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50

TURN SIGNAL LAMP (MODEL K5)
