RADIATOR

DR-Z400S 2008 (K8) USA (E03) DRZ400S DR Z400S

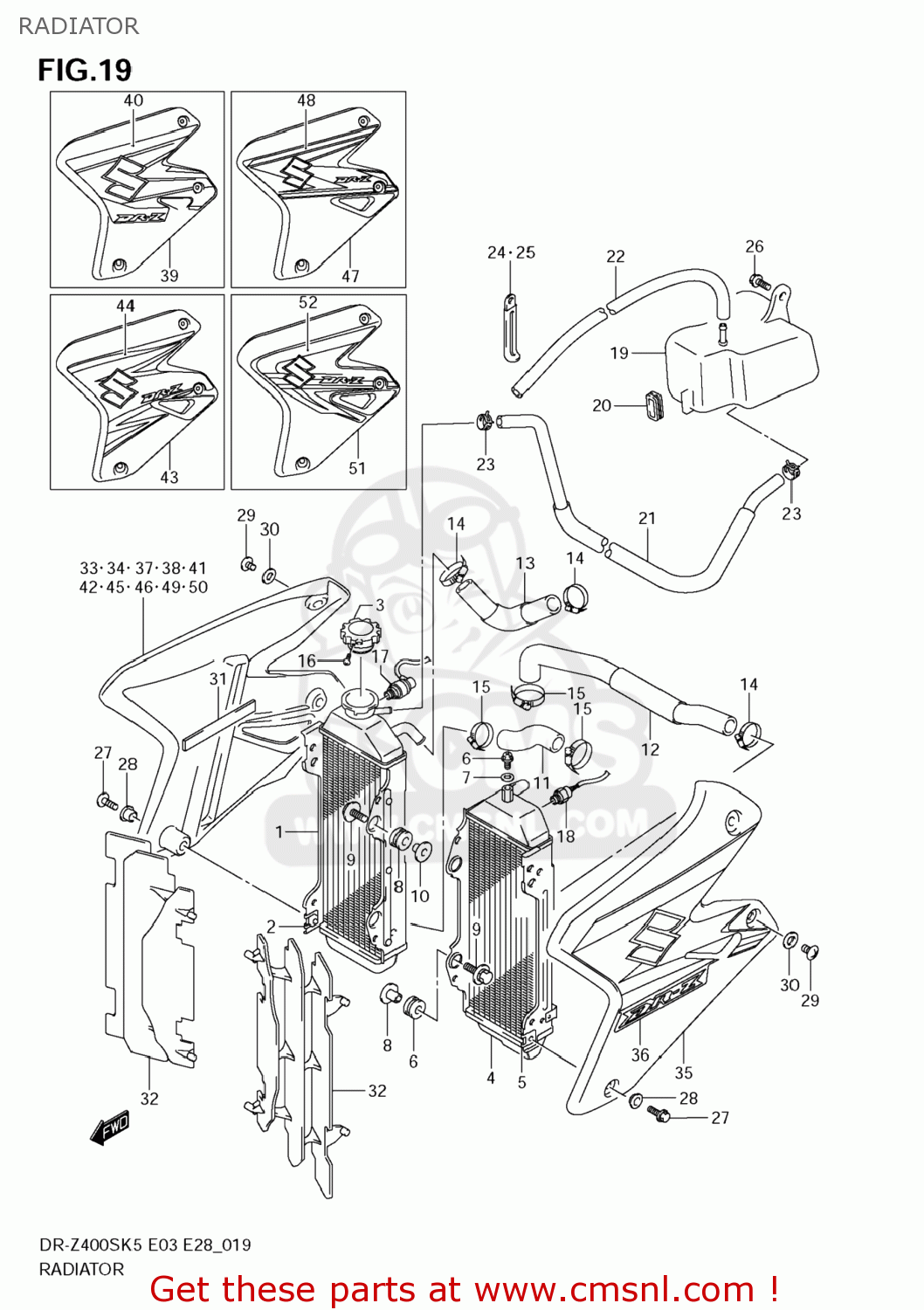

Radiator diagram DR-Z400S 2008 (K8) USA (E03) DRZ400S DR Z400S

RADIATOR DR-Z400S 2008 (K8) USA (E03) DRZ400S DR Z400S
RADIATOR DR-Z400S 2008 (K8) USA (E03) DRZ400S DR Z400S
RADIATOR DR-Z400S 2008 (K8) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1-1
1771029F11
ref: 1-1
17710-29F40
RADIATOR COMP,
€ 371.00
1-2
1771029F40
ref: 1-2
RADIATOR,WATER,R
€ 371.00
2
0914806015
ref: 2
NUT
0914806015
€ 3.50
3
1773019D11
ref: 3
CAP,RADIATOR(1.1)
1773019D11
€ 33.50
4-1
1772029F12
ref: 4-1
17720-29F40
RADIATOR COMP,
€ 383.50
4-2
1772029F40
ref: 4-2
RADIATOR,WATER,L
€ 383.50
5
0914806015
ref: 5
NUT
0914806015
€ 3.50
6
1756850F00
ref: 6
UNION BOLT,AIR VENT
1756850F00
€ 3.50
7
0916806026
ref: 7
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
8
1778719A00
ref: 8
CUSHION,RADIATOR LWR
1778719A00
€ 3.50
9
0911606147
ref: 9
BOLT(6X25)
0911606147
€ 4.00
10
0918006243
ref: 10
SPACER(6.5X10.5X14.1)
0918006243
€ 4.50
11
1785129F10
ref: 11
HOSE,RADIATOR INLET
1785129F10
€ 11.00
12
1785229F30
ref: 12
HOSE,RADIATOR OUTLET
1785229F30
€ 32.00
13
1785329F10
ref: 13
HOSE,RADIATOR JOINT
€ 17.00
14
0940228513
ref: 14
CLAMP
0940228513
€ 6.50
15
0940232512
ref: 15
CLAMP
0940232512
€ 9.00
16
1773303D10
ref: 16
SCREW,RADIATOR CAP
1773303D10
€ 2.00
17-1
3485003D00
ref: 17-1
SWITCH ASSY,WATER TEMP
3485003D00
€ 85.00
17-2
3485029F00
ref: 17-2
SWITCH ASSY,WATER TEMP
€ 65.50
18
1768024A30
ref: 18
SWITCH,FAN
1768024A30
€ 82.50
19
1791129F11
ref: 19
TANK,RESERVOIR
1791129F11
€ 39.50
20
1791329F00
ref: 20
CUSHION,RESERVOIR TANK
1791329F00
€ 3.00
21
1798129F01
ref: 21
HOSE,RESERVOIR TANK INLET
1798129F01
€ 13.50
22
093525090100B
ref: 22
HOSE(5X9X2000)
093525090100B
€ 19.50
23
0940108411
ref: 23
CLIP
0940108411
€ 3.00
24
0940408205
ref: 24
CLAMP(L:45 T:0.6)
0940408205
€ 3.00
25
0940406429
ref: 25
CLAMP(L:45)
€ 2.50
26
015500612B
ref: 26
BOLT
015500612B
€ 2.50
27-1
0214206163
ref: 27-1
02142-0616A
SCREW
0214206163
€ 2.50
27-2
0910306274
ref: 27-2
BOLT(6X16)
0910306274
€ 2.00
28-1
0916906060
ref: 28-1
WASHER
0916906060
€ 2.00
28-2
0916906053
ref: 28-2
WASHER
0916906053
€ 2.00
29-1
0214206083
ref: 29-1
02142-0608A
SCREW
0214206083
€ 1.50
29-2
0910306275
ref: 29-2
BOLT(6X8)
0910306275
€ 2.00
30-1
0916006124
ref: 30-1
09160-06126
WASHER
0916006124
€ 2.00
30-2
0916006125
ref: 30-2
WASHER(6.5X14X1.6)
0916006125
€ 2.00
31
4745138A01
ref: 31
CUSHION,TOOL HOLDER
4745138A01
€ 3.00
32
1783137E11
ref: 32
LOUVER,RADIATOR
1783137E11
€ 11.50
33-1
1776029F70YJ4
ref: 33-1
COVER,RADIATOR,R(BLUE)
€ 126.50
33-1
1776029F70YJ4
ref: 33-1
COVER,RADIATOR,R(BLUE)
€ 126.50
33-2
1776029F70YU1
ref: 33-2
COVER,RADIATOR,R(YELLOW)
1776029F70YU1
€ 141.50
33-2
1776029F70YU1
ref: 33-2
COVER,RADIATOR,R(YELLOW)
1776029F70YU1
€ 141.50
34-1
6866529F70YHU
ref: 34-1
TAPE,RADIATOR COVER,R
€ 92.50
34-1
6866529F70YHU
ref: 34-1
TAPE,RADIATOR COVER,R
€ 92.50
34-2
6866529F70YHB
ref: 34-2
TAPE,RADIATOR COVER,R
€ 104.00
34-2
6866529F70YHB
ref: 34-2
TAPE,RADIATOR COVER,R
€ 104.00
35-1
1777029F70YJ4
ref: 35-1
COVER,RADIATOR,L(BLUE)
€ 114.50
35-1
1777029F70YJ4
ref: 35-1
COVER,RADIATOR,L(BLUE)
€ 114.50
35-2
1777029F70YU1
ref: 35-2
COVER,RADIATOR,L(YELLOW)
€ 119.50
35-2
1777029F70YU1
ref: 35-2
COVER,RADIATOR,L(YELLOW)
€ 119.50
36-1
6867529F70YHU
ref: 36-1
TAPE,RADIATOR COVER,L
€ 91.50
36-1
6867529F70YHU
ref: 36-1
TAPE,RADIATOR COVER,L
€ 91.50
36-2
6867529F70YHB
ref: 36-2
TAPE,RADIATOR COVER,L
6867529F70YHB
€ 141.00
36-2
6867529F70YHB
ref: 36-2
TAPE,RADIATOR COVER,L
6867529F70YHB
€ 141.00
37-1
1776029F90YJ4
ref: 37-1
COVER,RADIATOR,R(BLUE)
€ 128.50
37-1
1776029F90YJ4
ref: 37-1
COVER,RADIATOR,R(BLUE)
€ 128.50
37-2
1776029F90YU1
ref: 37-2
COVER,RADIATOR,R(YELLOW)
1776029F90YU1
€ 125.00
37-2
1776029F90YU1
ref: 37-2
COVER,RADIATOR,R(YELLOW)
1776029F90YU1
€ 125.00
38-1
6866529F90CLV
ref: 38-1
TAPE,RADIATOR COVER,R
€ 100.00
38-1
6866529F90CLV
ref: 38-1
TAPE,RADIATOR COVER,R
€ 100.00
38-2
6866529F90CET
ref: 38-2
TAPE,RADIATOR COVER,R
6866529F90CET
€ 106.50
38-2
6866529F90CET
ref: 38-2
TAPE,RADIATOR COVER,R
6866529F90CET
€ 106.50
39-1
1777029F90YJ4
ref: 39-1
COVER,RADIATOR,L(BLUE)
1777029F90YJ4
€ 120.00
39-1
1777029F90YJ4
ref: 39-1
COVER,RADIATOR,L(BLUE)
1777029F90YJ4
€ 120.00
39-2
1777029F90YU1
ref: 39-2
COVER,RADIATOR,L(YELLOW)
1777029F90YU1
€ 125.50
39-2
1777029F90YU1
ref: 39-2
COVER,RADIATOR,L(YELLOW)
1777029F90YU1
€ 125.50
40-1
6867529F90CLV
ref: 40-1
TAPE,RADIATOR COVER,L
€ 97.50
40-1
6867529F90CLV
ref: 40-1
TAPE,RADIATOR COVER,L
€ 97.50
40-2
6867529F90CET
ref: 40-2
TAPE,RADIATOR COVER,L
6867529F90CET
€ 180.00
40-2
6867529F90CET
ref: 40-2
TAPE,RADIATOR COVER,L
6867529F90CET
€ 180.00
41-1
1776029FA0YLW
ref: 41-1
COVER,RADIATOR,R(BLUE)
€ 0.00
41-1
1776029FA0YLW
ref: 41-1
COVER,RADIATOR,R(BLUE)
€ 0.00
41-2
1776029FA0YU1
ref: 41-2
COVER,RADIATOR,R(YELLOW)
€ 127.00
41-2
1776029FA0YU1
ref: 41-2
COVER,RADIATOR,R(YELLOW)
€ 127.00
42-1
6866529FA0DUR
ref: 42-1
TAPE,RADIATOR COVER,R
€ 0.00
42-1
6866529FA0DUR
ref: 42-1
TAPE,RADIATOR COVER,R
€ 0.00
42-2
6866529FA0DRA
ref: 42-2
TAPE,RADIATOR COVER,R
€ 77.50
42-2
6866529FA0DRA
ref: 42-2
TAPE,RADIATOR COVER,R
€ 77.50
43-1
1777029FA0YLW
ref: 43-1
COVER,RADIATOR,L(BLUE)
1777029FA0YLW
€ 112.50
43-1
1777029FA0YLW
ref: 43-1
COVER,RADIATOR,L(BLUE)
1777029FA0YLW
€ 112.50
43-2
1777029FA0YU1
ref: 43-2
COVER,RADIATOR,L(YELLOW)
€ 127.00
43-2
1777029FA0YU1
ref: 43-2
COVER,RADIATOR,L(YELLOW)
€ 127.00
44-1
6867529FA0DUR
ref: 44-1
TAPE,RADIATOR COVER,L
€ 0.00
44-1
6867529FA0DUR
ref: 44-1
TAPE,RADIATOR COVER,L
€ 0.00
44-2
6867529FA0DRA
ref: 44-2
TAPE,RADIATOR COVER,L
€ 77.50
44-2
6867529FA0DRA
ref: 44-2
TAPE,RADIATOR COVER,L
€ 77.50
45-1
1776029FC0019
ref: 45-1
COVER,RADIATOR,R(BLACK)
€ 119.50
45-1
1776029FC0019
ref: 45-1
COVER,RADIATOR,R(BLACK)
€ 119.50
45-2
1776029FC0YLW
ref: 45-2
COVER,RADIATOR,R(BLUE)
€ 119.50
45-2
1776029FC0YLW
ref: 45-2
COVER,RADIATOR,R(BLUE)
€ 119.50
46-1
6866529FD0EVF
ref: 46-1
TAPE,RADIATOR COVER,R
€ 50.00
46-1
6866529FD0EVF
ref: 46-1
TAPE,RADIATOR COVER,R
€ 50.00
46-2
6866529FD0EVK
ref: 46-2
TAPE,RADIATOR COVER,R
€ 50.00
46-2
6866529FD0EVK
ref: 46-2
TAPE,RADIATOR COVER,R
€ 50.00
47-1
1777029FC0019
ref: 47-1
COVER,RADIATOR,L(BLACK)
€ 119.50
47-1
1777029FC0019
ref: 47-1
COVER,RADIATOR,L(BLACK)
€ 119.50
47-2
1777029FC0YLW
ref: 47-2
COVER,RADIATOR,L(BLUE)
€ 119.50
47-2
1777029FC0YLW
ref: 47-2
COVER,RADIATOR,L(BLUE)
€ 119.50
48-1
6867529FD0EVF
ref: 48-1
TAPE,RADIATOR COVER,L
€ 50.00
48-1
6867529FD0EVF
ref: 48-1
TAPE,RADIATOR COVER,L
€ 50.00
48-2
6867529FD0EVK
ref: 48-2
TAPE,RADIATOR COVER,L
€ 50.00
48-2
6867529FD0EVK
ref: 48-2
TAPE,RADIATOR COVER,L
€ 50.00
49-1
1776029FG0019
ref: 49-1
COVER,RADIATOR,R(BLACK)
€ 119.50
49-2
1776029FG030H
ref: 49-2
COVER,RADIATOR,R(WHITE)
€ 119.50
50-1
6866529FG0GFJ
ref: 50-1
TAPE,RADIATOR COVER,R
€ 50.00
50-1
6866529FG0GFJ
ref: 50-1
TAPE,RADIATOR COVER,R
€ 50.00
50-2
6866529FG0GFK
ref: 50-2
TAPE,RADIATOR COVER,R
€ 50.00
50-2
6866529FG0GFK
ref: 50-2
TAPE,RADIATOR COVER,R
€ 50.00
51-1
1777029FG0019
ref: 51-1
COVER,RADIATOR,L(BLACK)
€ 119.50
51-2
1777029FG030H
ref: 51-2
COVER,RADIATOR,L(WHITE)
€ 119.50
52-1
6867529FG0GFJ
ref: 52-1
TAPE,RADIATOR COVER,L
€ 50.00
52-1
6867529FG0GFJ
ref: 52-1
TAPE,RADIATOR COVER,L
€ 50.00
52-2
6867529FG0GFK
ref: 52-2
TAPE,RADIATOR COVER,L
€ 50.00
52-2
6867529FG0GFK
ref: 52-2
TAPE,RADIATOR COVER,L
€ 50.00
